Intel Desktop Board D945GCZ Technical Product Specification
1.5.1.1 Dual Channel (Interleaved) Mode Configurations

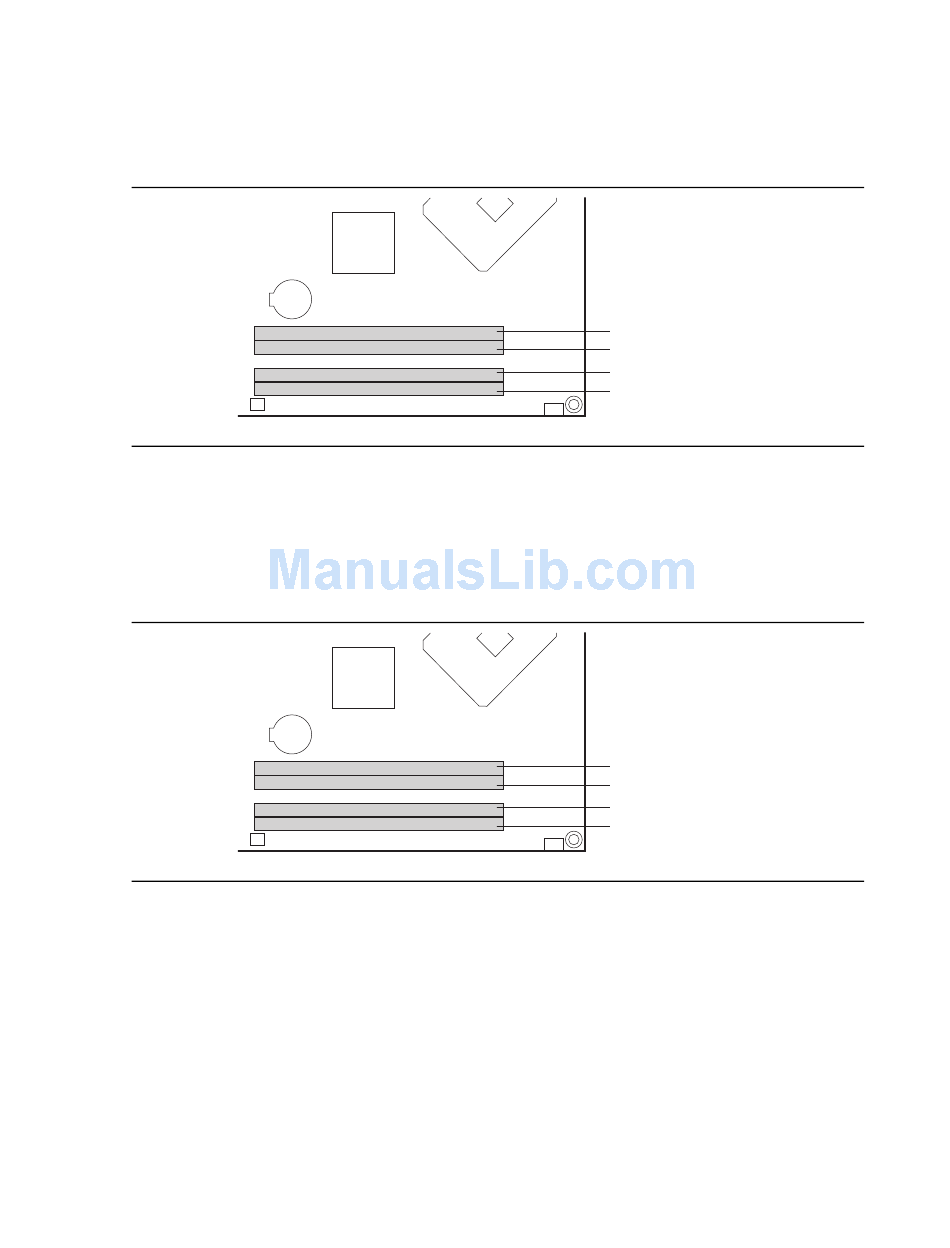

Figure 4 shows a dual channel configuration using two DIMMs. In this example, the DIMM0
(blue) sockets of both channels are populated with identical DIMMs.
Figure 4. Dual Channel (Interleaved) Mode Configuration with Two DIMMs
Figure 5 shows a dual channel configuration using three DIMMs. In this example, the combined
capacity of the two DIMMs in Channel A equal the capacity of the single DIMM in the DIMM0
(blue) socket of Channel B.
Figure 5. Dual Channel (Interleaved) Mode Configuration with Three DIMMs
18
1 GB
1 GB
256 MB
256 MB
512 MB
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
OM17942
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
OM17943
