2.10 Mechanical Considerations

2.10.1 Form Factor

The board is designed to fit into a BTX-form-factor chassis. Figure 25 illustrates the mechanical
form factor of the board. Dimensions are given in inches [millimeters]. The outer dimensions are
10.40 inches by 10.50 inches [264.16 millimeters by 266.70 millimeters].
0.00
10.250
[260.36]
0.00
0.200 2.275
[5.08] [57.79]

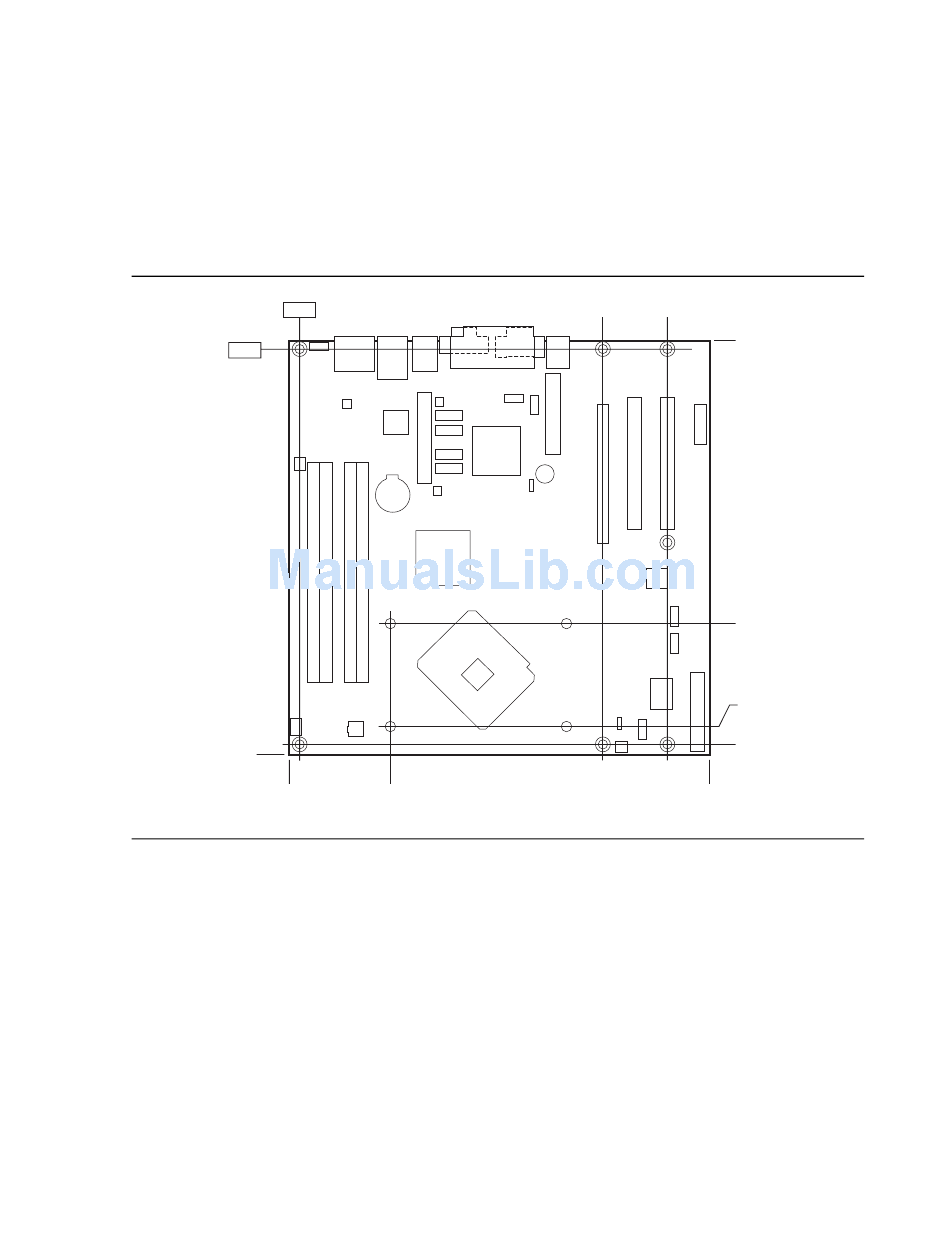

Figure 25. Board Dimensions
Technical Reference
7.550 9.150
[191.77] [232.41]
0.250
[6.35]
10.000
[254.00]
9.550
[242.57]
10.000
[254.00]
10.200
[259.08]
