Dual Channel (Interleaved) Mode Configuration With Four Dimms - Intel BOXD945GCZL Technical Product Specification

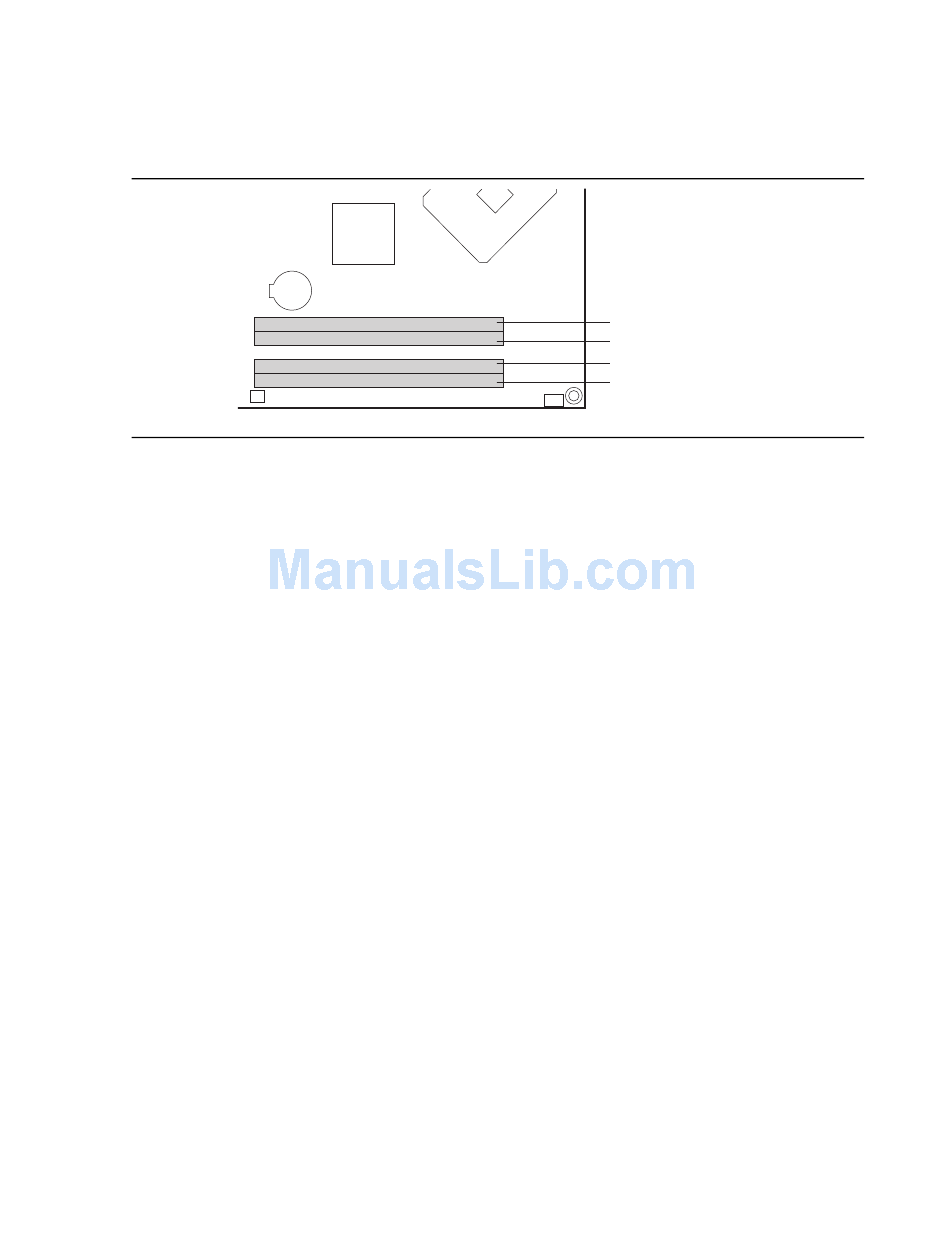

Figure 6 shows a dual channel configuration using four DIMMs. In this example, the combined
capacity of the two DIMMs in Channel A equal the combined capacity of the two DIMMs in
Channel B. Also, the DIMMs are matched between DIMM0 and DIMM1 of both channels.
Figure 6. Dual Channel (Interleaved) Mode Configuration with Four DIMMs
256 MB
512 MB
256 MB
512 MB
Product Description
Channel A, DIMM 0
Channel A, DIMM 1
Channel B, DIMM 0
Channel B, DIMM 1
