Turning On and Off the Power
Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction
and/or damage to speakers and other devices.
* Before switching off the power, lower the volume on each of the
devices in your system and then TURN OFF the devices in the
reverse order to which they were switched on.
1. Make sure that all volume controls on the PM-1 and
connected devices are set to 0.
2. Turn on the all connected device(s).

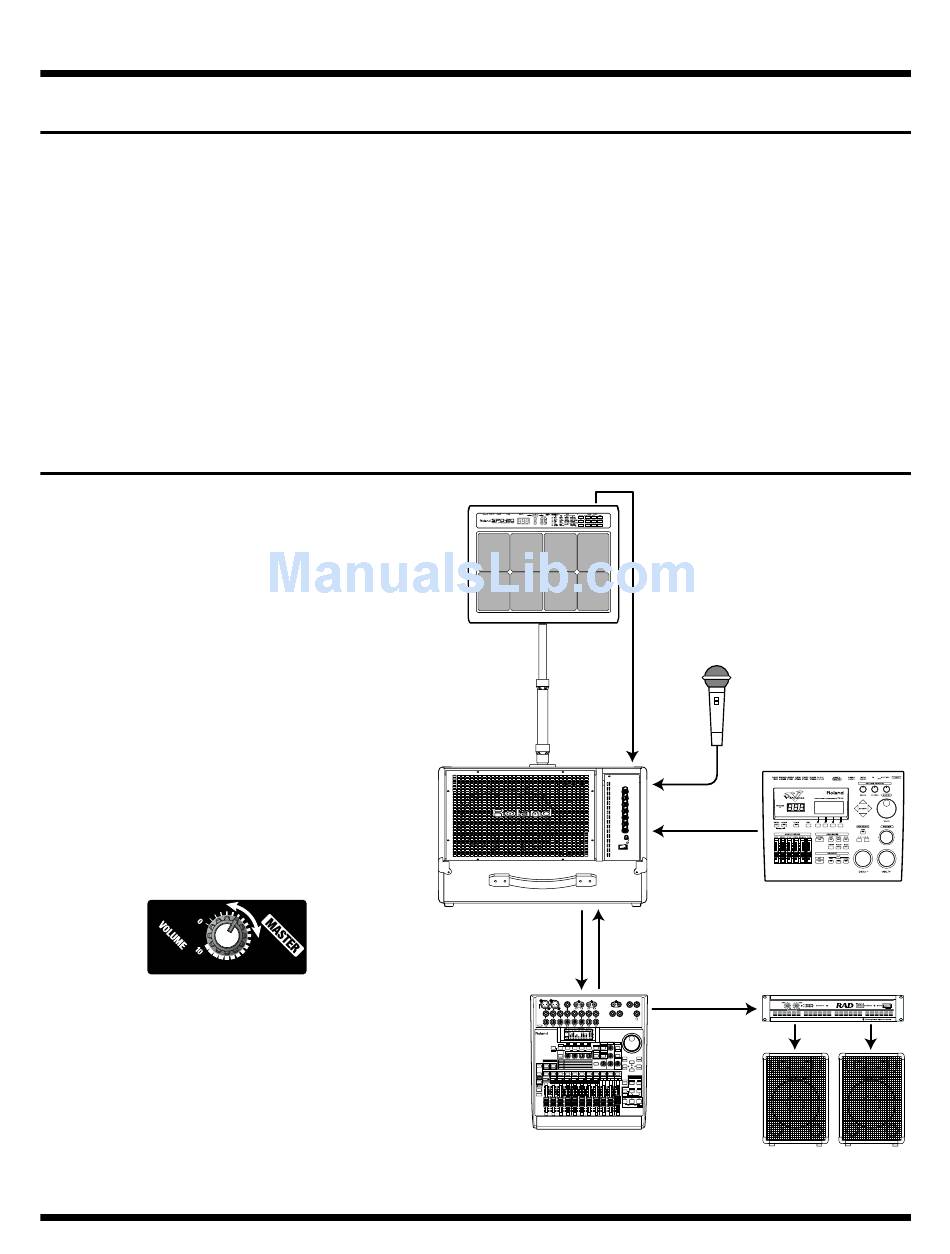

Connection Example with Volume Settings
Here is an example showing how the PM-1 is
connected as a stage monitor, making full use of the
PM-1's mixer and monitor functions.
A mic is input to CH1, which accepts mic level input.
Connect an SPD-20 and drum sound module or other
sound-generating device to the CH2 and CH3 inputs.
Input to CH4 is the talkback from a mixer or other
input, disabling the output to LINE OUT.
Connecting as shown above results in a system that lets
you perform using multiple sound sources
simultaneously, while also allowing the talkback from
the PA to be heard only through the PM-1.
In order to get optimum sound from the PM-1 when
performing, set the volume as described below.
1. Adjust the MASTER VOLUME knob until the
sound in each of the channels is clearly audible,
thereby allowing you to adjust the volume balance.
2. Adjust the individual channel volume knobs until
you obtain the proper volume balance throughout
the channels.
3. Use the EQUALIZER to adjust the tone to your liking.
* If the sound at this point is distorted, lower the
individual channel volume knobs and/or the volume
knobs for devices connected to the input jacks.
4. Adjust the MASTER VOLUME knob until the volume is at the right level.
3. Turn on the PM-1.
4. If a mixer is connected to the LINE OUT jack on the PM-1,
turn on the mixer.
5. Adjust the volume levels for the devices.
* This unit is equipped with a protection circuit. A brief interval
(a few seconds) after power up is required before the unit will
operate normally. For protect from sudden big sound, always
make sure to have the volume level turned down before
switching on power. Even with the volume all the way down,
you may still hear some sound when the power is switched on,
but this is normal, and does not indicate a malfunction.
Output
SPD-20
CH2
LINE OUT
CH4
Monitor
Input
Out
Mixer
Making Connections
Mic
CH1
CH3
Output
Drum Sound Module
Power Amp
Output
Main Speakers
9
