- Page 1 XCD-B/PCIE-ST User Manual Ver. 1.00 All brand names and trademarks are properties of their respective owners. MN2000000042 May/07...
-
Page 2: Features And Benefits
Features and Benefits Compliant with PCI Express Base Specification 1.0a Supports ExpressCard (34/54 Form Factor Module) Package Contents 1 x XCD-B/PCIE-ST ExpressCard Adapter 1 x USB A-A Extension Cable System Requirements PCIe enabled system with an available PCIe slot Windows® 2000/XP/Server 2003 MN2000000042 May/07... -
Page 3: Hardware Description

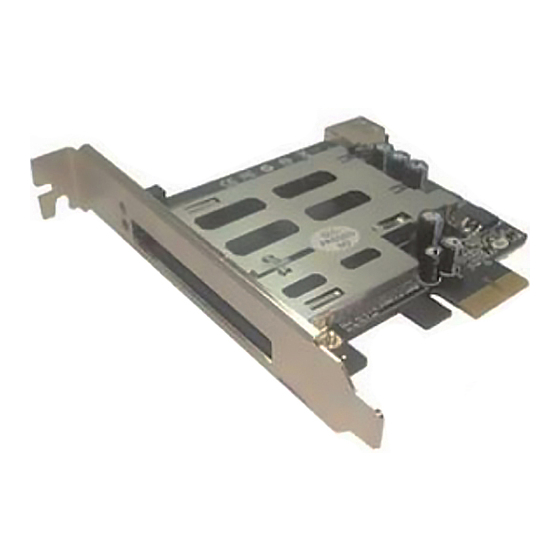

Hardware Description LED: 1.5V or 3.3V power light indicator Jumper Setting (J1): 1: Short 2-3 (default setting) 2: Short 1-2 if PCI-3V3AUX is not available on the PCIe slot (check MN2000000042 May/07... -
Page 4: Hardware Installation
with your motherboard manufacturer if you are unsure). Hardware Installation General instructions for installing the card are provided below. Since the design of your system may vary, refer to your system’s reference manual for further information, if needed. 1. Turn OFF the power to your computer. 2. - Page 5 7. Replace the computer cover and reconnect the power cord. MN2000000042 May/07...
