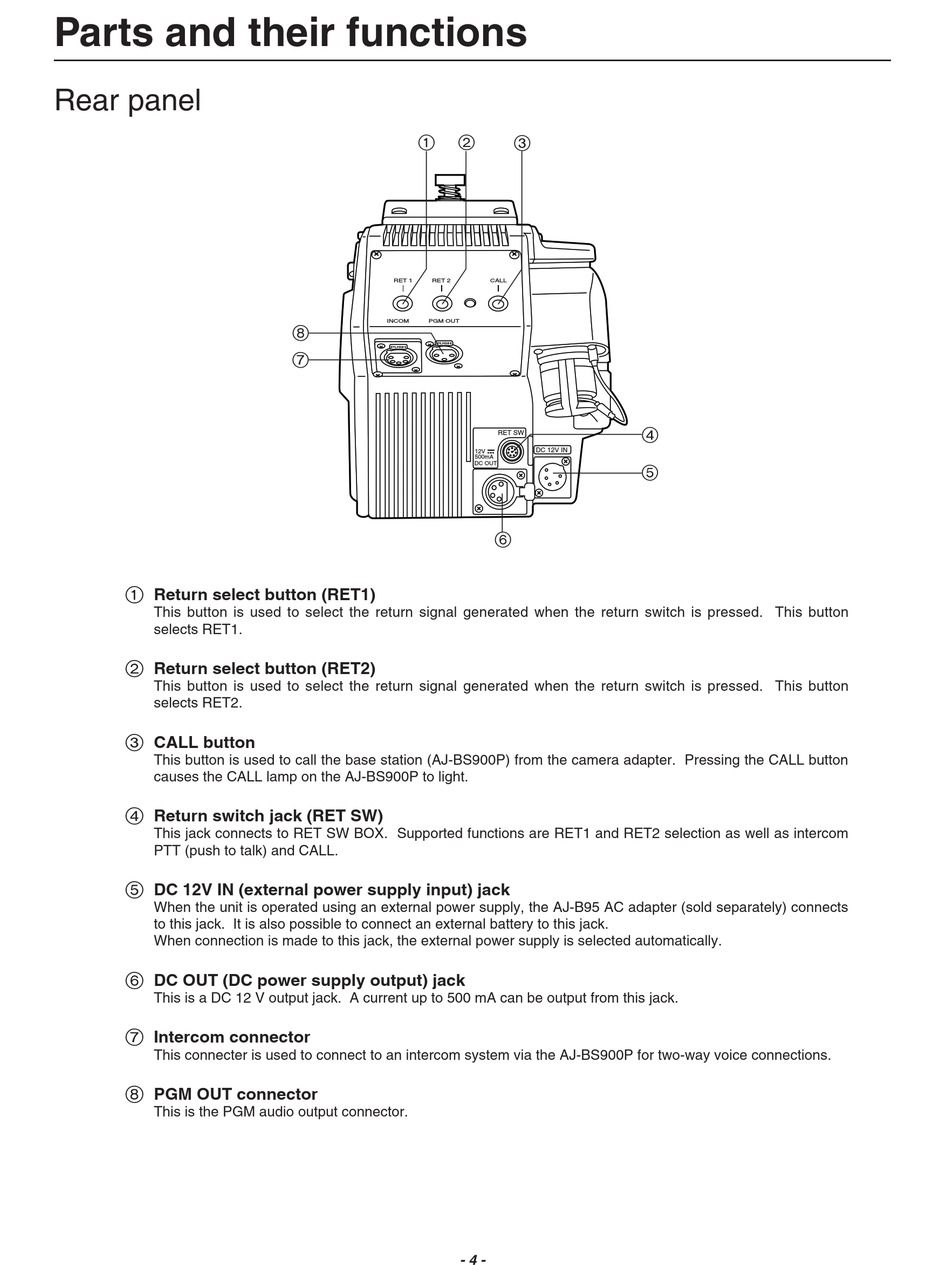

Parts and their functions

Rear panel

1
Return select button (RET1)
This button is used to select the return signal generated when the return switch is pressed. This button
selects RET1.
2
Return select button (RET2)
This button is used to select the return signal generated when the return switch is pressed. This button
selects RET2.
3
CALL button
This button is used to call the base station (AJ-BS900P) from the camera adapter. Pressing the CALL button
causes the CALL lamp on the AJ-BS900P to light.
4
Return switch jack (RET SW)
This jack connects to RET SW BOX. Supported functions are RET1 and RET2 selection as well as intercom
PTT (push to talk) and CALL.
5
DC 12V IN (external power supply input) jack
When the unit is operated using an external power supply, the AJ-B95 AC adapter (sold separately) connects
to this jack. It is also possible to connect an external battery to this jack.
When connection is made to this jack, the external power supply is selected automatically.
6
DC OUT (DC power supply output) jack
This is a DC 12 V output jack. A current up to 500 mA can be output from this jack.
7
Intercom connector
This connecter is used to connect to an intercom system via the AJ-BS900P for two-way voice connections.
8
PGM OUT connector
This is the PGM audio output connector.
1
2
RET 1
RET 2
INCOM
PGM OUT
8
PUSH
PUSH
7
- 4 -
3
CALL
4
RET SW
DC 12V IN
12V
500mA
DC OUT
5
6
