AC Adapter
AW-PS505
Before attempting to connect or operate this product,
please read these instructions completely.

Advertisement

loading

  Also See for Panasonic AW-PS505

Panasonic AW-RP605 Operating Instructions Manual
Panasonic AW-RP605 Operating Instructions Manual 92 pages
Panasonic AW-PS505 Operating Instructions Manual
Panasonic AW-PS505 Operating Instructions Manual 8 pages
Panasonic AW-PS505 Operating Instructions Manual
Panasonic AW-PS505 Operating Instructions Manual 8 pages

  Related Manuals for Panasonic AW-PS505

  Summary of Contents for Panasonic AW-PS505

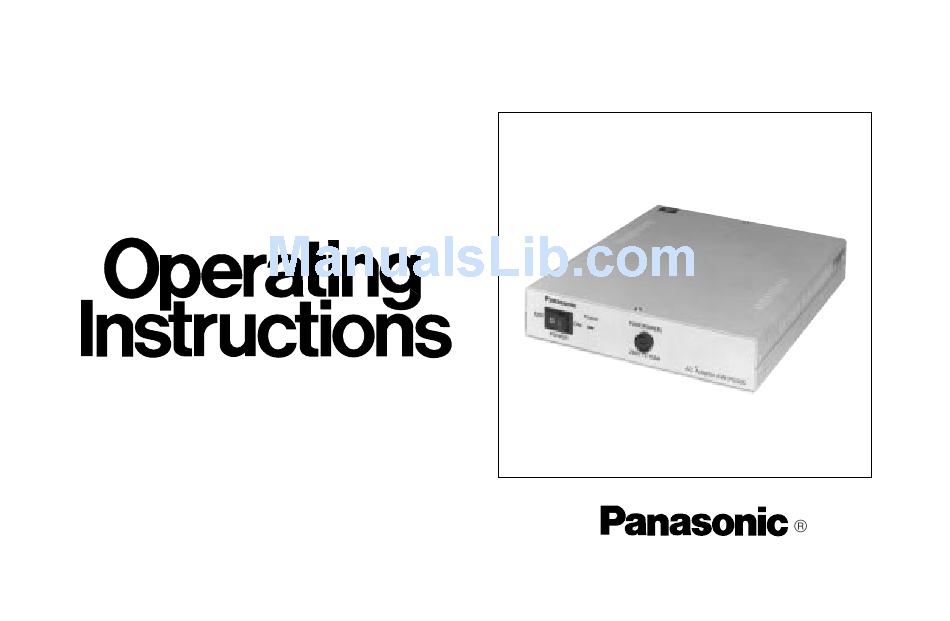

  • Page 1 AC Adapter AW-PS505 Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2 CAUTION For U.S.A Warning: RISK OF ELECTRIC SHOCK This equipment generates and uses radio frequency ener- DO NOT OPEN gy and if not installed and used properly, i.e., in strict accordance with the instruction manual, may cause harmful interference to radio communications. It has been tested CAUTION: and found to comply with the limits for a Class A computing...

  • Page 3: Table Of Contents

    CONTENTS FEATURES ....................................1 PRECAUTIONS .................................... 2 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ...................... 3 CONNECTION ....................................5 SPECIFICATIONS ..................................6 ACCESORIES ....................................6 FEATURES This is the AC adapter for the Multiport Hub AW-HB505.

  • Page 4: Precautions

    PRECAUTIONS • Handle the control panel with care. • Care Dropping the control panel or subjecting it to a strong Pull out the power cable plug, and wipe the control shock can cause a failure or an accident. panel clean with a dry cloth. If it is extremely dirty, dip a cloth into a diluted solution of kitchen detergent, •...

  • Page 5: Major Operating Controls And Their Functions

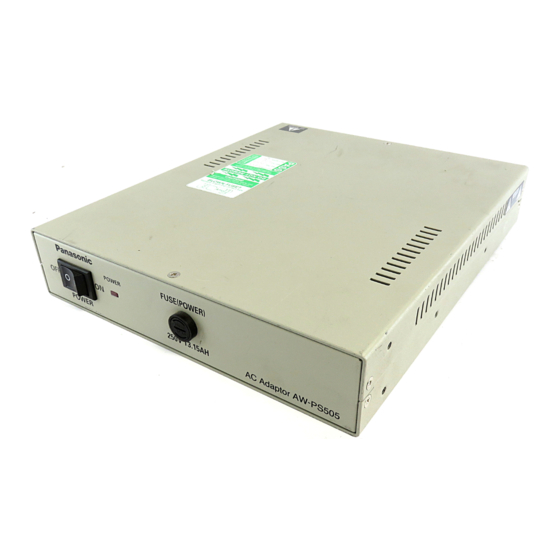

    MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS FRONT PANEL FUSE(POWER) POWER FUSE FUSE 125V 3.15A POWER AC Adaptor PS505 q Power Switch [POWER ON/OFF] e Fuse [FUSE (POWER)] Power is switched on to supply power to the Multiport Power fuse. Use a 125 V, 3.15 A fuse to replace it. Hub when this switch is pressed to the ON position (POWER Indicator lights), and is switched off when the switch is pressed to the OFF position.

  • Page 6: Rear Panel

    REAR PANEL DC 12V OUT AC IN r AC 120V Input Connector [AC IN] (AC 3P Inlet) Connect the supplied AC cable to it. t DC +12V Output Connector [DC 12V OUT] (4P Cannon Connector) Connect it to the DC 12V IN Connector on the Multiport Hub with the supplied DC cable.

  • Page 7: Connection

    CONNECTION • Switch off all the devices before making any connection. • Connect DC 12V OUT Connector t of this adapter to the DC +12V Input Connector on the Multiport Hub AW-HB505 with the supplied DC cable. • Connect the supplied AC cable to the AC 120V Inlet. Plug the AC cable to an AC outlet, and press POWER ON/OFF Switch q of this adapter to the ON position.

  • Page 8: Specifications

    SPECIFICATIONS Power: 120 V AC 60 Hz 0.44A IPower Output: DC12V 2.5A, with over-current protect circuit Operating temperature: –10°C to +45°C (14°F to 113°F) Dimensions: 210(W) x 51(H) x 250(D) mm 8-1/4”(W) x 2”(H) x 9-7/8”(D) kg (5.5 lbs.) Weight: Finish: AV Ivory baking Weight and dimensions indicated are approximate.
  • Page 9 Broadcast & Television Systems Company Division of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 2E-6, Secaucus, NJ 07094 Regional Offices: EASTERN ZONE: 43 Hartz Way, Secaucus, NJ 07094 (201) 348-7620 CENTRAL ZONE: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5200...
