Panasonic AW-PS301 Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

AC Adaptor

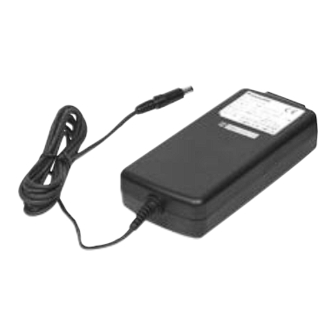

AW-PS301
Before attempting to connect or operate this product,
please read these instructions completely.

Advertisement

loading

  Related Manuals for Panasonic AW-PS301

  Summary of Contents for Panasonic AW-PS301

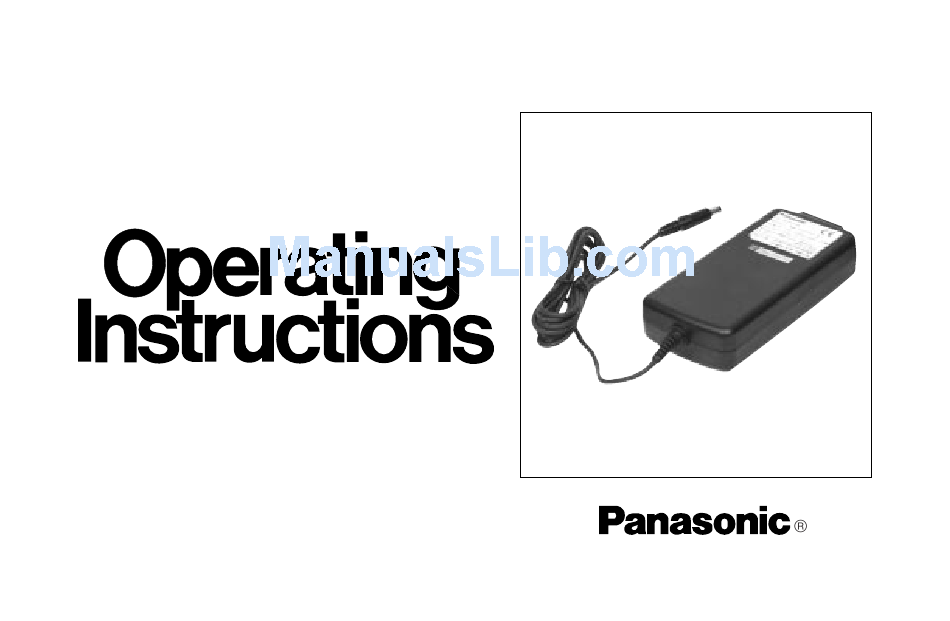

  • Page 1 AC Adaptor AW-PS301 Before attempting to connect or operate this product, please read these instructions completely.
  • Page 2 CAUTION For U.S.A Warning: RISK OF ELECTRIC SHOCK This equipment generates and uses radio frequency ener- DO NOT OPEN gy and if not installed and used properly, i.e., in strict accordance with the instruction manual, may cause harmful interference to radio communications. It has been tested CAUTION: and found to comply with the limits for a Class A computing...
  • Page 3 FEATURES • This AC Adapter is for the Pan/tilt Control Panel and Hybrid Control Panel. Applicable Control Panels: AW-RP301, AW-RP305, AW-RP501, AW-RP505 PRECAUTIONS • Handle the control panel with care. • Install the control panel more than 1 meter away Dropping the control panel or subjecting it to a strong from the monitors.
  • Page 4 CONNECTION q Plug the supplied AC cable into the AC Inlet. w Insert the DC plug into the DC 12V IN Connector of the control panel. e Fasten the DC cord with the cord clamp on the control panel to prevent the DC plug from dis- connecting.
  • Page 5: Specifications

    SPECIFICATIONS Source Voltage: 120 V AC 60 Hz Input Capacity: Power Output: 12V DC, 1.2A Operating temperature: 0°C to +38°C (32°F to 100°F) Dimensions: 65(W) x 138(H) x 30(D) mm, DC cable: 2m, AC cable: 3m 2-9/16”(W) x5-7/16”(H) x 1-3/16”(D) Weight: g (0.57 lbs.) (except for AC cable) Finish:...
  • Page 6 Broadcast & Television Systems Company Division of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 2E-6, Secaucus, NJ 07094 Regional Offices: EASTERN ZONE: 43 Hartz Way, Secaucus, NJ 07094 (201) 348-7620 CENTRAL ZONE: 1707 North Randall Road, Elgin, IL 60123 (847) 468-5200...
