AMX FG1010-09 Quick Start Manual

Autopatch rgbhv to dvi-d converter
Hide thumbs

Advertisement

Quick Links

Overview
This guide contains complete information for the RGBHV to DVI-D Converter when it is
used as a standalone unit. For additional information on using the converter in
conjunction with an AMX AutoPatch Distribution Matrix, see the Instruction Manual for
the router on the AMX AutoPatch Software & Documentation CD or at www.amx.com.

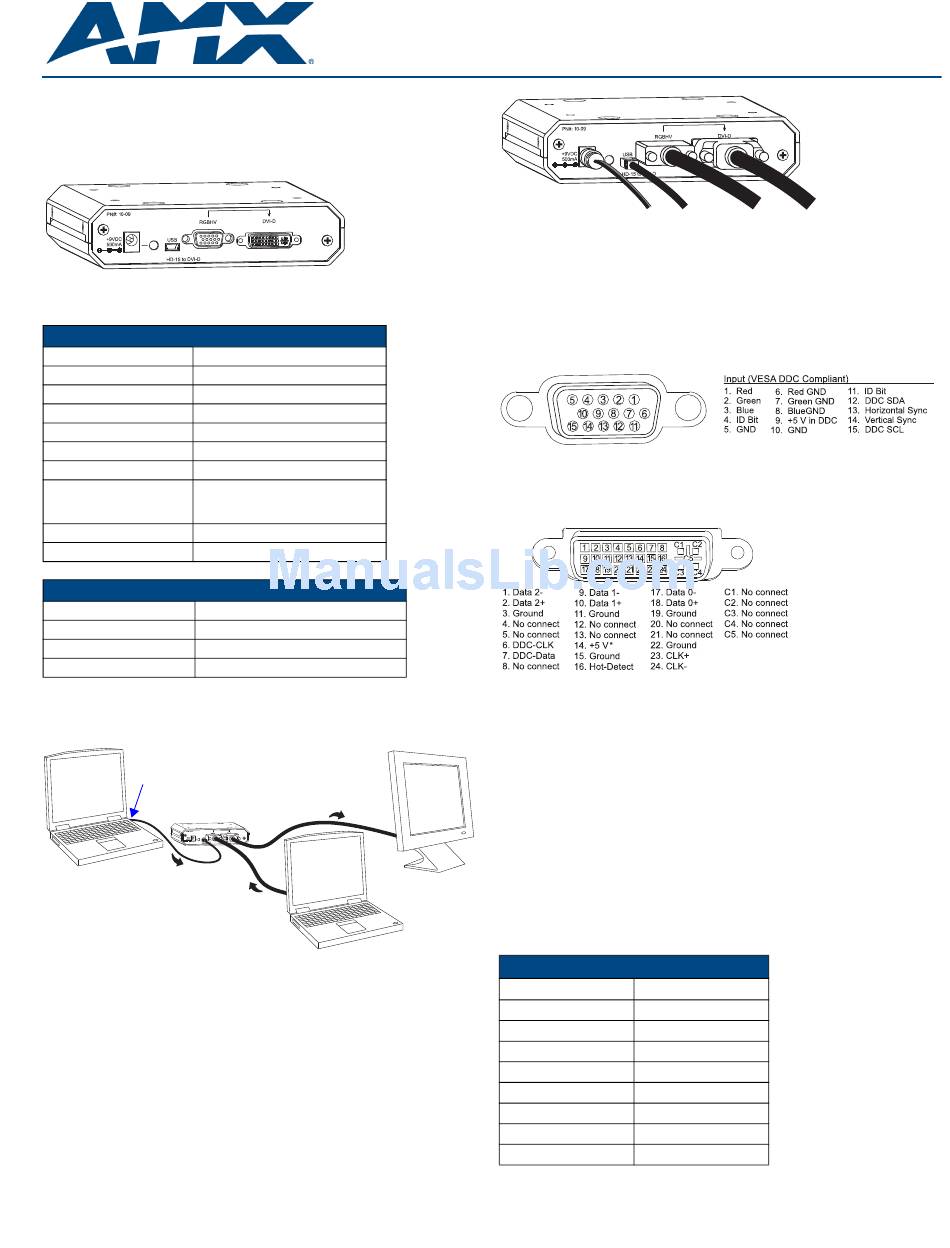

FIG. 1
RGBHV to DVI-D Converter FG1010-09
Specifications
General Specifications
Approvals
CE, UL, cUL
Maximum Resolution
1600x1200 @ 60 Hz
Supported Cable Types
HD-15, DVI-D
Power Consumption (max.)
+9 VDC @ 5 Watts
Power Connector
2.1 mm DC power jack
Humidity
0 to 90% non-condensing
Operational Temperature
32° - 110° F (0° - 43° C)
Dimensions
5.22 in. (13.26 cm) depth
5.82 in. (14.78 cm) width
1.42 in. (3.61 cm) height w/out feet
Weight
Approximately 1.5 lb. (0.68 kg)
DVI Output Specification
DVI-D 1.0 (single link)
Video Specifications
RGB Input Level
1 Vpp (max.)
HV Sync Input Level
TTL compatible
RGB Input Impedance
75 ohms
DDC/EDID Support
Provided by converter
System Setup
A typical setup using an RGBHV to DVI-D Converter as a standalone unit is illustrated
in FIG. 2.
USB connection
for setup only
Control PC
FG1010-09
FIG. 2
Typical setup for an RGBHV to DVI-D Converter
Converter Installation
Before installing in a permanent location, we suggest placing the equipment close
together so the Control PC and the Destination Monitor can be seen simultaneously
during fine tuning.
Important: Always use a UL approved power source. Check the power source's
documentation for information specific to that power source.
To attach connectors & power to the converter:
1.
Plug the power cord into the power jack on the converter and into the power
source (FIG. 3).
2.
Attach one end of the USB (Mini-B) cable to the running Control PC (see the
"Equipment & Requirements" section in the next column) and the other end to
the converter (FIG. 3). Windows should recognize the new device as an HID
device and install default drivers.
AutoPatch RGBHV to DVI-D
Source PC
Destination
Monitor
Power
USB (Mini-B)
FIG. 3
Attach connectors & power to converter
3.
Attach one end of the HD-15 cable (pinout in FIG. 4) to the Source PC and the
other end to the converter.
4.
Attach one end of the DVI-D cable (pinout in FIG. 5) to the Destination Monitor
and the other end to the converter.
Converter's HD-15 Pinout
The HD-15 connector on the converter uses the pinout in FIG. 4.
FIG. 4
HD-15 input pinout for converter
Converter's DVI-D Pinout
The DVI-D connector on the converter uses the pinout in FIG. 5.
FIG. 5
DVI-D output pinout for converter
* The +5 V on pin 14 will supply a maximum of 55 mA.
Equipment & Requirements for Video Adjustment with Wizard
The RGB-DVI Wizard software (provided on CD) must be used to configure RGBHV to
DVI-D converters. One of the provided preset configuration files can be downloaded or
a custom one can be created and downloaded. The factory default configuration is
1024x768 at 60 Hz. Once a new configuration is selected or is created and saved, it
becomes the default.
Control PC with Monitor (for installation only)
®
Windows 2000
or Windows XP
USB 1.1 controller and port
Runs RGB-DVI Wizard, which adjusts configuration of display settings
Source PC (or any other RGB video source)
Equipped with a video card that supplies analog RGBHV at one of the EDID supported
resolutions listed (determine which resolution before attempting to adjust video display;
see the reverse for directions).
Supported Resolutions & Refresh Rates
Resolution
Refresh Rate
640x480
60 - 85 Hz
800x600
60 - 85 Hz
1024x768 (factory default)
60 - 85 Hz
1152x864
60 - 85 Hz
1280x768
60 - 85 Hz
1280x960
60 - 85 Hz
1280x1024
60 - 75 Hz max.
1600x1200
60 Hz max.
Note: Other resolutions may be supported; try the directions for "Specialized
Resolution Adjustments" and for "Fine Tune Adjustments" on the reverse.
Quick Start Guide
Converter
HD-15
DVI-D
®
, 2 MB free disk space, 15 MB RAM,
