Alliance Laundry Systems UW100VV Operation/Programming Manual
Pocket hardmount variable-speed v-series microcomputer
Hide thumbs
Also See for UW100VV:
- Programming manual (34 pages) ,
- Operation & maintenance manual (30 pages)
Table of Contents
Advertisement
Quick Links
Washer-Extractors
NOTA: El manual en
español aparece después
del manual en inglés.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Pocket Hardmount
V-Series Microcomputer
Models UW100VV and UW125VV
www.comlaundry.com
Variable-Speed
For Designs 1-4
Part No. F232123R3
March 2006
Advertisement
Table of Contents
Related Manuals for Alliance Laundry Systems UW100VV
Summary of Contents for Alliance Laundry Systems UW100VV

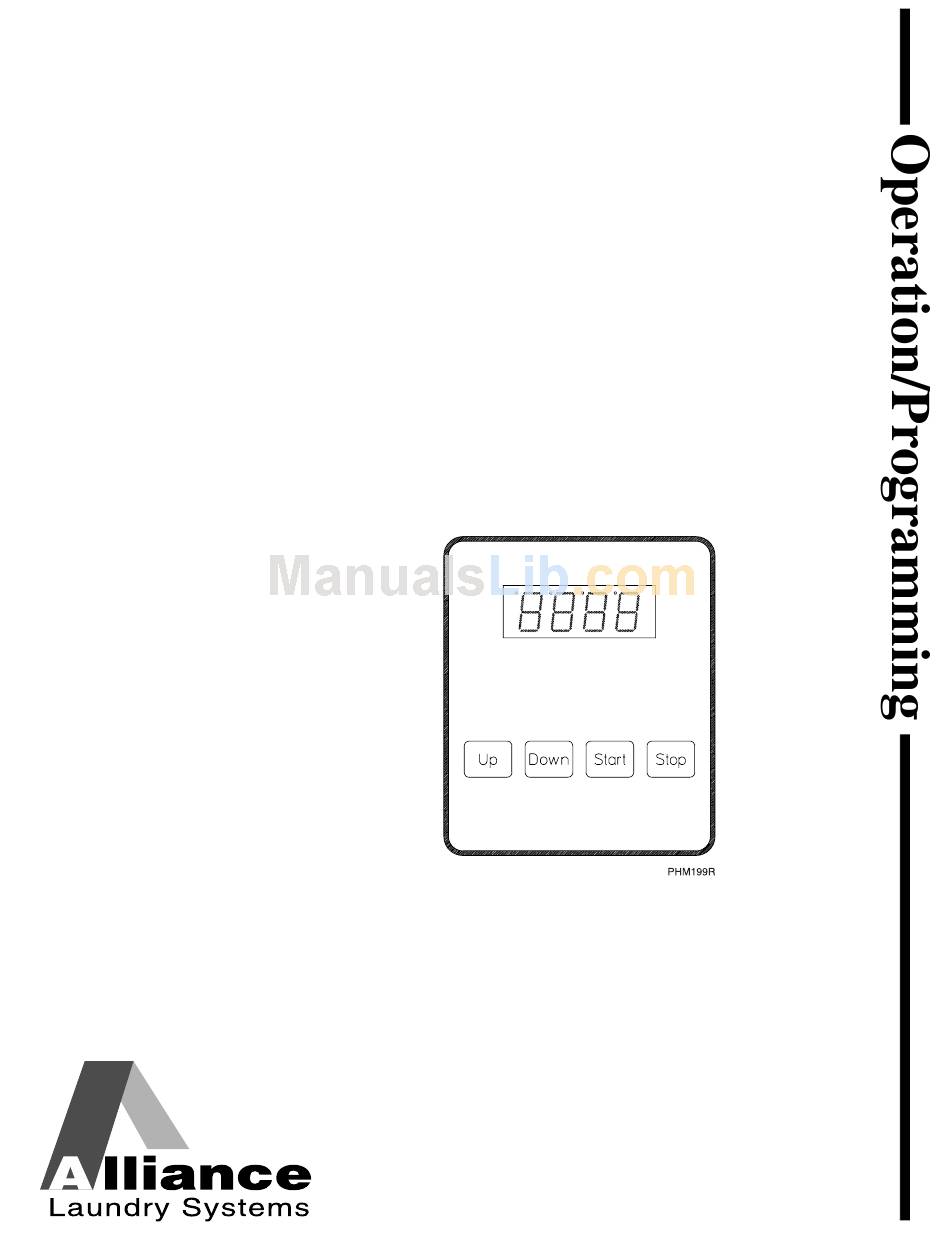

- Page 1 Washer-Extractors Models UW100VV and UW125VV NOTA: El manual en español aparece después del manual en inglés. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Pocket Hardmount Variable-Speed V-Series Microcomputer For Designs 1-4 www.comlaundry.com...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety... Key to Symbols... - Page 4 Test Cycle ... 25 Cycle Segment Charts... 27 V-Computer Cycle Charts ... 31 Cycle Programming Worksheet ... 37 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT F232123...
- Page 5 Do not leave children unattended while the machine door is open. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety This machine must be installed, adjusted, and serviced by qualified electrical maintenance personnel familiar with the construction and operation of this type of machinery.
-
Page 6: Key To Symbols
Guards should always be in place when the machine is in operation. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT This warning symbol indicates the presence of possibly dangerous chemicals. Proper precautions should be taken when handling corrosive or caustic materials. -
Page 7: Safety Decals
If questions regarding safety arise, contact the factory immediately. Use factory-authorized spare parts to avoid safety hazards. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT... -
Page 8: Operator Safety
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safe Operating Environment Safe operation requires an appropriate operating environment for both the operator and the machine. If questions regarding safety arise, contact the factory immediately. -
Page 9: Machine Location
Do not bypass any safety devices. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Input and Output Services Water Pressure. Best performance will be realized if water is provided at a pressure of 30 –... -
Page 10: Ac Inverter Drive
AC inverter drive. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Misuse Never use this machine for any purpose other than washing fabric with water. -
Page 11: Operation
We reserve the right to make changes at any time without notice. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Customer Service If literature or replacement parts are required, contact... - Page 12 Drawings: ETL Listed Conforms To ANSI/UL Std. 1206, 3rd Ed Certified To CAN/CSA Std. C22.2 No.53-1968 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Model Number Familiarization Guide Sample Model Number: UW100VVXU40001 EXAMPLE OF NAMEPLATE Figure 1...
-
Page 13: Machine Familiarization Guide
Supply Valve Box Supply Dispenser Door Handle Door Box Door Latch Extension Arm Door Latch F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT and identifies the major operational features of the machine. Start Stop Down P005I... -
Page 14: Theory Of Operation
As a fail-safe measure, an overtravel limit switch is installed. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The machine uses an AC inverter drive control which provides five motor speeds using a single motor. The... -
Page 15: Keypad
Used to stop a cycle. Table 1 F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Conditions Monitored by the Computer Door – The computer continuously monitors the open/locked status of the door. If it detects... - Page 16 * Display indications separated by a slash represent a flashing display. ** For UW100VV and UW125VV models, the washer-extractor will operate at normal wash speed regardless of the speed settings. † This occurs only in the TEST cycle and only if the AC inverter drive balance detection is used. If the AC inverter drive balance detection is not used, this will NOT appear during the TEST cycle (note, there are two types of balance systems).
-
Page 17: Start-Up
F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT When loading is complete, ensure that all fabric is inside the basket. Then close and lock the door by rotating the door handle clockwise until the door handle is horizontal. -
Page 18: Cycle Execution
“STOP” and “FILL” and sound the on-board beeper for ten seconds. The computer will then initiate the stop routine. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Wash As soon as water level is reached (and any programmed temperature is reached), the displayed time begins counting down at one-second intervals. -
Page 19: Drain
If the spin is at the end of the cycle, the computer begins the stop routine. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Stop Routine When the computer concludes the wash cycle or when the Stop key is pressed while a cycle is in progress, the computer goes into the stop routine. -
Page 20: Balance Detection
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Motor Thermal Overload Indicator If the machine is equipped with a small indicator lamp... -
Page 21: Programming
Program Mode, pay careful attention to the programming instructions provided in this manual. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Programming Key Functions in Program Mode Up – The Up key is used to increase cycle numbers (1 through 30) and other numerical values such as times or temperatures (when creating wash formulas). -
Page 22: Degrees Displayed In Fahrenheit Or Celsius
Also remove the input power to the drive. NOTE: If this step is not followed, damage can occur to the calibration temperature probe. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NEVER insert hands or objects into basket until it has completely stopped. -
Page 23: Auxiliary Heat
If “noCL” is selected, this feature is disabled. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Cycle Count To display the current cycle count, press the Start key while the display is showing the temperature in the sump. -
Page 24: Cycle Options
30 cycles. When “Ag 3” or “Ag 4” is in effect, there is no agitation during the fill. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Agitation Speed If “AgSn” or “AgSL” is selected, the machine will default to normal wash speed regardless of the setting. - Page 25 Set this value to zero to skip the segment. Press the Start key. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: The computer does not count down the remaining cycle time during fills, drains, cool- down, or prior to first achieving the programmed heat temperature when heating.
- Page 26 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 10. Use the Up or Down key to select the desired drain option. If “drAI” is selected, the machine will drain after the segment time has elapsed.
-
Page 27: Test Cycle
F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT g. The auxiliary heat output is energized, provided that the water level switch indicates that at least low water level is present. - Page 28 The computer will then proceed to step v. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT v. The cylinder accelerates to low spin speed.
-
Page 29: Cycle Segment Charts
† This value is not available when temperature-controlled fill and auxiliary heat setup options are disabled. ‡ If “nodr” is selected, the computer skips the spin step and goes on to the next segment. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Segment 1 (PreWash) Instructions Use Up or Down key to change. - Page 30 † This value is not available when temperature-controlled fill and auxiliary heat setup options are disabled. ‡ If “nodr” is selected, the computer skips the spin step and goes on to the next segment. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Segment 2 (Wash) Instructions Use Up or Down key to change.
- Page 31 ‡ If “nodr” is selected, the computer skips the spin step and goes on to the next segment. F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Segments 3 – 10 (Fills 1 – 8) Instructions Use Up or Down key to change.
- Page 32 ***“SUP5” and “SUP6” can be selected only if the “SUP5”/“AFIL” setup option is set to “SUP5.” † This value is not available when temperature-controlled fill and auxiliary heat setup options are disabled. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Segment 11 (Fill 9) Instructions Use Up or Down key to change.
-
Page 33: V-Computer Cycle Charts
Time (Min) Water Warm Level Supply Temp (F) Drain DrAI Spin (Sec) F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT V-Computer Standard OPL Cycles Permanent Cotton Permanent Press Terrycloth Press Medium Soil Medium Soil Heavy Soil... - Page 34 Fill 9 Time (Min) Water Warm Level Supply Temp (F) Drain Spin SPn3 Spin (Min) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Permanent Cotton Permanent Press Terrycloth Press Medium Soil Medium Soil Heavy Soil Warm...
- Page 35 Warm Level High High Supply Temp (F) Drain DrAI DrAI Spin (Sec) F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Personals Rags Reclaim with Heavy Soil Bleach Ag 1 Ag 1 Ag 1 AgSn AgSn...
- Page 36 Time (Min) Water Level Supply Temp (F) Drain Spin Spin (Min) NOTE: Preprogrammed cycles 17 – 20 are blank. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Personals Rags Reclaim with Heavy Soil Bleach Warm Warm...
- Page 37 Medium Medium Medium Supply Temp (C) Drain DrAI DrAI DrAI Spin (Sec) F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT V-Computer Export OPL Cycles Permanent Normal Normal Press 60°C 40°C 90°C (PreWash) (PreWash) Ag 1...
- Page 38 Level Medium Medium Medium Supply Temp (C) Spin SPn3 SPn3 SPn3 Spin (Min) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT V-Computer Export OPL Cycles (Continued) Permanent Normal Normal Press 60°C 40°C 90°C (PreWash) (PreWash) Cold...
-
Page 39: Cycle Programming Worksheet
Spin (Sec) Fill 7 Time (Min) Water Level Supply Temp Drain Spin (Sec) F232123 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT PreWash Time (Min) Water Level Supply Temp Drain Spin (Sec) Fill 2 Time (Min)
