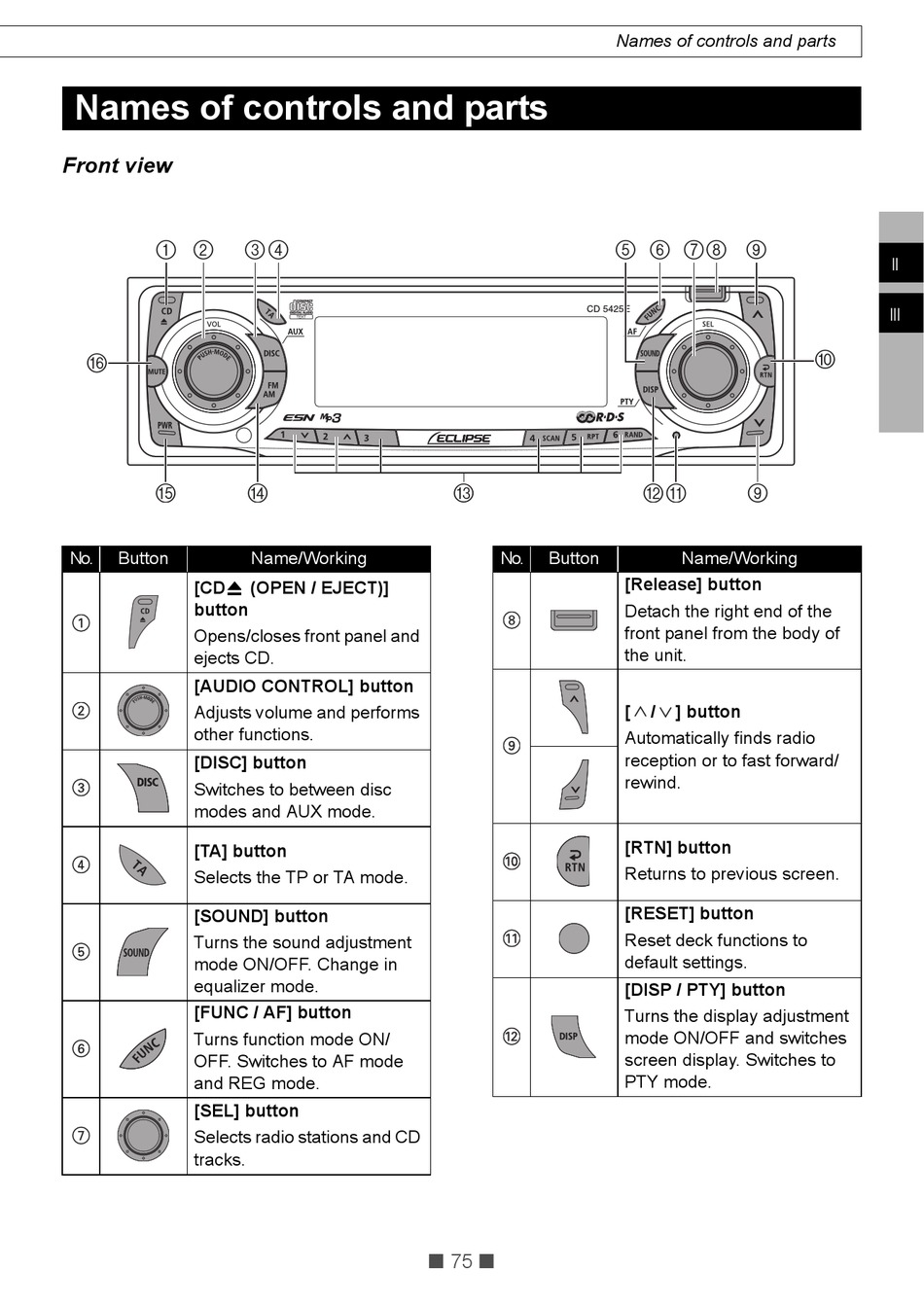

Names of controls and parts

Front view

1 2
F
E
No. Button
[CD
button
Opens/closes front panel and
ejects CD.
[AUDIO CONTROL] button
Adjusts volume and performs
other functions.
[DISC] button
Switches to between disc
modes and AUX mode.
[TA] button
Selects the TP or TA mode.
[SOUND] button
Turns the sound adjustment
mode ON/OFF. Change in
equalizer mode.
[FUNC / AF] button
Turns function mode ON/
OFF. Switches to AF mode
and REG mode.
[SEL] button
Selects radio stations and CD
tracks.
3 4
D
Name/Working
(OPEN / EJECT)]
Names of controls and parts
5 6 7
C
No. Button
[Release] button
Detach the right end of the
front panel from the body of
the unit.
[
Automatically finds radio
reception or to fast forward/
rewind.
[RTN] button
Returns to previous screen.
[RESET] button
Reset deck functions to
default settings.
[DISP / PTY] button
Turns the display adjustment
mode ON/OFF and switches
screen display. Switches to
PTY mode.
75
8 9
?
B A 9
Name/Working
/ ] button
II
III
