I/O Shield; I/O Shield Dimensions - Intel BLKD945GCCR Specification

Technical Reference
2.9.2

I/O Shield

The back panel I/O shield for the board must meet specific dimension and material
requirements. Systems based on this board need the back panel I/O shield to pass
certification testing. Figure 18 shows the I/O shield dimensions. Dimensions are
given in millimeters [inches]. The figures also indicate the position of each cutout.
Additional design considerations for I/O shields relative to chassis requirements are
described in the ATX specification.
NOTE
The I/O shield drawing is for reference only. I/O shields compliant with the ATX
chassis specification are available from Intel.

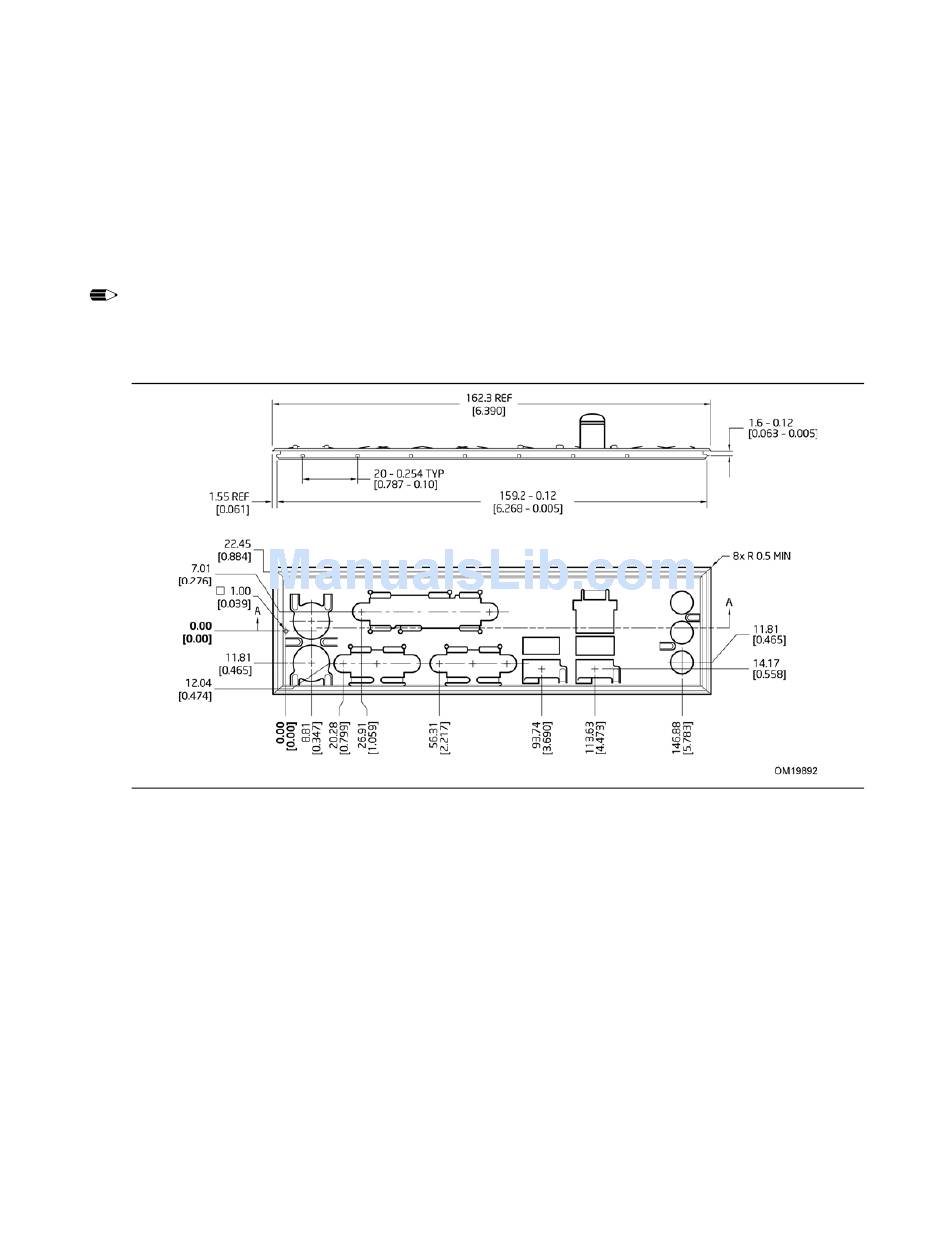

Figure 18. I/O Shield Dimensions
61
