Intel Desktop Board D945GCCR Technical Product Specification
1.10.4
Thermal Monitoring

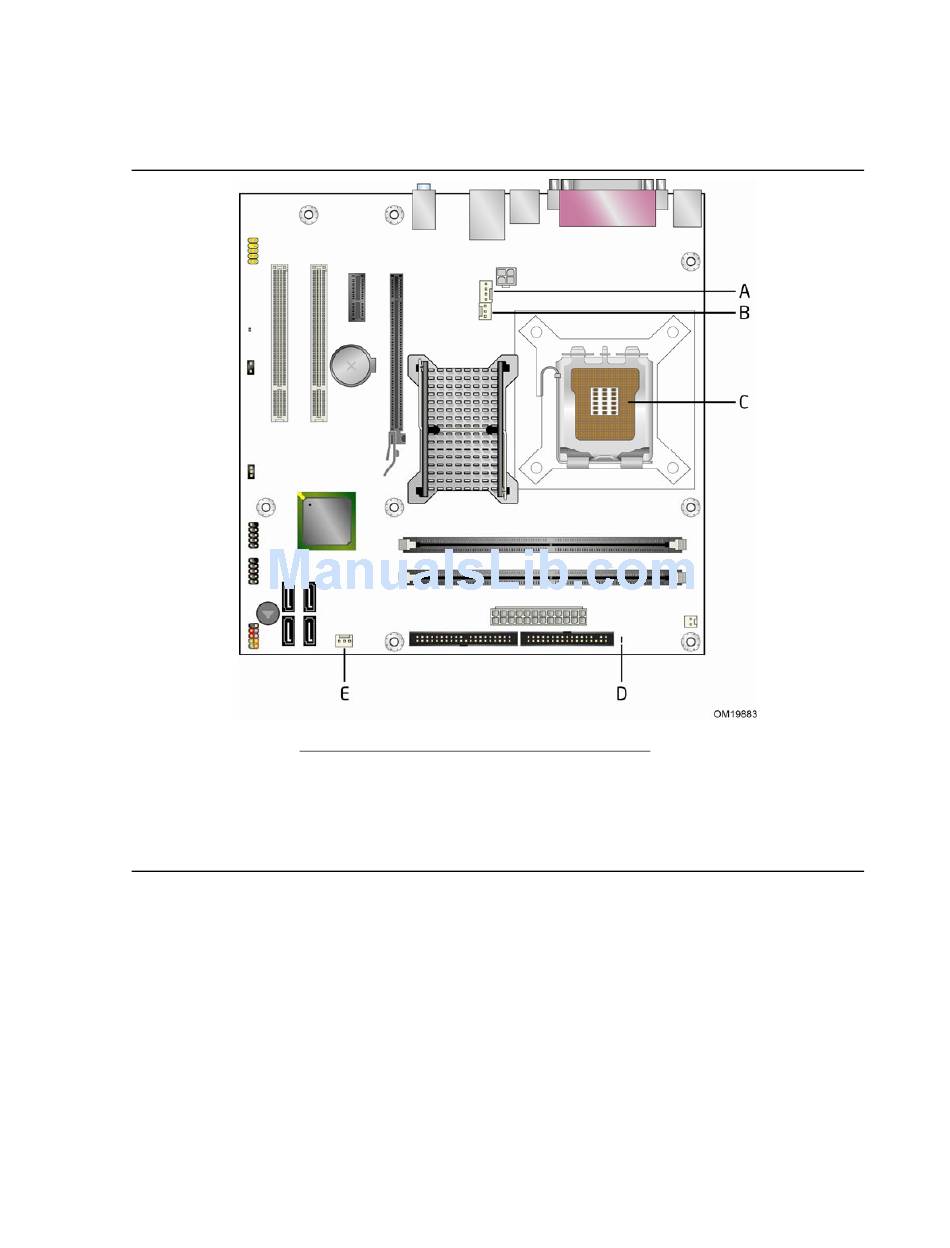

Figure 9 shows the location of the sensors and fan headers.
32
Item
Description
Processor fan
A
Rear chassis fan
B
Thermal diode, located on processor die
C
Remote ambient temperature sensor
D
Front chassis fan
E
Figure 9. Thermal Sensors and Fan Headers
