1.4.1.1 Dual Channel (Interleaved) Mode Configurations

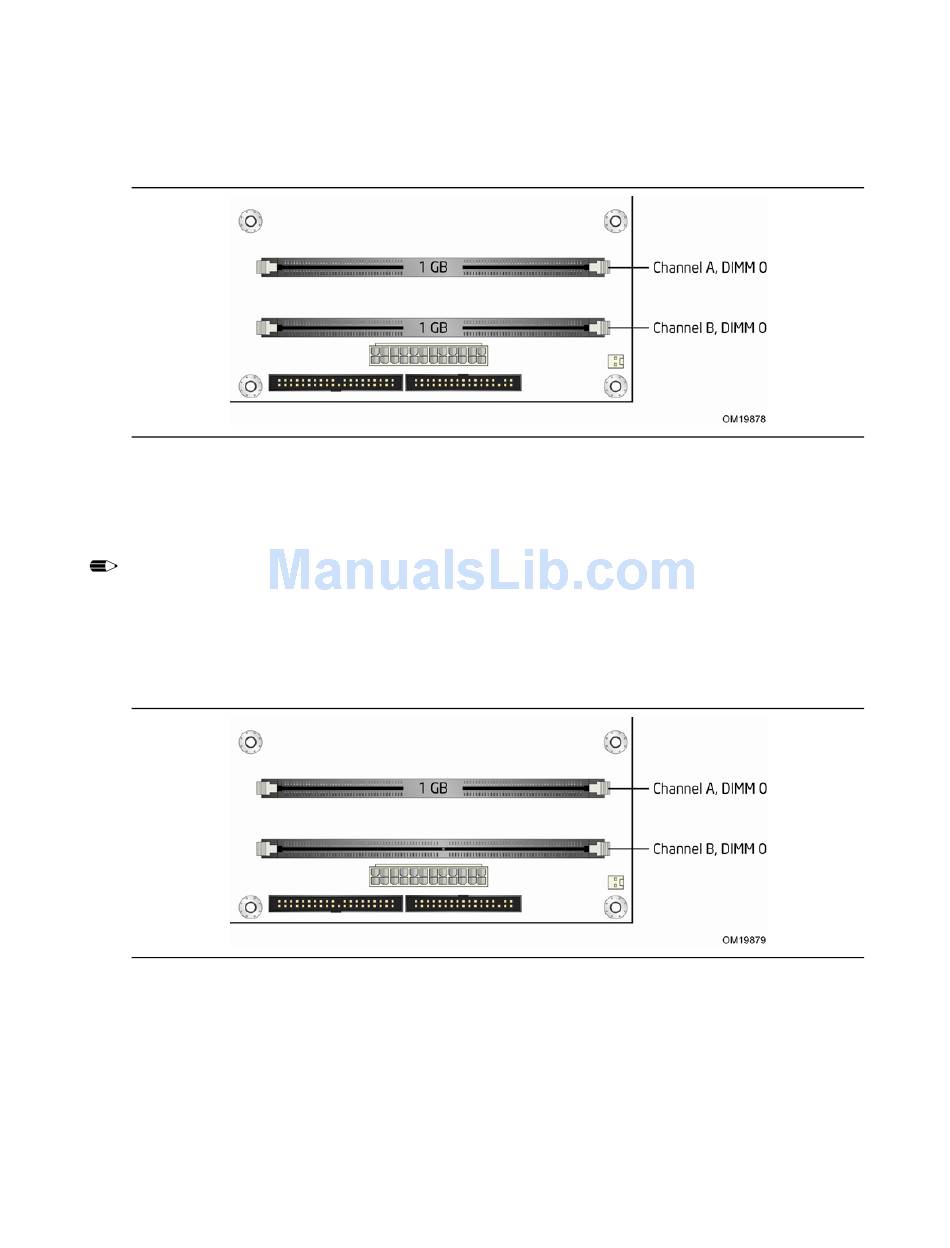

Figure 4 shows a dual channel configuration using two DIMMs. In this example, the
DIMM sockets are populated with identical DIMMs.
Figure 4. Dual Channel (Interleaved) Mode Configuration with Two DIMMs
1.4.1.2 Single Channel (Asymmetric) Mode Configurations
NOTE
Dual channel (Interleaved) mode configurations provide the highest memory
throughput.
Figure 5 shows a single channel configuration using one DIMM. In this example, only
the Channel A is populated. Channel B is not populated.
Figure 5. Single Channel (Asymmetric) Mode Configuration with One DIMM
