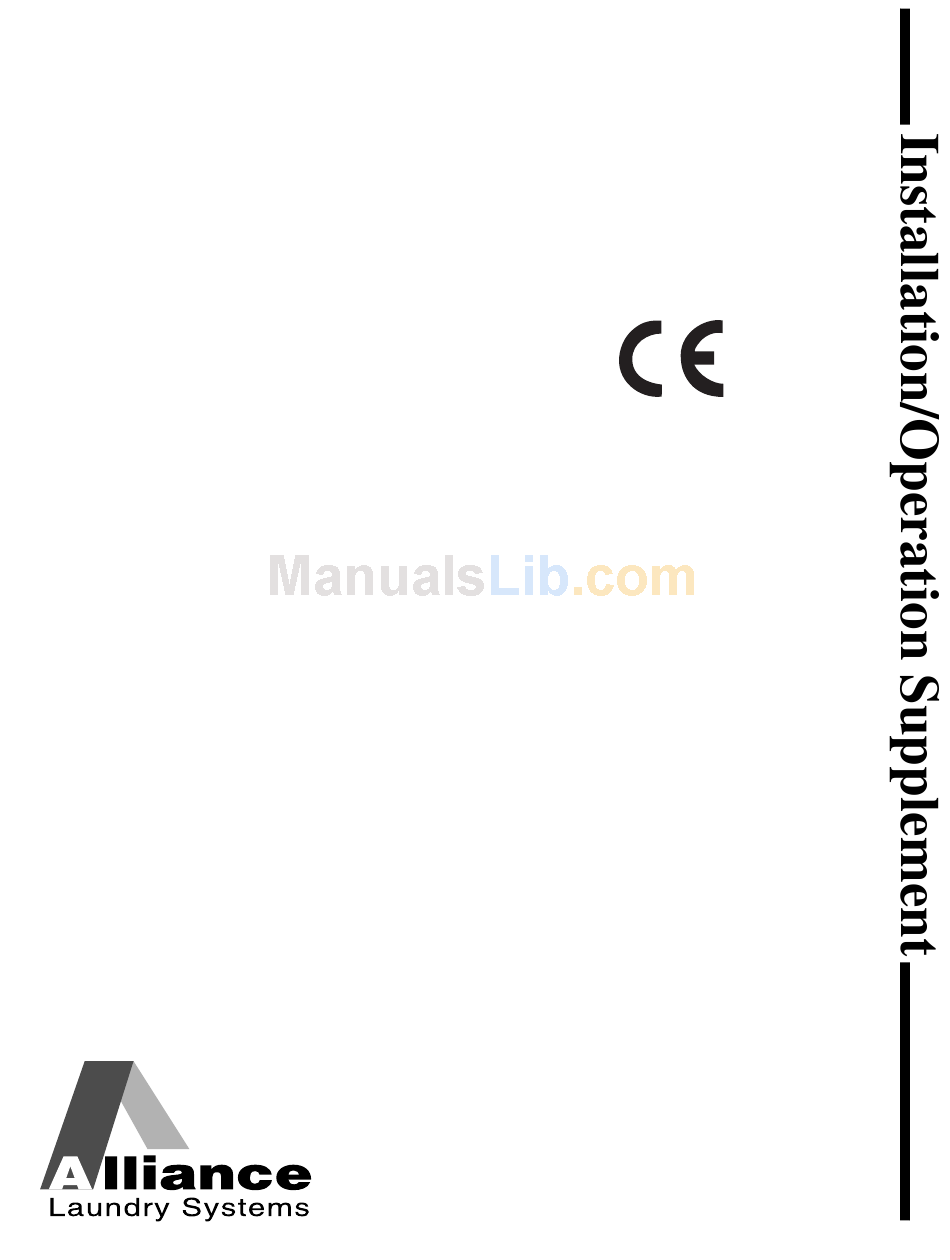

- Page 1 Washer-Extractors Cabinet Freestanding Coin Models Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 9002062R2 www.comlaundry.com July 2008...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 9002062 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction... Model Identification ... -
Page 4: Model Identification
Information in this manual is applicable to these models: NX18BVPA6 NX18BVXM7 NX18BVPA7 NX30BVPA6 NX18BVQA6 NX30BVPA7 NX18BVQA7 NX30BVQA6 NX18BVXA6 NX30BVQA7 NX18BVXA7 NX30BVXA6 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction NX30BVXA7 NX30BVXM7 SX18BVPA7 SX18BVQA7 SX18BVXA7 SX18BVXM7 SX30BVPA7 SX30BVQA7 SX30BVXA7 SX30BVXM7 9002062... -
Page 5: Explanation Of Safety Messages
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 Installation/Operation Supplement Important Safety Instructions WARNING... - Page 6 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 20. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
-
Page 7: Safety Decals
Failure to do so may result in conditions which can produce serious injury, death and/or property damage. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 Installation/Operation Supplement Be careful around the open door, particularly when loading from a level below the door. -
Page 8: Operator Safety
Excessively high water level is evident. c. Machine is not connected to a properly grounded circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Do not bypass any safety devices in the machine. Never operate the machine with a bypassed or disconnected balance system. -
Page 9: Specifications And Dimensions
Height of door bottom above floor Water Consumption Average water consumption per cycle Power Consumption Average power used per cycle © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 Installation/Operation Supplement General Specifications 660 mm (26 in.) 1038 mm (40.9 in.) - Page 10 Vibration safety switch installed Electrical Heating (International Models Only) Total electrical heating capacity Electrical heating elements Electrical heat element size © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 1 HP (0.75 kW) 10-50 RPM 85 RPM 250-1000 RPM 0.03-0.74 Gs...
- Page 11 633 mm (27.7 in.) Hot Water Connections 19 mm (.75 in.) Power Input Emergency Stop Button Ventilation Tub © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 365 mm (14.4 in.) 65 mm (2.6 in.) 69 mm (2.7 in.)
- Page 12 Hot Water Connections 19 mm (.75 in.) Cold Water Inlet (required) 19 mm (.75 in.) Power Input Emergency Stop Button © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 88 mm (3.5 in.) 475 mm (18.7 in.)
-
Page 13: Dimensional Clearances
(side) Minimum front clearance (door swing) (16.5 in.) Table 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 Installation Machine Foundation Thoroughness of detail must be stressed with all foundation work to ensure a stable unit installation, eliminating possibilities of excessive vibration during extract. -
Page 14: Mounting Bolt Installation (If Required)
Bolt Washer Anchor Bolt/Plug Figure 3 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT After the concrete has cured and the anchors are installed, proceed as follows: 1. Place the washer-extractor adjacent to the foundation. Do not attempt to move it by pushing on the sides. -
Page 15: Removing The Transport Block
Figure 4 IMPORTANT: Do NOT lift motor by the pulley. 4. Remove the panel braces. Refer to Figure 5. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 IMPORTANT: Do NOT remove panel braces. They may be located in either the front or on the side and rear of the machine. - Page 16 380-415 50/60 200-240 50/60 200-240 50/60 380-415 50/60 200-240 50/60 200-240 50/60 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Electrical Specifications Standard 3+N+PE Not available 3+PE Not available 2/3+PE 3+N+PE Not available 3+PE Not available...
-
Page 17: Control Panel
ST ART DOOR DOMESTIC MODELS Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 Operation NORMAL RM RESS WARM NORMAL PERM PRESS WARM COLD... -
Page 18: Operating Instructions
NOTE: Underloading can cause out-of-balance conditions that can shorten machine life. Figure 8 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4. Close door by pushing door handle towards machine. Refer to Figure 9. 5. The default wash cycle will display. - Page 19 Detergent Bleach Softener Figure 11 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062 8. Add coins to machine. As each coin is added, the vend counts down to the amount remaining. Refer to Figure 11.
-
Page 20: Disposal Of Unit
MIX1N purchased. Figure 12 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9002062...
