Alliance Laundry Systems NX18BVPA7 Operation & Maintenance Manual
Cabinet freestanding
Hide thumbs
Also See for NX18BVPA7:
- Installation manual (29 pages) ,
- Basic installation/operation (22 pages) ,
- Installation & operation manual (20 pages)
Table of Contents
Advertisement
Quick Links
Washer-Extractors
Para bajar una copia de estas instrucciones en español,
visite www.comlaundry.com.
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Cabinet Freestanding
Refer to Page 2 for Model Identification
www.comlaundry.com
H
CFD14C
Part No. 9001910R3
June 2008
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alliance Laundry Systems NX18BVPA7
Summary of Contents for Alliance Laundry Systems NX18BVPA7

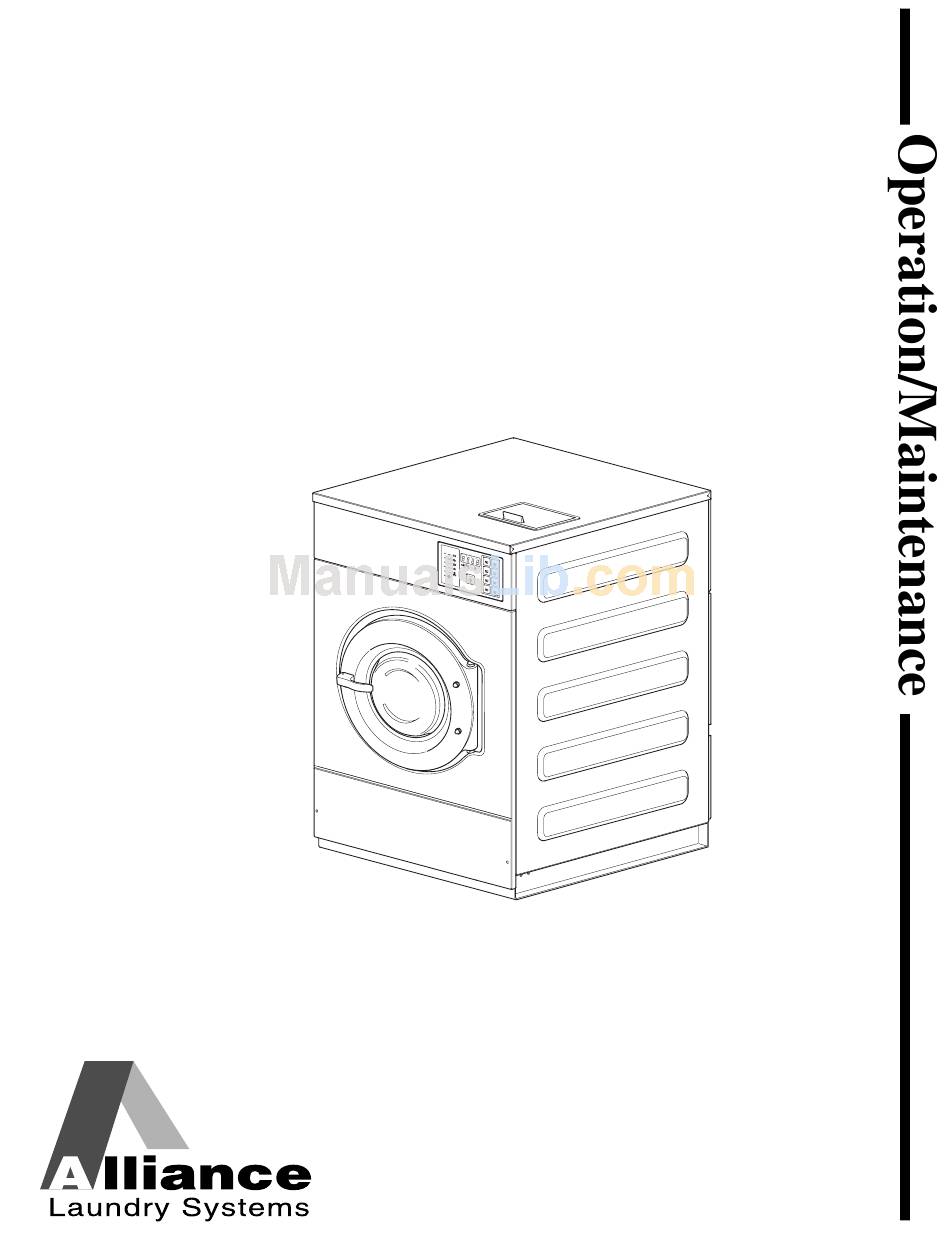

- Page 1 Washer-Extractors Refer to Page 2 for Model Identification Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Cabinet Freestanding www.comlaundry.com CFD14C Part No. 9001910R3 June 2008...
-
Page 3: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 9001910 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction... Model Identification ... -
Page 4: Model Identification
Model Identification Information in this manual is applicable to these models: NX18BVPA6 NX18BVPA7 NX18BVQA6 NX18BVQA7 NX30BVPA6 NX30BVPA7 NX30BVQA6 NX30BVQA7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction NX18BVXA6 SX18BVPA7 NX18BVXA7 SX18BVQA7 NX18BVXM6 SX18BVXA7 NX18BVXM7 SX18BVXM7 NX30BVXA6... -
Page 5: Replacement Parts
Nameplate Figure 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 Replacement Parts If literature or replacement parts are required, contact the source from which the machine was purchased or... - Page 6 Design Series (M=Domestic, A=International) Option Identification (varies from machine to machine) 0001 *X18BVXM70001 50 60 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Model Number Familiarization Guide Sample Model Number: *X18BVXM60001 2/3+PE EXAMPLE OF NAMEPLATE Figure 2...
-
Page 7: Explanation Of Safety Messages
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 Safety Information Important Safety Instructions To reduce the risk of fire, electric shock,... - Page 8 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 20. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
-
Page 9: Safety Decals
Failure to do so may result in conditions which can produce serious injury, death and/or property damage. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 Be careful around the open door, particularly when loading from a level below the door. -
Page 10: Operator Safety
Excessively high water level is evident. c. Machine is not connected to a properly grounded circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Do not bypass any safety devices in the machine. Never operate the machine with a bypassed or disconnected balance system. -
Page 11: Preliminary Information
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 Power Failure Recovery If a cycle in process and the power fails, the user has one minute to press START (enter) to continue the cycle. -
Page 12: Summary Of Major Features
START keypad Payment Methods Fill Temperatures Supplies Agitation Types Drain Options Automatic Unlock after Power Failure During Cycle © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation NORMAL RM RESS WARM NORMAL PERM PRESS WARM COLD... -
Page 13: Operating Instructions
4. Close door by pushing door handle towards machine. 5. The default wash cycle will display. NOTE: Perm Press Cold is the default cycle for coin models if none is selected. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 WASH BLEACH RINSE... - Page 14 Detergent Bleach Softener Figure 6 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 8. Add coins to machine. As each coin is added, the vend counts down to the amount remaining. Refer to Figure 6. 9. When applicable, add bleach to compartment 2 when the ADD BLEACH LED is lit.
-
Page 15: Maintenance
The door should not open. IMPORTANT: If the door lock and interlock are not functioning properly, take machine out of service. Call a service technician to correct. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 Maintenance End of day 1. -
Page 16: Monthly
Refer to Figure 7. Drain Figure 7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 5. Remove back panel and check overflow hose and drain hose for leaks. 6. Clean inlet hose filter screen: a. -
Page 17: Daily Preventive Maintenance Checklist
NOTE: Unload the machine promptly after each completed cycle to prevent moisture buildup. NOTE: Leave loading door open after each completed cycle to allow moisture to evaporate. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910... -
Page 18: Weekly Preventive Maintenance Checklist
Start an unloaded cycle to fill the machine. b. Verify that door and door gasket do not leak. c. Verify that the drain valve is operating. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Checks Month __________... -
Page 19: Monthly Preventive Maintenance Checklist
11. Verify that insulation is intact on all external wiring and that all connections are secure. If bare wire is evident, call a Service Technician. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001910 Checks... -
Page 20: Yearly Preventive Maintenance Checklist
1. Check if the machine is working properly. If you see or hear any abnormal function on the machine call a service technician. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Checks Observe All Safety Warnings!
