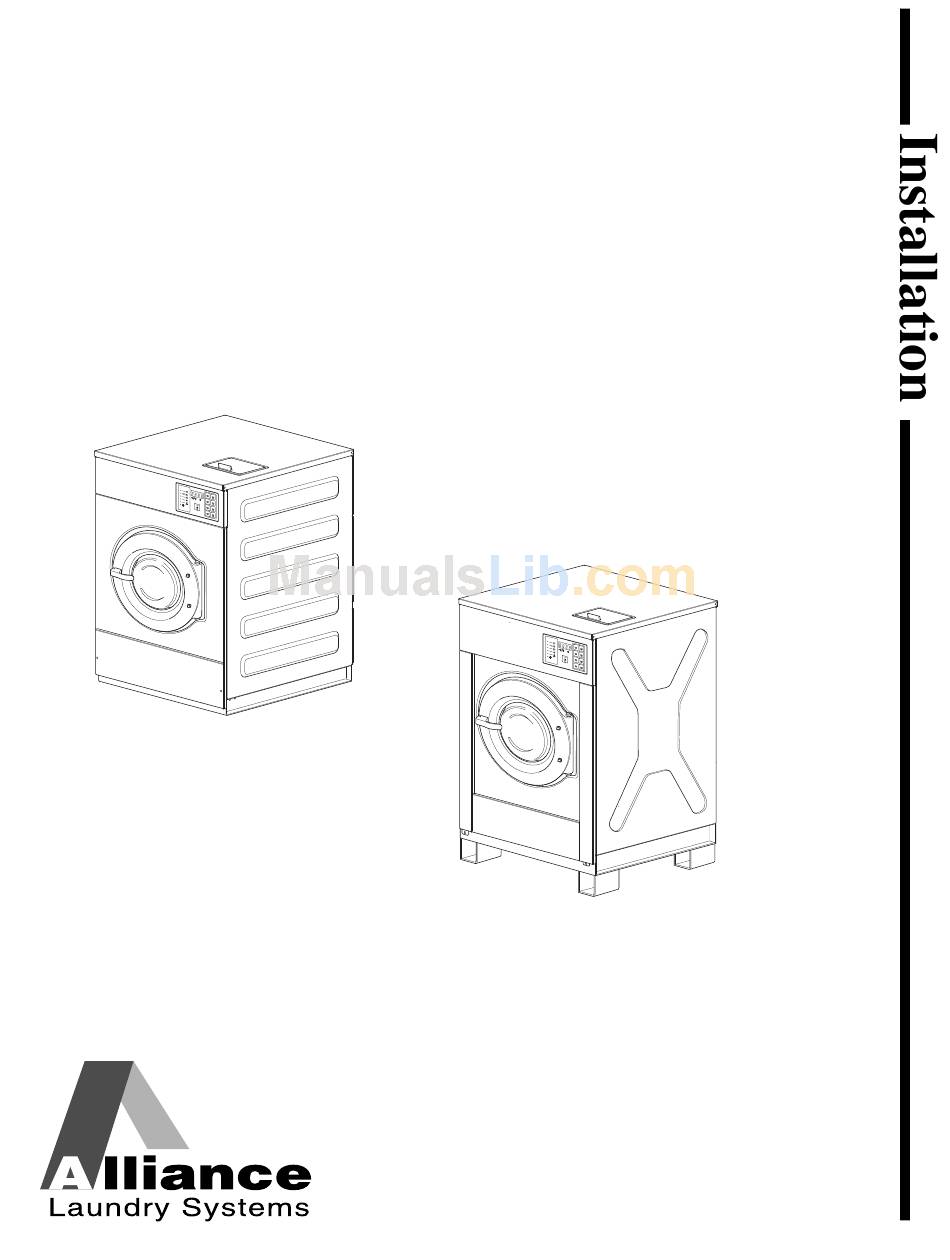

  • Page 1 Washer-Extractors Cabinet Freestanding Refer to Page 2 for Model Identification CFD14C 18 and 30 Models CFD14C CFD16C 33 and 40 Models Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 9001909R4 www.comlaundry.com...

  • Page 3: Table Of Contents

    All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. 9001909 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction... Model Identification ...

  • Page 4: Model Identification

    Model Identification Information in this manual is applicable to these models: NX18BVPA6 NX18BVPA7 NX18BVQA6 NX18BVQA7 NX30BVPA6 NX30BVPA7 NX30BVQA6 NX30BVQA7 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Introduction NX18BVXA6 SX18BVPA7 NX18BVXA7 SX18BVQA7 NX18BVXM6 SX18BVXA7 NX18BVXM7 SX18BVXM7 NX30BVXA6...

  • Page 5: Nameplate Location

    Alliance Laundry Systems at (920) 748-3950 for the name and address of the nearest authorized parts distributor. Customer Service For technical assistance, call (920) 748-3121. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909...
  • Page 6 Design Series (M=Domestic, A=International) Option Identification (varies from machine to machine) 0001 NX18BVXM60001 50 60 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Model Number Familiarization Guide Sample Model Number: NX18BVXM60001 2/3+PE EXAMPLE OF NAMEPLATE Figure 2...

  • Page 7: Safety Information

    NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 Safety Information Important Safety Instructions To reduce the risk of fire, electric shock,...
  • Page 8 If this occurs, have washer checked by a qualified service person. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 20. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

  • Page 9: Safety Decals

    Failure to do so may result in conditions which can produce serious injury, death and/or property damage. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 Be careful around the open door, particularly when loading from a level below the door.

  • Page 10: Operator Safety

    Excessively high water level is evident. c. Machine is not connected to a properly grounded circuit. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Do not bypass any safety devices in the machine. Never operate the machine with a bypassed or disconnected balance system.

  • Page 11: Specifications And Dimensions

    Cylinder depth Cylinder volume Perforation size Door Opening Information Door opening size Height of door bottom above floor © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 General Specifications 26 in. 30.7 in. (660 mm) (780 mm) 40.9 in.
  • Page 12 Vibration safety switch installed Electrical Heating (International Models Only) Total electrical heating capacity Electrical heating elements Electrical heat element size © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT General Specifications 1 HP 2 HP (0.75 kW) (1.5 kW)
  • Page 13 27.7 in. (633 mm) Hot Water Connections .75 in. (19 mm) Power Input Emergency Stop Button Ventilation Tub © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 14.4 in. (365 mm) 2.6 in. (65 mm) 26 in.
  • Page 14 Hot Water Connections .75 in. (19 mm) Cold Water Inlet (required) .75 in. (19 mm) Power Input Emergency Stop Button © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 3.5 in. (88 mm) 18.7 in. (475 mm) 25.5 in.
  • Page 15 Fill and Supply Ventilation External Liquid Supply Inlets Cold Water Inlet (Required) Cold Water Inlet (Required) Hot Water Inlet (Required) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 1.97 in. 1.34 in. (50 mm) (34 mm)
  • Page 16 Fill and Supply Ventilation External Liquid Supply Inlets Cold Water Inlet (Required) Cold Water Inlet (Required) Hot Water Inlet (Required) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 1.97 in. 1.34 in. (50 mm) (34 mm)

  • Page 17: Installation

    (door (419 mm) (419 mm) swing) Table 1 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 Installation Machine Foundation Thoroughness of detail must be stressed with all foundation work to ensure a stable unit installation, eliminating possibilities of excessive vibration during extract.

  • Page 18: Mechanical Installation

    2.26 in. 2.26 in. 20.87 in. (65 mm) (65 mm) (530 mm) 25.98 in. (660 mm) 18 MODEL CFD67N Figure 7 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909...
  • Page 19 25.51 in. 2.60 in. 2.60 in. (648 mm) (66 mm) (66 mm) 30.71 in. (780 mm) 30 MODEL CFD68N Figure 8 IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909...
  • Page 20 Installation .87 in. (22 mm) 1.97 in. (50 mm) IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 26.77 in. (680 mm) 30.71 in. (780 mm) 33 MODEL Figure 9 1.34 in.
  • Page 21 .87 in. (22 mm) 1.97 in. (50 mm) IMPORTANT: Drawing is not to scale. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 26.77 in. (680 mm) 30.71 in. (780 mm) 40 MODEL Figure 10 Installation 1.34 in.

  • Page 22: Mounting Bolt Installation (If Required)

    For 33 and 40 models, the diameter of the bolt must be minimum 5/8-11 or 16 mm. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4. To level machine, fill the spaces between the machine base and floor with machinery grout.

  • Page 23: Removing The Transport Block

    Transport Block (Remove) Figure 12 IMPORTANT: Do NOT lift motor by the pulley. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 4. For 18 and 30 models, remove the panel braces. Refer to Figure 13.

  • Page 24: Drain Connection

    2 in. (51 mm) 3 in. (76.2 mm) 3.5 in. (88 mm) 4 in. (102 mm) 4.5 in. (114 mm) 5 in. (124 mm) 5.5 in. (140 mm) © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...

  • Page 25: Water Connection

    3. Hang the hoses in a large loop, do not allow them to kink. If additional hose length is needed use flexible hoses. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 Pressure of 30-85 psi (2-5.86 bar) provides best performance.

  • Page 26: Electrical Installation

    DANGER Do not use a phase adder on any variable- speed machine. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT The washer-extractor should be connected to an individual branch circuit not shared with lighting or other equipment.
  • Page 27 2 motor leads at the AC drive terminal block. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 380-415V 3AC + N 380-415V 3 phase (3AC + N) has to be connected to the connectors “L1, L2, L3”, the blue neutral to the...

  • Page 28: Out-Of-Balance Switch

    IMPORTANT: To guarantee good functioning, the probe should be centered horizontally and vertically at 1/3 from the bottom of the tilt window (when machine drum is empty). © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT CFS501N 9001909...

  • Page 29: Control Function Test

    AC Drive Connections © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 9001909 b. Close the door without locking it and attempt to start the washer. The washer should not start with the door unlocked.
