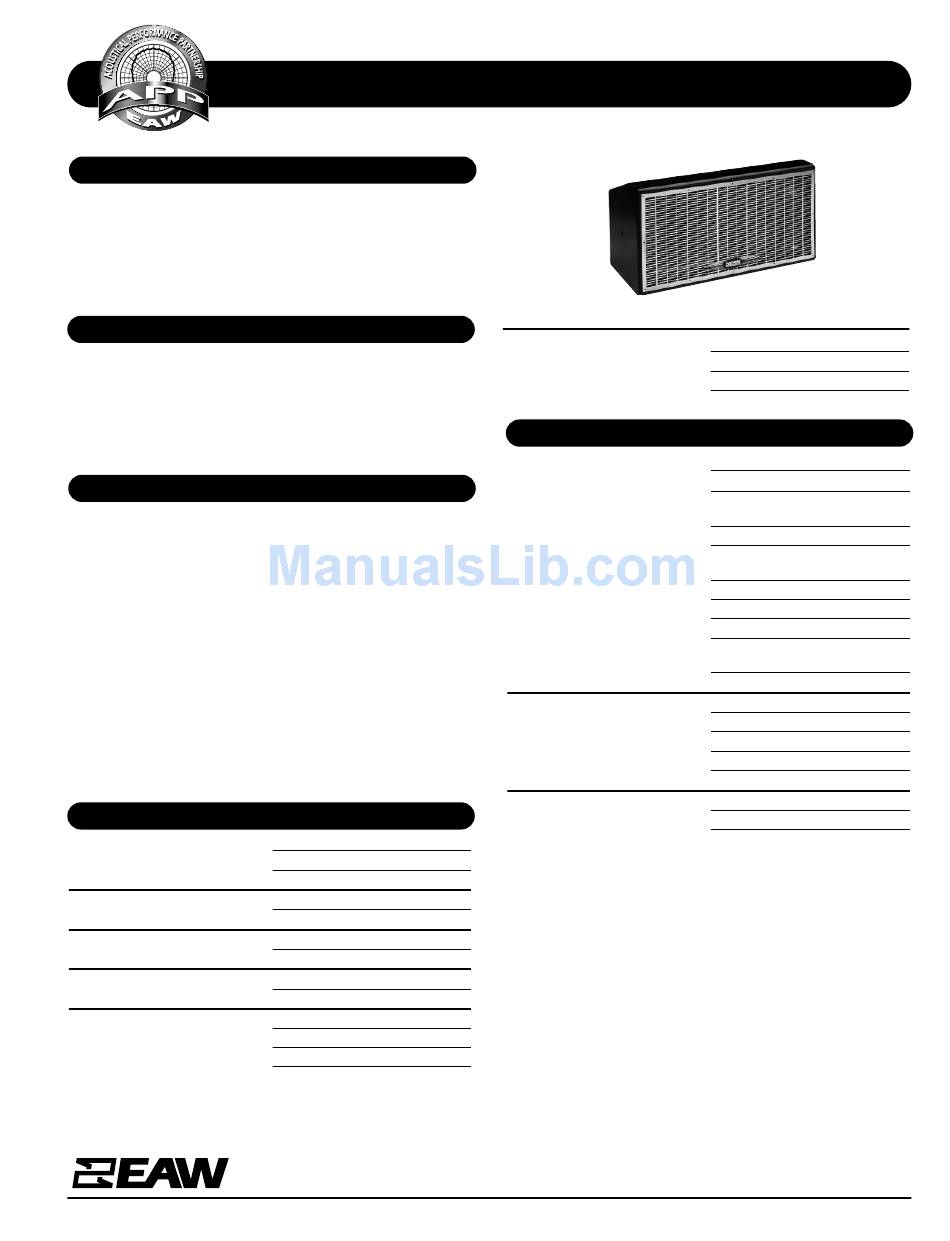

EAW DC5 Specifications

FEATURES
• Compact two-way system for small dance clubs
• Very effective as a high-output DJ booth monitor
• One 12-in woofer, vented
• Horn-loaded 1.4-in exit/3-in voice coil HF compression
driver
• Cutaway rear corner directs coverage down from its position
close to a ceiling
DESCRIPTION

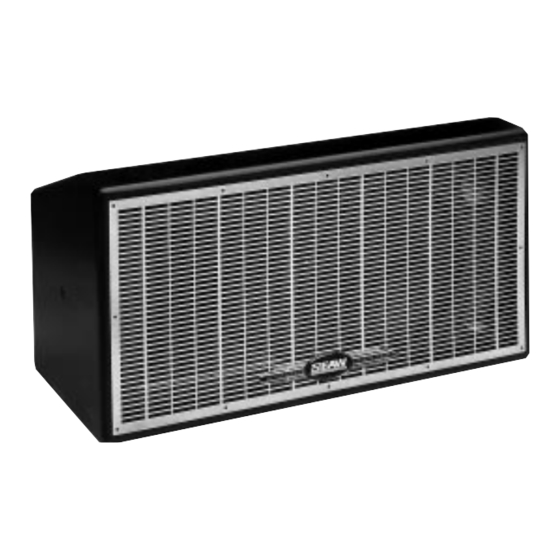

The DC5 is engineered for use in permanent installations. The
system includes a 12-in woofer in an optimally vented enclo-
sure and a 1.4-in exit/3-in voice coil high frequency com-
pression driver on a 90° (h) x 45° (v) dispersion constant direc-
tivity horn. A complex asymmetrical internal passive
crossover/filter network provides subsystem integration,
ensuring coherent summation throughout the transition.
APPLICATION
The DC5 compact, passive two-way dance club system pro-
vides high output, high definition reinforcement for small
clubs or smaller spaces within clubs. Overall design is robust
to ensure reliability in the face of continuous peak output
operation.
The DC5 is designed for overhead mounting in a horizontal
configuration to cover small dance floors or auxiliary spaces
within larger clubs. It is also very effective when used as a
high-output reference monitor in DJ booths. Its cutaway
upper-rear corner allows it to tuck up next to the ceiling
while angling its coverage down 20°. The enclosure includes
balance-optimized threaded mounting points.
Like all EAW products, it can be special ordered in virtually
any color to match a specific décor. Six year warranty.
PERFORMANCE
Frequency Response
±3 dB 80 Hz to 18 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 watt @ 1 m)
Full Range 97
Nominal Input Impedance (ohms)
Full Range 8
Power Handling (watts, continuous)
Full Range 500
Calculated Output Limit (dB SPL @ 1 m)
Full Range Peak 130
Full Range Long Term 124
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Nominal Beamwidth (degrees @ -6 dB SPL)
Dimensions
Weights
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS DC5
Horizontal 90
Vertical 45
PHYSICAL
Product Group Avalon
Configuration 2-way full-range
Powering Full-range (passive LF/HF
LF Subsystem 1x 12-in woofer, vented
HF Subsystem 1x 1.4-in exit/3-in voice coil
Enclosure Material Exterior-grade Baltic birch plywood
Finish Wear-resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware 11x 3/8"-16 threaded mounting
Grille Zinc coated perforated steel
Height (front) 15.6
Height (rear) 12.0
Width 30.0
Depth 13.7
Net Weight 65
Shipping Weight 77
FAX 508 234 8251
DC5/2 pp
crossover)
compression driver on CD horn
points (4 top, 3 per side, 1 back)
inches millimeters
395
306
762
346
pounds kilograms
29.6
35.0
info@eaw.com www.eaw.com
October 2001 Printed in USA
