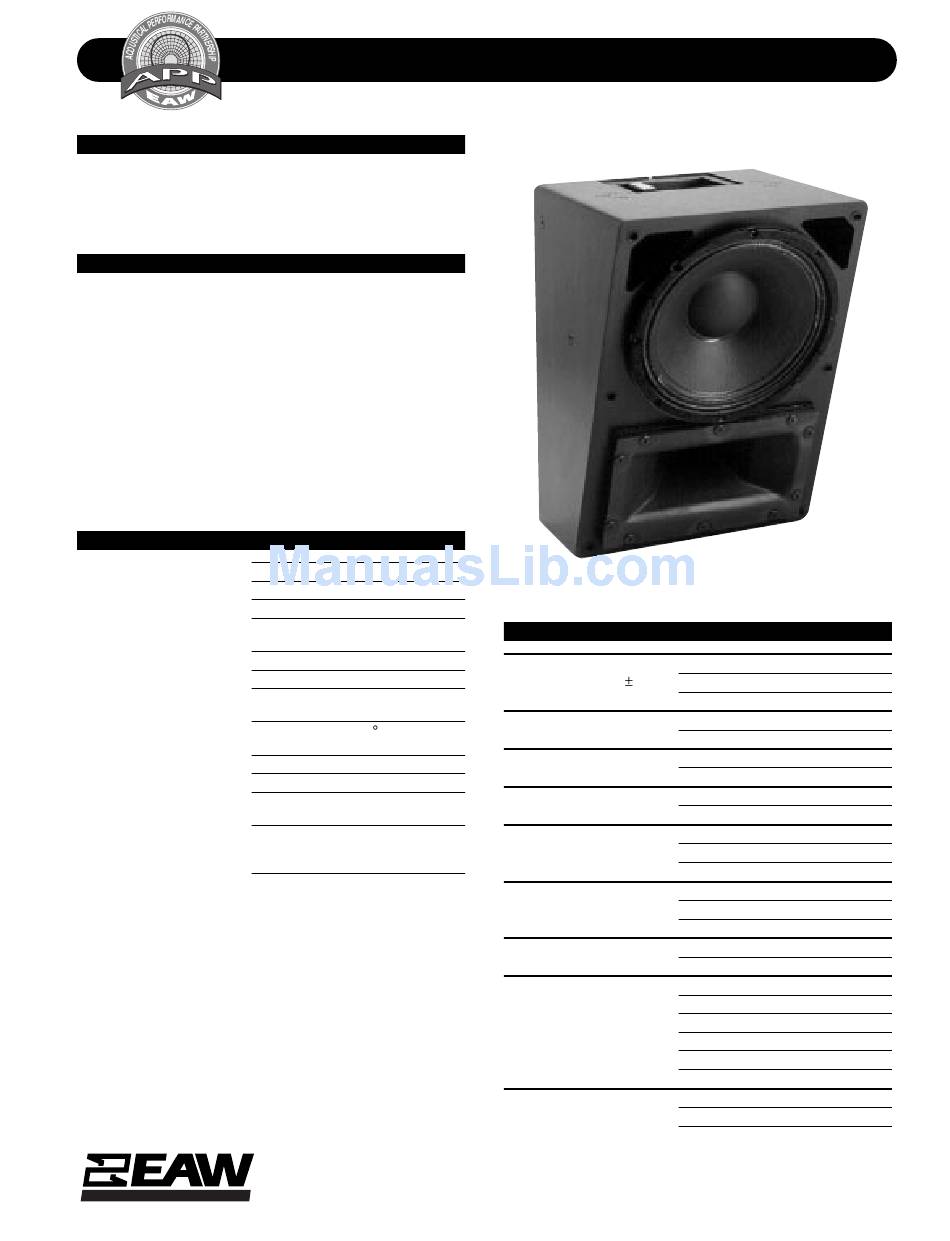

EAW DS122e Technical Specifications

DESCRIPTION
A 2-way full range passive system in a vented slant-baffle
enclosure. Includes a 12-in woofer and a 1-in exit compres-
sion driver on a 90 x 45 constant directivity horn. The
woodframed cloth grill is attached with threaded fasteners.
APPLICATIONS
The DS122e is engineered for exceptional performance in
the nearfield from overhead mounting positions. A very ef-
fective tools in permanently installed distributed systems.
Comprehensive 3/8"-16 mounting/suspension points let it
be aimed in the horizontal and vertical planes. Six Year War-
ranty.
Applications include:
MultiMedia
Chapel
Dance Club
Live Music Club
Auditoriums
Restaurant
DESCRIPTIVE DATA
Part Number 999033
Product Group I
LF Subsystem & Loading 1x 12-in Vented
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Full Range, Overhead Mount
Powering Configuration(s) Passive LF/HF Crossover
Recommended High-Pass
Frequency (24 dB/Octave) 45Hz
Cabinet Type (shape) Rectangular with 20 Slanted
Baffled
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2-Terminal Barrier Strip /
2x Neurtik NL4 Speakon
Suspension Hardware (12) 3/8"-16 Threaded Mounting/
Suspension Points (6 top, 2 per
side, 1 each bottom and back)
Grill Black Cloth on MDF Frame
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# DS122e-888025 (A)/2 pp/1/29/99 • Printed In USA
TECHNICAL SPECIFICATIONS DS122e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Recommended Complementary Systems
Dimensions
Weights
3 db 79Hz to 15kHz
-10 dB 49Hz
98
8
AES Standard 500
Peak 131.0
Long Term 125.0
Horizontal 90
Vertical 45
Sub SB150/SB250
inches millimeters
Height 20.38 518
Width 14.75 375
Top Depth 14.5 368
Bottom Depth 7.08 180
Baffle Angle 20 degrees
pounds kilograms
Net Weight 55 25.0
Shipping Weight 62 28.2
