EAW DC6 Specifications

FEATURES
• Compact two-way system for small dance clubs
• Very effective as a fill system in large clubs
• Dual 8-in woofers, vented
• Horn-loaded 1-in exit/1.75-in voice coil HF compression
driver
• Cutaway rear corner directs coverage down from its position
close to a ceiling

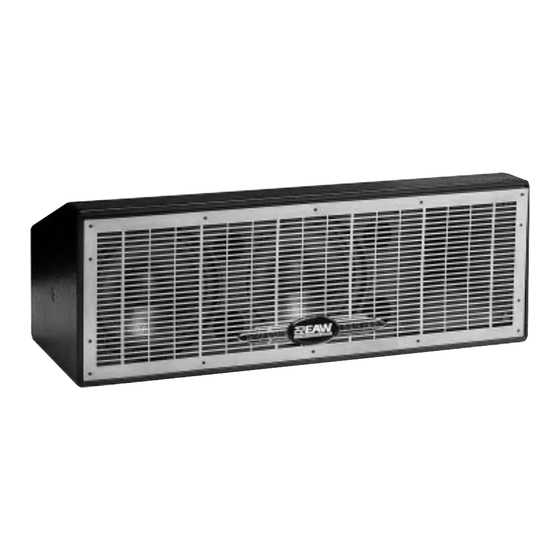

DESCRIPTION
The DC6 is engineered for use in permanent installations. The
system includes dual 8-in woofers in an optimally vented
enclosure and a 1-in exit/1.75-in voice coil high frequency
compression driver on a 90° (h) x 60° (v) dispersion constant
directivity horn.
The dual woofers are placed adjacently to enhance driver cou-
pling and minimize horizontal beaming at the top of the LF
passband while the HF horn's complex flare ensures true 90°
horizontal coverage.
A complex asymmetrical internal passive crossover/filter net-
work provides subsystem integration, ensuring coherent
summation throughout the transition.
APPLICATION
The DC6 compact, passive two-way dance club system provides
high output, high definition reinforcement for small clubs or
smaller spaces within clubs. Overall design is robust to ensure
reliability in the face of continuous peak output operation.
The DC6 is designed for overhead mounting in a horizontal
configuration to cover small dance floors or auxilliary spaces
within larger clubs. Its cutaway upper-rear corner allows it to
tuck up next to the ceiling while angling its coverage down
20°. The enclosure includes balance-optimized threaded
mounting points.
Like all EAW products, it can be special ordered in virtually any
color to match a specific décor. Six year warranty.
PERFORMANCE
Frequency Response
±3 dB 75 Hz to 19 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 watt @ 1 m)
Full Range 95
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Nominal Input Impedance (ohms)
Power Handling (watts, continuous)
Calculated Output Limit (dB SPL @ 1 m)
Nominal Beamwidth (degrees @ -6 dB SPL)
Dimensions
Weights
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS DC6
Full Range 4
Full Range 400
Full Range Peak 127
Full Range Long Term 121
Horizontal 90
Vertical 60
PHYSICAL
Product Group Avalon
Configuration 2-way full-range
Powering Full-range (passive LF/HF
LF Subsystem 2x 8-in woofers, vented
HF Subsystem 1x 1-in exit/1.75-in voice coil
Enclosure Material Exterior-grade Baltic birch plywood
Finish Wear-resistant black textured paint
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware 10x 3/8"-16 threaded mounting
Grille Zinc coated perforated steel
Height (front) 10.7
Height (rear) 7.5
Width 30.0
Depth 11.7
Net Weight 56
Shipping Weight 64
FAX 508 234 8251
DC6/2 pp
crossover)
compression driver on CD horn
points (4 top, 3 per side)
inches millimeters
270
189
762
297
pounds kilograms
25.5
29.1
info@eaw.com www.eaw.com
October 2001 Printed in USA
