EAW DS123e Technical Specifications

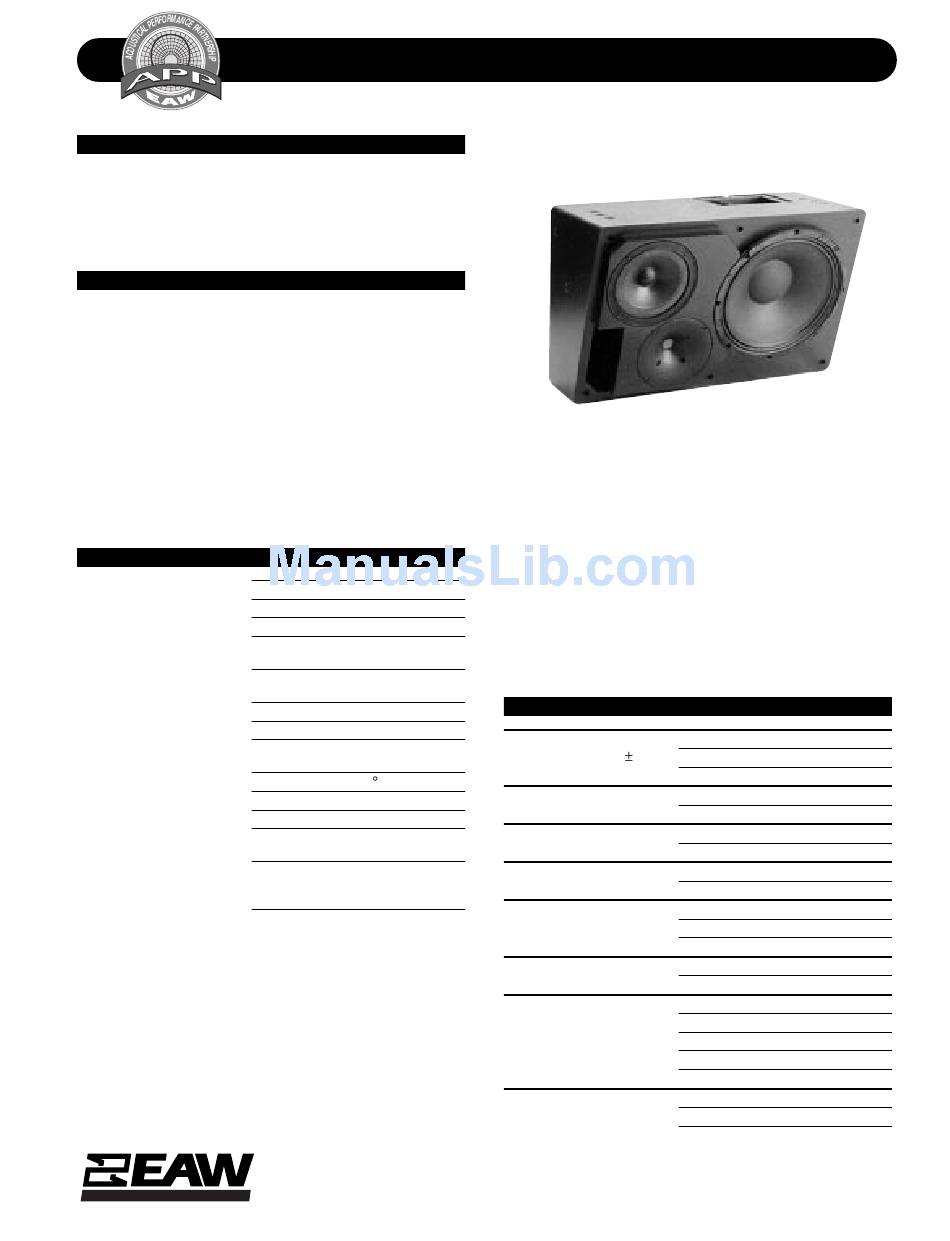

DESCRIPTION
A 3-way full range passive system in a vented, slant-baffle
enclosure. Includes a 12-in woofer, a 7-in midrange cone in
a sealed subenclosure and a 1-in exit compression driver on
a Wave Guide Plate™. The woodframed cloth grill is attached
with threaded fasteners.
APPLICATIONS
The DS123e is engineered for exceptional performance in
the nearfield from overhead mounting positions. True 3-way
design dramatically improves the quality of vocal reproduc-
tion. A very effective tool in permanently installed distrib-
uted systems. Comprehensive 3/8"-16 mounting/suspension
points let it be aimed in the horizontal and vertical planes.
Six Year Warranty.
Applications include:
MultiMedia
Chapel
Dance Club
Live Music Club
Restaurant
DESCRIPTIVE DATA
Part Number 999034
Product Group I
LF Subsystem & Loading 1x 12-in, Vented
MF Subsystem & Loading 1x 7-in Cone in Sealed
Subenclosure
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Wave Guide Plate™
System Configuration 3-way, Full Range, Overhead Mount
Powering Configuration(s) Passive LF/MF/HF Crossover
Recommended High-Pass
Frequency (24 dB/Octave) 70 Hz
Cabinet Type (shape) Rectangular with 20 Slant Baffled
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2-Terminal Barrier Strip
2x Neutrik NL4 Speakon
Suspension Hardware (12) 3/8"-16 Mounting/Suspension
Points (6 Top, 2 per Side, 1 each
Bottom and Back)
Grill Black Cloth on MDF Frame
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# DS123e-888026 (A)/2 pp/1/29/99 • Printed In USA
TECHNICAL SPECIFICATIONS DS123e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
3 db 90 Hz - 17kHz
10 dB 62 Hz
97
8
AES Standard 500
Peak 130.0
Long Term 124.0
Conical 100
inches millimeters
Height 14.88 378
Width 23.75 603
Top Depth 12.34 319
Baffle Angle 20 degrees
pounds kilograms
Net Weight 61 27.5
Shipping Weight 68 30.6
