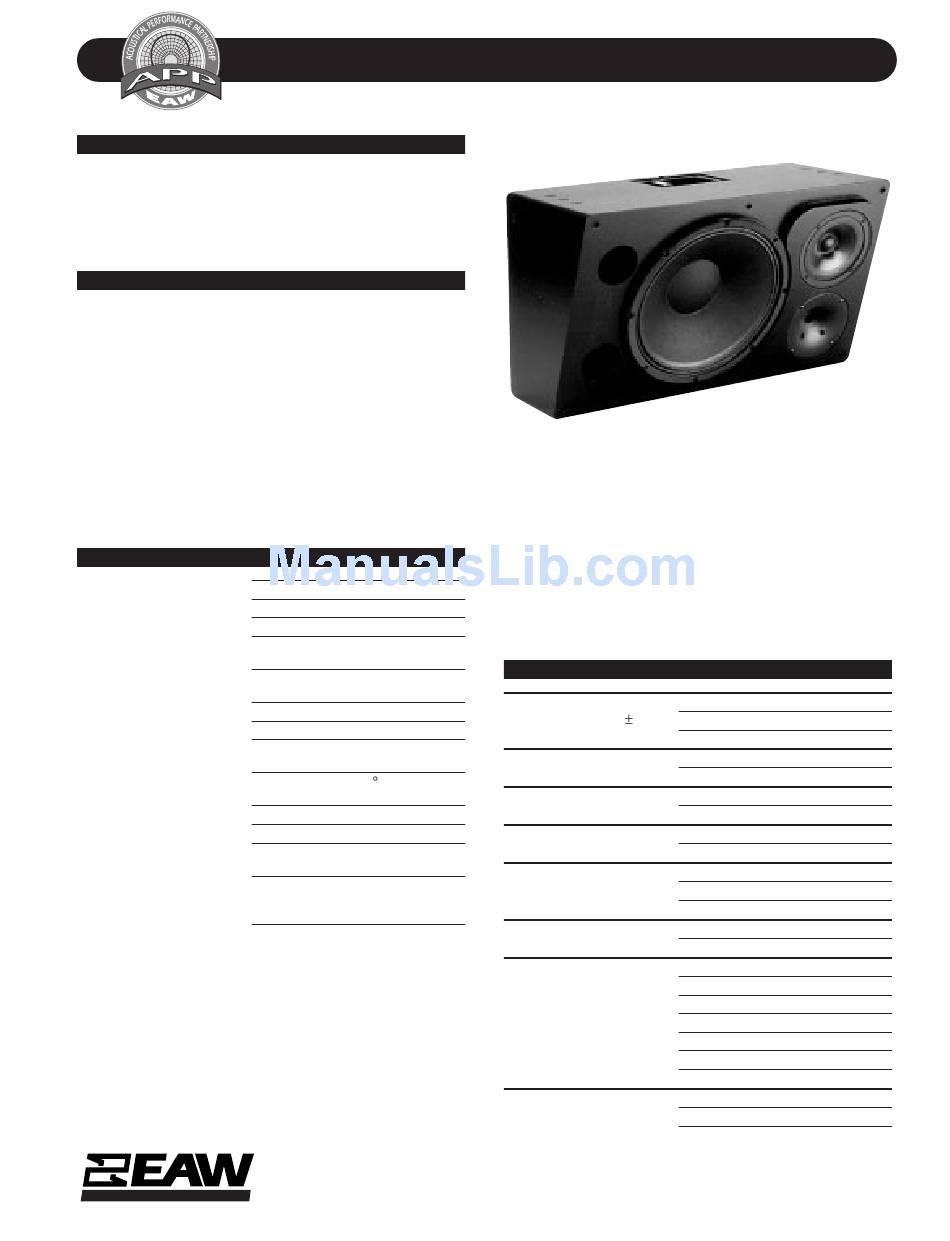

EAW DS153e Technical Specifications

DESCRIPTION
A 3-way passive full range system in a vented slant-baffle
enclosure. Includes a 15-in woofer, a 7-in midrange cone
and a 1-in exit compression driver on a Wave Guide Plate™.
The woodframed cloth grill is attached with threaded
fasteners.
APPLICATIONS
The DS153e is engineered for exceptional performance in
the nearfield from overhead mounting positions. True 3-way
design dramatically improves the quality of vocal reproduc-
tion. A very effective tool in permanently installed distrib-
uted systems. Comprehensive 3/8"-16 mounting/suspension
points let it be aimed in the horizontal and vertical planes.
Six Year Warranty.
Applications include:
MultiMedia
Chapel
Dance Club
Live Music Club
Restaurant
DESCRIPTIVE DATA
Part Number 999035
Product Group I
LF Subsystem & Loading 1x 15-in, Vented
MF Subsystem & Loading 1x 7-in Cone in Sealed
Subenclosure
HF Subsystem & Loading 1x 1-in Exit Compression Driver
on Wave Guide Plate™
System Configuration 3-way, Full Range, Overhead Mount
Powering Configuration(s) Passive LF/MF/HF Crossover
Recommended High-Pass
Frequency (24 dB/Octave) 35Hz
Cabinet Type (shape) Rectangular with 20 down angled
baffle
Enclosure Materials Baltic Birch Plywood
Finish Black catalyzed polyurethane
Connectors 2-Terminal Barrier Strip plus 2x
Neutrik NL4 Speakon
Suspension Hardware (12) 3/8"-16 threaded mounting/
suspension points (6 on top, 2 per
side, 1 each bottom and back)
Grill Black Cloth on MDF frame
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# DS153e 999035 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS DS153e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
3 db 48Hz to 18kHz
-10 dB 35Hz
98
8
AES Standard 375
Peak 129.7
Long Term 123.7
Conical 100
inches millimeters
Height 17.25 438
Width 29.75 756
Depth 15.28 388
Depth (Top) 14.75 375
Depth (Bottom) 8.52 216
Baffle Angle 20 degrees
pounds kilograms
Net Weight 74 33.3
Shipping Weight 80 36
