EAW DSA250 Specifications

D S A 2 5 0 S p e c i f i c a t i o n s
Features
•

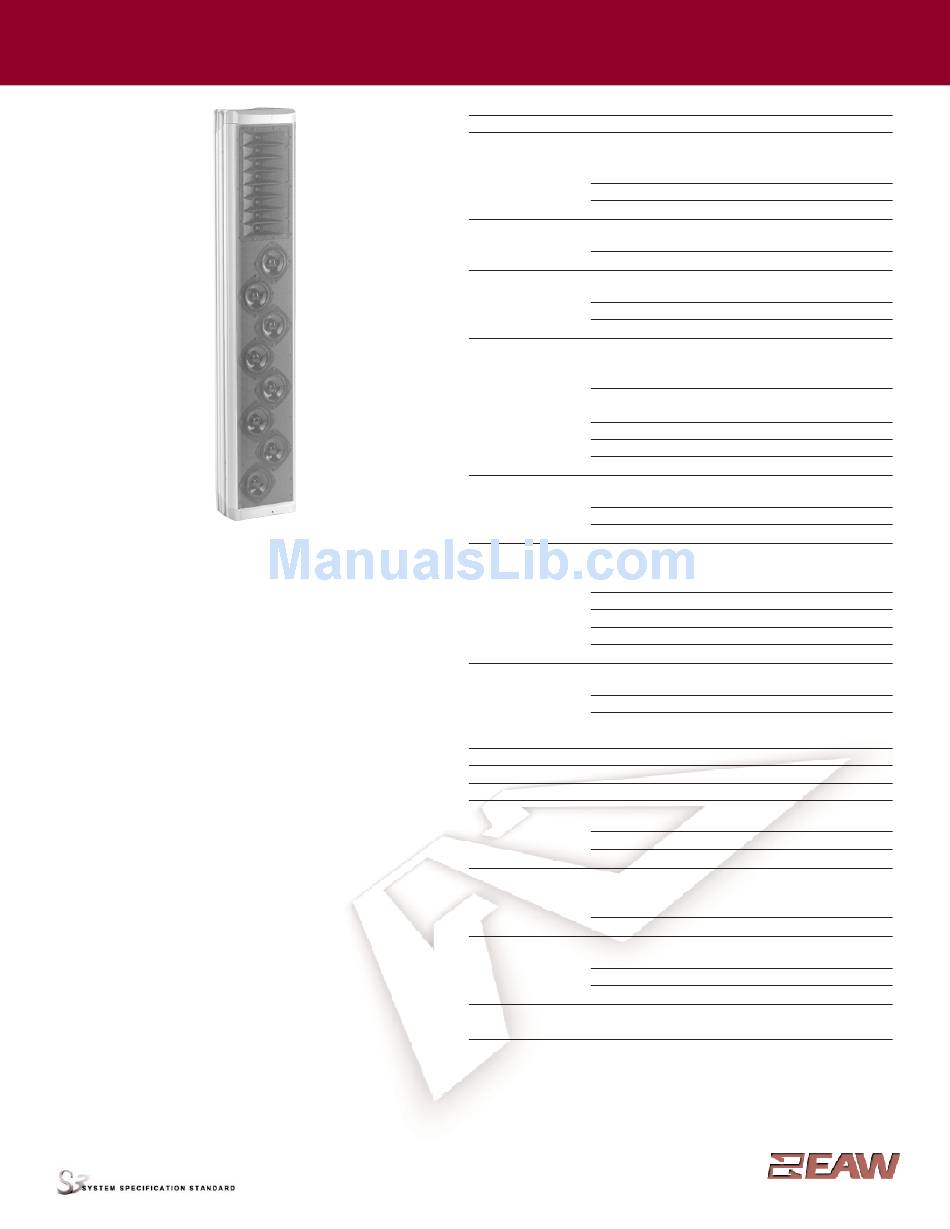

2-Way, full-range loudspeaker for voice and music applications
•
Vertical coverage pattern adjustable to fit the audience area
•
Integral signal processing and amplification
•
Built-in electronic driver protection
•
Wall Mounting hardware included
Description
The DSA250 is a unique, column-type loudspeaker for full-range
FGM (foreground music) and voice applications. It also functions
with additional DSA Series loudspeakers to provide increased
performance. For example, a DSA250 used with the DSA230
extends directivity to and increases the output at lower frequencies.
The DSA250 has the remarkable versatility of a user-adjustable,
vertical beamwidth. This is made possible because each transducer
has its own DSP (digital signal processing) and power amplifier.
Built-in networking provides for remote PC operation and control.
Intended to be flat-mounted to a wall, the user directs the DSA250's
output from this position to the desired coverage area using the
supplied DSAPilot software. Pattern asymmetry provides similar
sound levels to both near and far listeners. Each of the two inputs
has user-adjustable EQ, delay, and compression.
DSA loudspeakers are engineered as a solution for applications
with difficult acoustics, physical mounting limitations, precise
vertical coverage requirements,
requirements. They can replace typical horn/woofer or column-type
loudspeakers in small to medium venues. These include houses of
worship, auditoriums, theaters, concert halls, conference rooms,
transportation centers, athletic facilities, classrooms, museums,
shopping malls, and theme parks. The enclosure profile and
appearance reduces architectural impact.
EAW products are continually improved. All specifications are therefore subject to change without notice.
and difficult aesthetic
Eastern Acoustic Works One Main Street Whitinsville, MA 01588 tel 800 992 5013 / 508 234 6158 fax 508 234 8251 www.eaw.com
2-WAY FULL-RANGE DIGITALLY STEERABLE ARRAY
See TABULAR DATA notes for details
CONFIGURATION
Subsystem
Transducer
LF 8x 4 in cone
HF 8x 1 in dome
Operating Mode
Amplifier Channels
Self-powered 16x high efficiency
ACOUSTICAL PERFORMANCE
Operating Range 78 Hz to15 kHz
Nominal Beawidth Horz
Vert
ELECTRONIC PERFORMANCE
Analog
Amplifier Output (ea) 28.3 V
Input (Audio A and B):
Configuration Balanced differential
Nominal Sensitivity 0.9 V / 1.25 dBu
Maximum Signal 12.2 V / 24 dBu
Input Routing A + B, A or B, priority B over A
Digital
A to D/ D to A 48 kHz, 24 bit
Processor 32 bit dual SHARC
Propagation Time 4.3 ms
INPUT SIGNAL PROCESSING
Filters
Frequency
Parametric 10 to 24000 Hz
6 or 12 dB Lo Shelf 10 to 24000 Hz
6 or 12 dB Hi Shelf 10 to 24000 Hz
HPF and LPF 10 to 24000 Hz
Compression
Threshold -40 to +24 dBu
Ratio 1.2:1 to inf:1
Attack (ms) slow (64)/med (16)/fast (2)
Release (ms) slow (256)/med (64)/fast (8)
Gain
-60 dB to +10 dB
Mute on/off
Signal Delay
300 ms maximum
Meters
Input -40 to +20 dBu
Output -30 to 0 dB
Gain Reduction 0 dB to -60 dB (compression)
CONNECTIONS
Computer Network
Standard EIA-485
Optional CobraNet (requires EAW CM-1 Interface Card accessory)
AC Mains
Voltage / Frequency
DSA250 (115 V) 100 to 120 V / 50 to 60 Hz
DSA250 (230 V) 220 to 240 V / 50 to 60 Hz
ORDERING DATA
Description
DSA250 White 115 V
Optional Accessories
CM-1 CobraNet Interface Card
DSA Fly-Bar Kit
DSA Enclosure Connecting Kit
Part Number: RD0112 (C) DSA250 SPEC
group · D
Loading
Direct radiating
Horn loaded
External Signal Proc.
None
120°
Digitally variable
50 W @ 16 ohm
For full output
(Super Harvard Architecture Computer)
Boost/Cut Q
+15/-15 dB 0.25 to 64
+15/-15 dB
+15/-15 dB
12/18/24 dB/oct L-R, BW, Bessel
ref 0 dB = full output
Maximum Current
8 A
4 A
Part Number
0005480-00
0005987
0007445
0007446
January 2004
