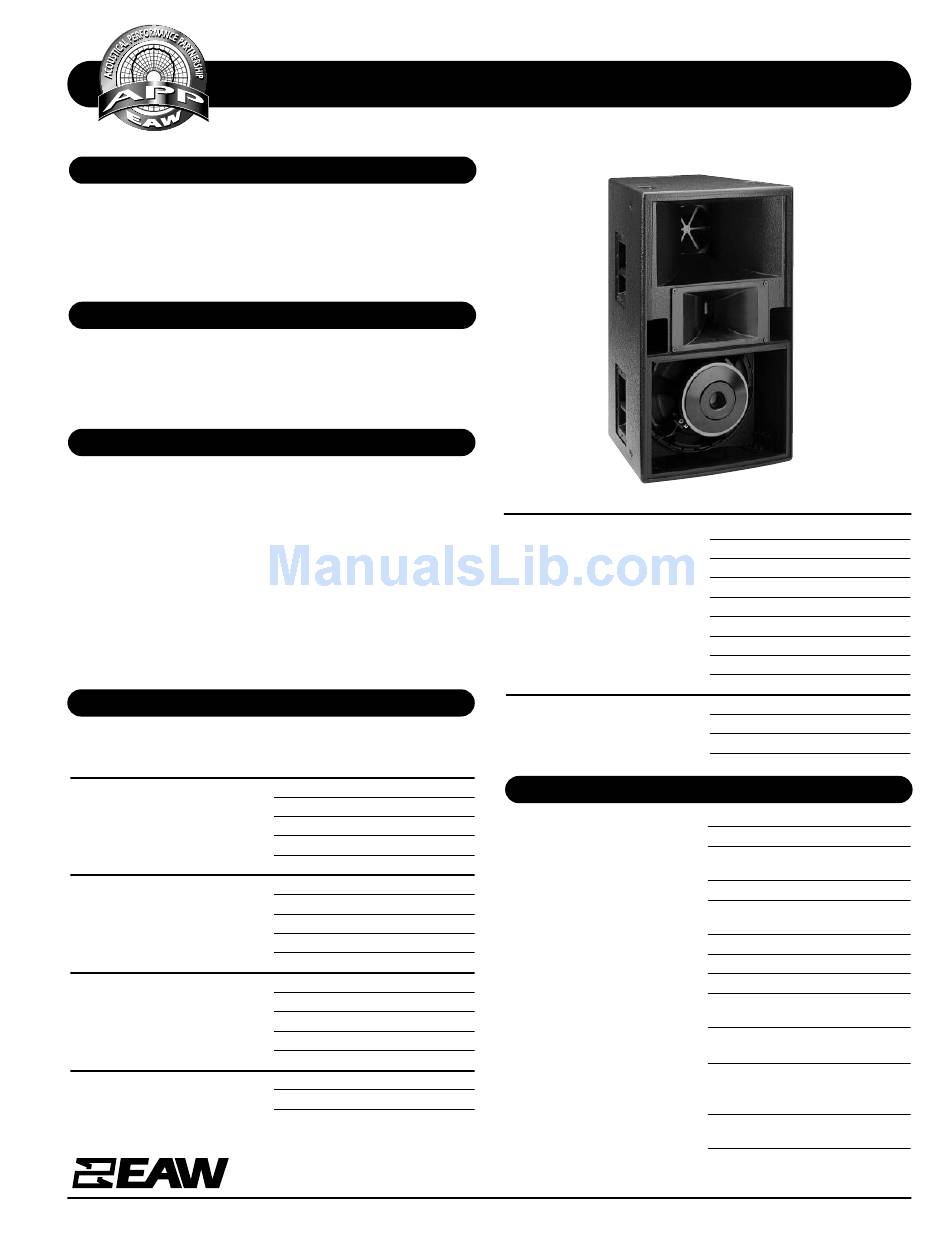

EAW KF695z Specifications

Eaw loudspeaker specifications.
Hide thumbs

1 2
FEATURES
• Compact Virtual Array™ three-way system
• Vented, LF horn-loaded MF/HF (90° x 45° coverage pattern)
• 15-in LF,10-in MF, 3-in voice coil/1.4-in exit HF
• Switchable powering: Tri-amp or Bi-amp
(passive LF/MF)
• For portable use or permanent installation
DESCRIPTION

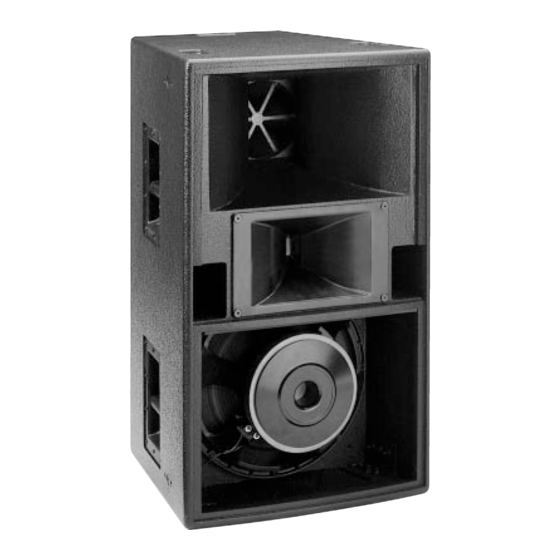

A 3-way full range system in a vented trapezoidal enclosure.
Includes a 15-in woofer, vented, a horn-loaded 10-in
midrange cone and a 1.4-in exit compression driver on a 90°
x 45° constant directivity horn. Powering mode is switchable:
bi-amplified (passive LF/MF crossover) or tri-amplified.
APPLICATION
The KF695z Virtual Array™ system's true 3-way design dra-
matically improves the quality of vocal reproduction while its
cone-driven midrange horn extends pattern control into the
lower octaves. Universal suspension hardware (flytrack with
integral 3/8"-16 mounting point) supports permanent or
portable applications. Six year warranty.
Applications include:
Concert Tours
Band PA
Corporate Events
Large Houses of Worship
PERFORMANCE
Frequency Response (Hz)
±3 db 65 Hz to 17 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @1m)
Bi-amped LF/MF 100
LF 100
MF 109
HF 110
Impedance (Ohms)
Bi-amped LF/MF 8
LF 8
MF 8
HF 8
Power Handling, (Watts Continuous)
Bi-amped LF/MF 700
LF 700
MF 400
HF 160
Recommended High-Pass Frequency
24 dB/Octave 50 Hz
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Ballroom Events
Convention Centers
Live Music Club
508 234 6158
Toll Free 800 992 5013
SPECIFICATIONS KF695z
Calculated Maximum Output (dB SPL @ 1m)
Bi-amped LF/MF Peak 134.5
LF Peak 134.5
MF Peak 141.0
HF Peak 138.0
Bi-amped LF/MF Long Term 128.5
LF Long Term 128.5
MF Long Term 135.0
HF Long Term 132.0
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 90
Vertical 45
PHYSICAL
LF Subsystem 1x 15-in, vented
MF Subsystem 1x 10-in horn-loaded cone
HF Subsystem 1x 1.4-in exit compression driver
Configuration 3-way, full fange
Powering Switchable: bi-amplified (passive
Controls (switches, knobs) Powering mode switch
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic birch plywood
Finish Wear-resistant textured black
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware (6) 3-position flytracks with
Grille Powder coated perforated steel,
FAX 508 234 8251
KF695z/2 pp
on constant directivity horn
LF/MF crossover) or tri-amplified
paint
2x Neutrik NL8 Speakon
integral 3/8"-16 threaded mount
ing points (3 each top and bottom)
foam backed
info@eaw.com
www.eaw.com
October 2001
Printed in USA
