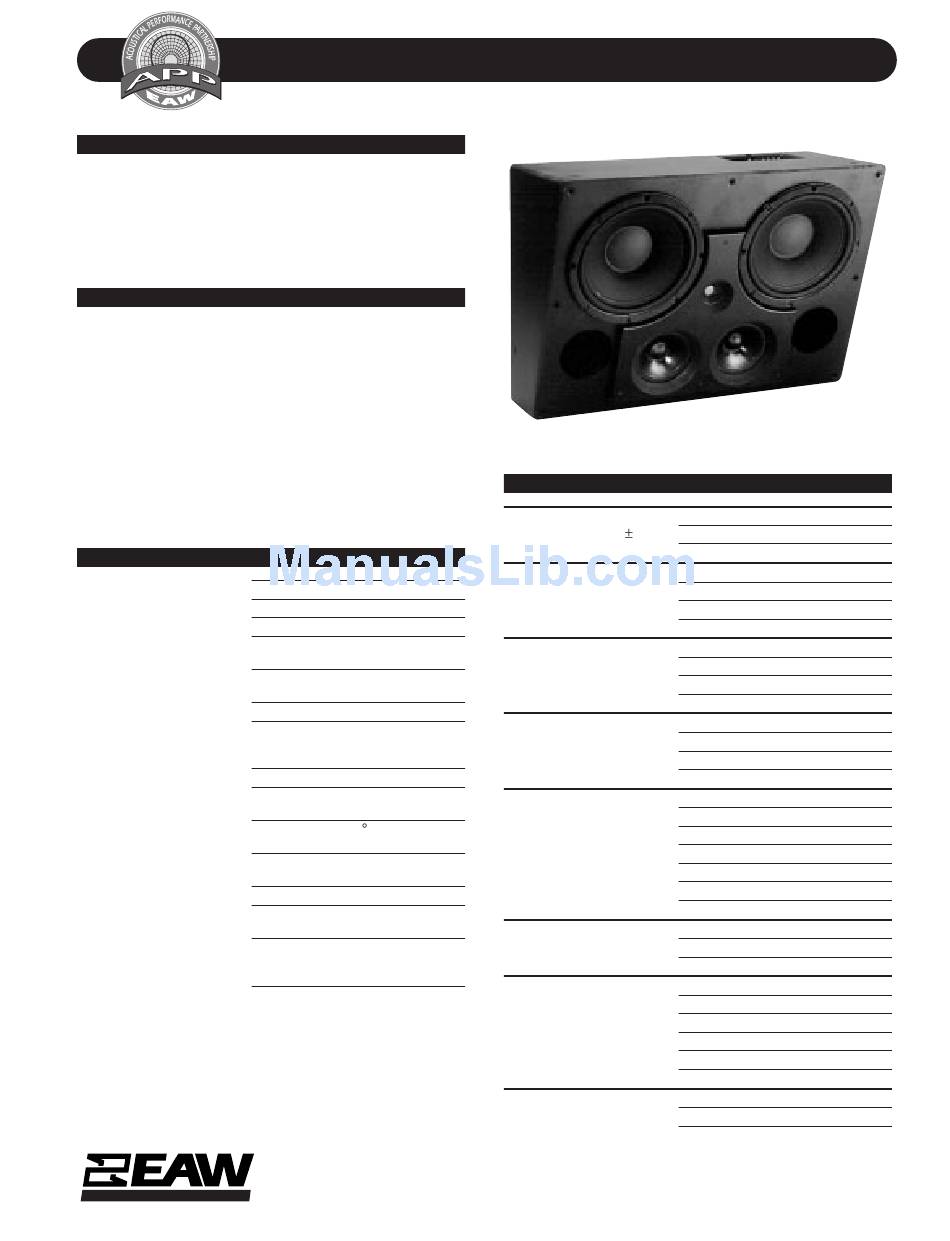

EAW DS223e Technical Specifications

DESCRIPTION
A 3-way full range system in a vented, slant-baffle enclo-
sure. Includes 2x 12-in woofers, 2x 7-in midrange cones and
a 1-in exit compression driver on a Wave Guide Plate™. Pow-
ering mode is switchable: passive (3-way crossover) or
biamplified (passive MF/HF crossover). The woodframed cloth
grill is attached with threaded fasteners.
APPLICATIONS
The DS223e is engineered for exceptional high output per-
formance in the nearfield from overhead mounting positions.
True 3-way design dramatically improves the quality of vocal
reproduction. A very effective tools in permanently installed
distributed systems. Comprehensive 3/8"-16 mounting/sus-
pension points. Six Year Warranty.
Applications include:
MultiMedia
Chapel
Dance Club
Live Music Club
Restaurant
DESCRIPTIVE DATA
Part Number 999036
Product Group I
LF Subsystem & Loading 2x 12-in, Vented
MF Subsystem & Loading 2x 7-in Cones in Separate Sealed
Subenclosures
HF Subsystem & Loading 1x 1-in Exit Compression Driver
on Wave Guige Plate™
System Configuration 3-way, Full Range, Overhead Mount
Powering Configuration(s) Switchable: Full Range (passive LF/
MF/HF crossover) or Biamplified
(passive MF/HF crossover)
Controls (switches, knobs) Powering Mode Switch
Recommended High-Pass
Frequency (24 dB/Octave) 35Hz
Cabinet Type (shape) Rectangular w/ 20 down slanted
baffle
Enclosure Materials 3/4" medium density fiberboard
(MDF) and Baltic Birch Plywood
Finish Black catalyzed polyurethane
Connectors 4-Terminal Barrier Strip plus 1x
Neutrik NL4 Speakon
Suspension Hardware (12) 3/8-16 threaded mounting/
suspension points (4 on top, 3 per
side, w on back
Grill Black Cloth on MDF frame
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# DS223e 999036(A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS DS223e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
Impedance (Ohms)
Power Handling, AES Standard (Watts)
Full Range Passive
Calculated Maximum Output (dB SPL, @ 1m)
Biamped MF/HF Peak
Biamped LF Peak
Full Range Long Term
Biamped MF/HF Long Term 126.8
Biamped LF Long Term
Nominal Coverage Angle / -6 dB points (degrees)
Dimensions
Weights
3 db 45Hz to 19kHz
-10 dB 32Hz
Full Range 99
Biamped MF/HF 99
Biamped LF 100.5
Full Range 4
Biamped MF/HF 4
Biamped LF 4
600
Biamped MF/HF 600
Biamped LF 700
Full Range Peak 132.8
132.8
135.0
126.8
129.0
Horizontal 70
Vertical 100
inches millimeters
Height 22 559
Width 31.88 810
Depth (Top) 15.34 390
Depth (Bottom) 7.81 198
Baffle Angle 20 degrees
pounds kilograms
Net Weight 137 61.7
Shipping Weight 143 64.4
