Summary of Contents for Dell Latitude Z600

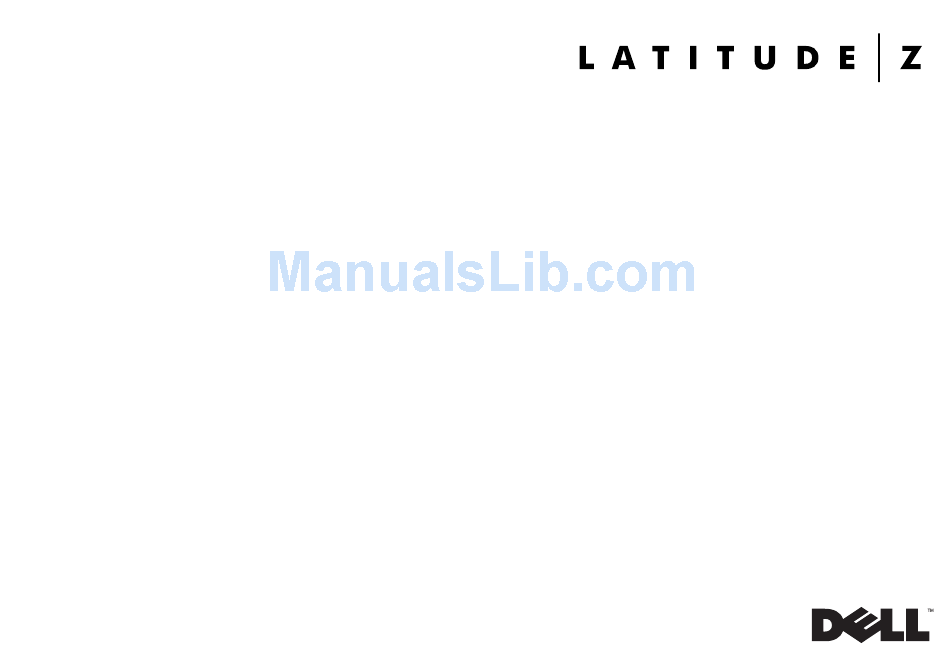

- Page 1 Setup and Features Information P01L...
-
Page 2: Notes, Cautions, And Warnings
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, the DELL logo, and Latitude are trademarks of Dell Inc.; Intel is a registered trademark and Core is a trademark of Intel Corporation in the U.S. -
Page 3: About Your Computer
About Your Computer Front View keyboard touch pad touch pad buttons (2) contactless smart-card reader About Your Computer... -
Page 4: Right View
Right View volume controls ambient light sensor device status lights Dell EdgeTouch control Latitude™ On button power button/power light DisplayPort eSATA/USB connector USB connector audio (line-out) and microphone (line-in) connector docking wake-up switch fingerprint reader About Your Computer... -
Page 5: Left View
Left View Display Features left digital array microphone (optional) cooling vents camera activity indicator (optional) wireless switch camera (optional) right digital array microphone (optional) display About Your Computer... -
Page 6: Back View
Back View network connector power indicator battery indicator security cable slot AC adapter connector About Your Computer... -
Page 7: Quick Setup
Connect the network cable (not included). procedures in this section, read the safety information that shipped with your computer. For additional best practices information, see www.dell.com/ regulatory_compliance. Connect the AC adapter to the AC adapter Connect the USB devices, such as a mouse or connector on the portable computer and to keyboard (optional). - Page 8 Connect your monitor to the DisplayPort or use a DisplayPort adaptor for VGA, DVI or HDMI interface. Open the computer display and press the power button to turn on the computer. NOTE: It is recommended that you turn on and shut down your computer at least once before you install any cards or connect the computer to a docking device or other external device, such as a printer.
-
Page 9: Specifications
Specifications NOTE: Some devices may not be included if System Information you did not order them. For more information System chipset Mobile Intel GS45 Express regarding the configuration of your Chipset computer, click Start→ Help and Support and select the option to view information Data bus width 64 bits about your computer. - Page 10 Battery Temperature range: Operating 0° to 35°C (32° to 95°F) Type: “smart” lithium ion Storage -40° to 60°C (-40° to 145°F) 4-cell (40 WHr) 8-cell (80 WHr) Coin-cell battery CR2032 Dimensions: AC Adapter 4-cell battery Input voltage 100–240 VAC Depth 36.11 mm Input current (maximum) 1.5 A...
- Page 11 Temperature range: Environmental Operating 0°to 40°C (32° to 104°F) Temperature range: Storage -40°to 70°C (-40°to 158°F) Operating 0° to 35°C (32° to 95°F) Storage -40° to 65°C (-40° to 149°F) Physical Relative humidity Height: (maximum): four cell 20.10 mm Operating 10%–90% (non condensing) eight cell 21.00 mm...
-
Page 12: Finding Information
Finding Information If you need to find: See: Complete information regarding the configuration of your The Service Manual on the Dell Support website at computer or to replace parts support.dell.com. Safety best practices information for your computer The safety and regulatory documents that shipped with...
