Инструкция для

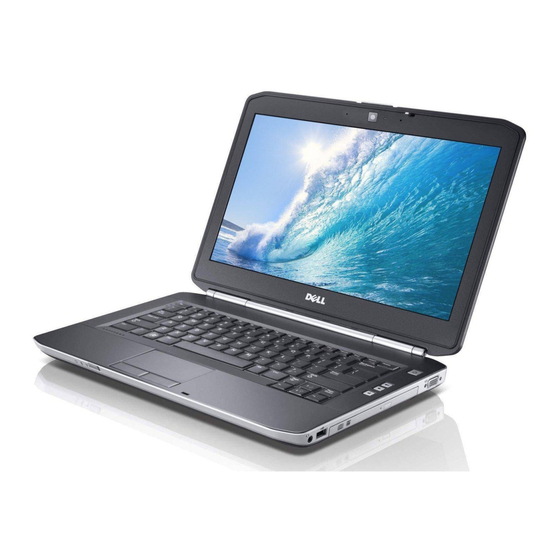

Dell Latitude E5420 L015420103R
Перейти в карточку товара
8 800 775 98 98

   Also See for Dell Latitude 5420

   Related Manuals for Dell Latitude 5420

   Summary of Contents for Dell Latitude 5420

  • Page 1

    Инструкция для Dell Latitude E5420 L015420103R Перейти в карточку товара 8 800 775 98 98...

  • Page 2

    Setup And Features Information About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Latitude 5420/E5420/E5420m — Front And Back View Figure 1. Front View 1. display-latch release switch 5. display latch 2. camera (optional) 6.

  • Page 3

    WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

  • Page 4

    Latitude 5520/E5520/E5520m — Front And Back View Figure 3. Front View 1. display latch 13. headphone connector 2. microphone 14. fingerprint reader (optional) 3. display-latch release switch 15. wireless switch 4. camera (optional) 16. power and battery status indicators 5. camera status light (optional) 17.

  • Page 5

    WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire.

  • Page 6

    CAUTION: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself, and pull firmly but gently to avoid damaging the cable. When you wrap the AC adapter cable, ensure that you follow the angle of the connector on the AC adapter to avoid damaging the cable.

  • Page 7: Specifications

    For more information regarding the configuration of your computer, click Start Help and Support and select the option to view information about your computer. System Information Chipset Latitude 5420/E5420/5520/E5520 Intel HM65 Express chipset Latitude E5420m/E5520m Intel GM45 Express chipset Processor Latitude 5420/5520/E5420/E5520...

  • Page 8

    Video Latitude 5420/E5420/5520/E5520 Latitude E5420m/E5520m Intel GM45 Memory Memory connector two DIMM slots Memory capacity 1 GB, 2 GB, 4 GB, and 8 GB Memory type Latitude 5420/E5420/5520/E5520 DDR3 SDRAM, 1333 MHz Latitude E5420m/E5520m DDR3 SDRAM, 1066MHz Minimum memory 1 GB...

  • Page 9

    Temperature range: Operating 0 °C to 35 °C (32 °F to 95 °F) Non Operating –40 °C to 65 °C (–40 °F to 149 °F) Physical Latitude 5420/E5420/ Latitude 5520/E5520/ E5420m E5520m Height 29.90 mm to 32.50 mm 30.20 mm to 33.20 mm (1.18 inches to...

  • Page 10: Finding More Information And Resources

    Environmental Temperature: Operating 0 °C to 35 °C (32 °F to 95 °F) Storage –40 °C to 65 °C (–40 °F to 149 °F) Relative humidity (maximum) : Operating 10% to 90% (noncondensing) Storage 5% to 95% (noncondensing) Altitude (maximum) Operating –15.2 m to 3048 m (–50 ft to 10,000 ft) Storage...

  • Page 12

    Dell Latitude E5420 L015420103R Описание Характеристики Аксессуары...
