Controls and their Functions

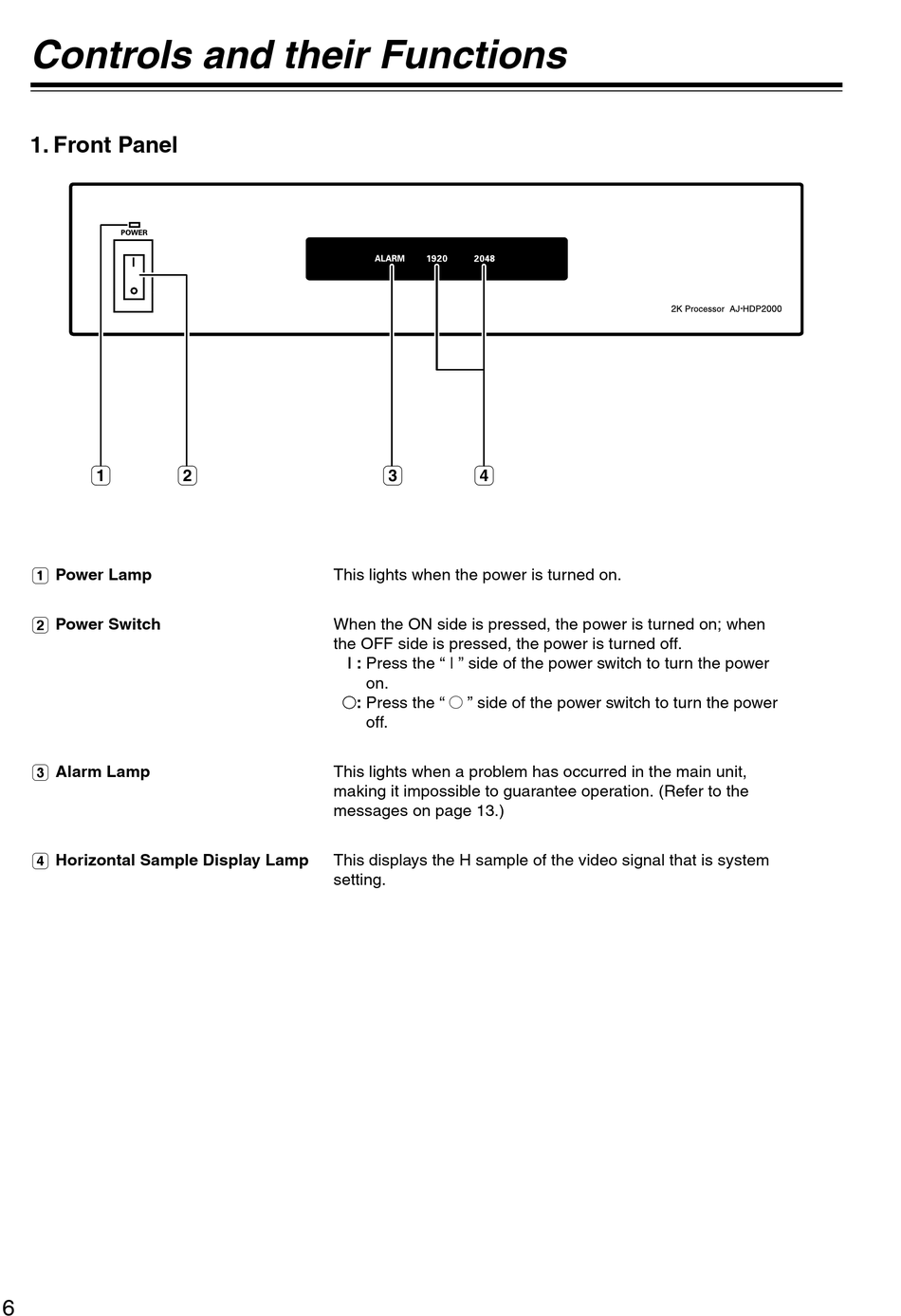

1. Front Panel

!1"
!1" Power Lamp
!2" Power Switch
!3" Alarm Lamp
!4" Horizontal Sample Display Lamp
6
!2"
This lights when the power is turned on.
When the ON side is pressed, the power is turned on; when
the OFF side is pressed, the power is turned off.
±: Press the " ± " side of the power switch to turn the power
This lights when a problem has occurred in the main unit,
making it impossible to guarantee operation. (Refer to the
messages on page 13.)
This displays the H sample of the video signal that is system
setting.
!3" !4"
| : Press the " | " side of the power switch to turn the power
on.
off.
