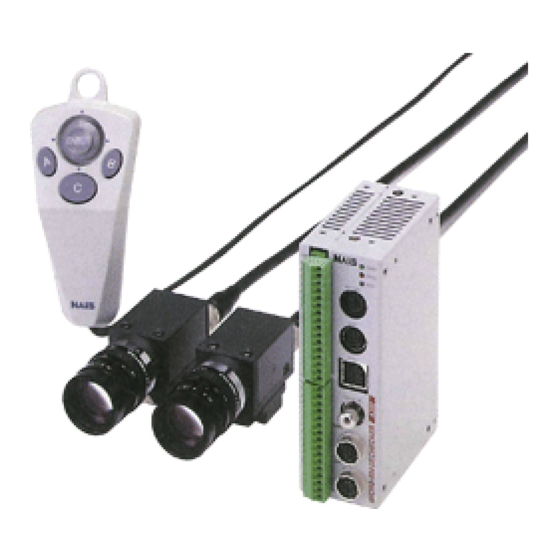

MICRO-IMAGECHECKER
®
A210
A110 MultiChecker V2 Series
I System configuration diagram
*1
Controller
ENTER
Keypad
C
Serial cable
Monitor cable
(Pin-BNC)
PLC (refer to P5)
CONTRAST
V-HOLD
BLIGHT
Panasonic
Video Monitor GP-BM
Monitor
High-speed
random cable
Camera extension cable
*2
I Table of Product Numbers
G MICRO-IMAGECHECKER A-Series Controller
Item
Specifications
Part No.
NPN Output
ANMA212V2
A210
Multi-Checker V2 : CE
PhotoMos Output
ANMA218V2
MICRO-IMAGECHECKER
A200 Series
A210
NPN Output
ANMA212
Multi-Checker : CE
NPN Output
ANMA112V2
A110
Multi-Checker V2 : CE
MICRO-IMAGECHECKER
PhotoMos Output
ANMA118V2
A100 Series
A110
NPN Output
ANMA112
Multi-Checker : CE
G Camera / Keypad / Monitor
Item
Specifications
Part No.
C mount camera
Progressive Double-speed Random: CE
ANM831
CS mount camera
support electric-shutter with 3 m cable
ANM832
support electric-shutter with 3 m cable: CE
ANM832CE
Keypad
with 2 m cable
ANM85202
with 3 m cable
ANM85203
with 2 m cable: CE
ANM85202CE
with 3 m cable: CE
ANM85203CE
Monitor
Panasonic GPBM910 (100 V AC/12 V DC)
AUGPBM910
G Camera cable
Item
Specifications
Part No.
Double-speed random
3 m
ANM84303
camera cable
3 m: CE
ANM84303CE
Camera extension cable
2 m extension: total 5 m
ANM84002
7 m extension : total 10 m
ANM84007
12 m extension: total 15 m
ANM84012
17 m extension: total 20 m
ANM84017
2 m extension : total 5 m: CE
ANM84002CE
7 m extension: total 10 m: CE
ANM84007CE
12 m extension: total 15 m: CE
ANM84012CE
17 m extension: total 20 m: CE
ANM84017CE
G Serial Cable
Item
Specifications
Part No.
COM port and PC (D-SUB : 9 pin) connection, 3 m
ANM81103
COM port
connecting cable
COM port and PLC (discrete-wire cable) connection, 3 m
ANM81303
TOOL port
COM port and PC (D-SUB : 9 pin) connection, 10 cm
ANM812001
connecting cable
Matsushita Electric Works, Ltd. Automation Controls Company
Head Office: 1048, Kadoma, Kadoma-shi, Osaka 571-8686, Japan
ARCT1B178E 200111-2YT
I Vision Backup-Tool Ver.2
PC
The product data created with the MICRO-IMAGECHECKER A
series and the image data stored in the controller can be stored
on a PC using Windows.
Stored data can be restored to the A series controller.
*
However, it is not possible to directly restore type data backed up using
Vision Backup-Tool with the previous product (Ver. 1) to V2 (Ver. 2). In
this case, use the dedicated data conversion software (freeware) to
convert the Ver. 1 type data for V2 use, then transfer it to V2 and perform
a backup again. If you require the data conversion software, contact your
Matsushita Automation Controls Co. Ltd. representative.
High-speed
random trigger camera
Lens
Middle ring
CS mount camera
*1 The A100 series connects to one camera.
*2 Use where necessary.
*3 When using 2 cameras with the A200 series,
*3
connect the same type of camera.
G Lens / middle ring
Item
Specifications
CS mount lens
f2.8 CS mount compact lens
f2.8 CS mount compact lens with lock
f4 CS mount compact lens
f4 CS mount compact lens with lock
f8 CS mount compact lens
f8 CS mount compact lens with lock
f6.5 C mount lens
C mount lens
f8.5 C mount lens
f8.5 C mount lens with lock
f16 C mount compact lens
f16 C mount compact lens with lock
f25 C mount compact lens
f25 C mount compact lens with lock
f50 C mount lens
f50 C mount lens with lock
f50 C mount compact lens
f50 C mount compact lens with lock
Middle ring
5 mm middle ring
(0.5/1/5/10/20/40 mm) middle ring
G Data backup software
Item
Specifications
Vision Backup-Tool Ver.2
English version
Microsoft windows NT4.0/95/98/Me/2000 compatible. An operating system is not included with this software.
G Accessories
Item
Specifications
I/O terminal block
For input: 1 piece, for output, 1 piece
BNC connector
Monitor BNC jack to PIN jack adapter
Unless otherwise specified, estimate and delivery prices do not include technician dispatching
and other related services. Therefore, for the situations given below, additional charges
may be added.
• Installation and trial operation guidance
• Inspections, adjustments, and repairs
• Technical support and instruction
To USA Customer
• Products sold by seller are covered by the warranty and patent
indemnification provisions in its Terms and Conditions of Sale only.
These materials are printed on ECF pulp.
These materials are printed with earth-friendly vegetable-based (soybean oil) ink.
COPYRIGHT © 2001 All Rights Reserved
Specifications are subject to change without notice.
11/2004
Part No.
ANM8828
ANM88281
ANM8804
ANM88041
ANM8808
ANM88081
ANB842
ANB843
ANB843L
ANB845N
ANB845NL
ANB846N
ANB846NL
ANB847
ANB847L
ANM8850
ANM88501
ANB84805
It won't stop advancing. The monstrously small A Series!
ANB848
Part No.
ANM70131V2
Part No.
ANMA8001
ANM8606
Image Processing Device
MICRO - IMAGECHECKER
A210
A110
MultiChecker Ver.2 Series
11/2004
®
