Connection with existing systems

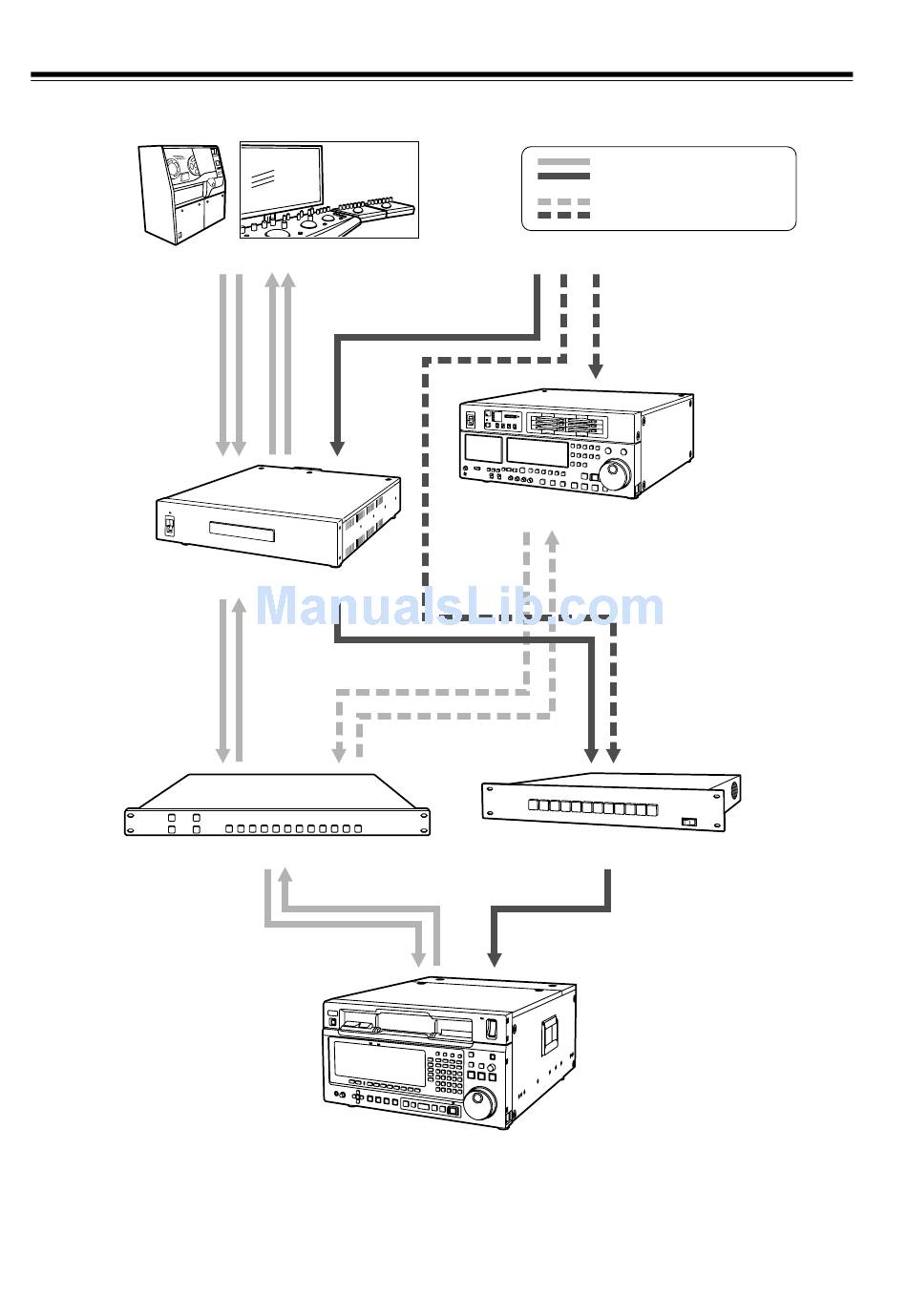

This is an example where the connections for the existing system and the 2K system are switched within the router.
Server/Color Corrector/Telecine
2048/1920 4:4:4
Dual-Link SDI Signals
To switch to the 2K system mode, select "2048 (PsF)" or "1920 (PsF)" in F3 (VIDEO) in SYSTEM SET UP menu on
the HD-D5 VTR.
For details, refer to pages 9 and 10 of the "Operating Instructions Supplement" for the AJ-HD3700H, AJ-HD3700A,
and AJ-HD3700B.
12
2K Processor (AJ-HDP2000)
HD SDI Signal Router
HD House Reference Signal
HD/SD Player/Recorder
HD-D5 VTRs
(AJ-HD3700H, AJ-HD3700A, AJ-HD3700B)
2K SYSTEM connection
Existing SYSTEM connection
HD analog Signal Router
