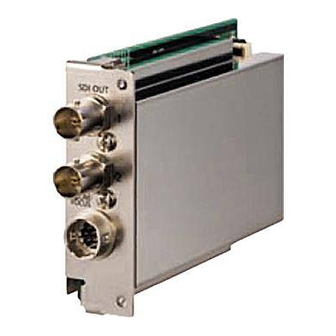

- Page 1 Operating Instructions SDI Card AW-HHD870N Model No. Before operating this product, please read the instructions carefully and save this manual for future use. VQTB0353 F0109S0...
-
Page 2: Safety Precautions
Safety precautions WARNING: CAUTION • TO REDUCE THE RISK OF FIRE OR ELECTRIC RISK OF ELECTRIC SHOCK SHOCK, DO NOT EXPOSE THIS APPARATUS TO DO NOT OPEN RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, • THE APPARATUS SHALL NOT BE EXPOSED TO DO NOT REMOVE COVER (OR BACK). - Page 3 For CANADA FCC Note: This Class A digital apparatus complies with Canadian This equipment has been tested and found to comply ICES-003. with the limits for a class A digital device, pursuant to Cet appareil numérique de la class A est conforme à Part 15 of the FCC Rules.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 10) Protect the power cord form being walked on or pinched particularly plugs,... -
Page 5: Table Of Contents
Contents Preface ................5 Mounting ................9 Standard accessories ............5 Connection ............... 11 Warning/caution for safety ..........6 Appearance ..............1 Precautions ................. 7 Specifications ..............13 Major operating controls and their functions ....... 8 Preface This product is an option card which can be installed in ... -
Page 6: Warning/Caution For Safety
Warning/Caution for safety WARNING CAUTION Refer all servicing to qualified personnel Do not drop the product, do not expose it to strong shock, To reduce the risk of electric shock, don’t remove cover or do not step on it, to prevent a fire and injuries. or back, unless you are a qualified personnel. -
Page 7: Precautions
Precautions Power off before connecting or disconnecting cables Operating temperature range Before plugging or unplugging the cables, be sure to Avoid using the product at a cold place below 1 °F switch power off. (–10 °C) or at a hot place above 113 °F (+5 °C) because extremely low or high temperature will adversely affect ... -
Page 8: Major Operating Controls And Their Functions
Serial digital component signal can be output. equipped with a remote control function for zoom focus. When using a Panasonic pan-tilt head (such as the AW-PH360, AW-PH00, AW-PH05 or AW-PH650), use the LENS I/F connector on the pan-tilt head instead of this connector. -
Page 9: Mounting
Mounting 1 Switch the camera off, and disconnect the power Caution connector and other cables from the camera. Be sure to ask your store, where you purchased the product, for mounting. 2 Loosen the four screws on the rear of the camera and ... - Page 10 Rear panel Option card slot cover Card setscrews (6 mm) Rear panel setscrews (8 mm) SDI card - 10 -...
-
Page 11: Connection
Connection Before cable connection, switch power off. Use the AC adapter AW-PS510A for power supply. Use the power cable supplied with AW-HE870. For details on connecting individual devices, refer to the respective operating instructions. For details on operating individual devices, refer to the respective operating instructions. ... -
Page 12: Appearance
Appearance Unit: inch (mm) 4-5/16 (109) 3-3/4 (95) 27/32 (21.5) - 1 -... -
Page 13: Specifications
Specifications Power requirements: 1 V DC (supplied from camera) Power consumption: Approx. . W indicates safety information. Allowable temperature ranges: For storage: – °F to 10 °F (–0 °C to +60 °C) For guaranteeing operation: 1 °F to +113 °F (–10 °C to +5 °C) Operating humidity: 30 % to 90 % (without condensation) 7/3˝... - Page 14 PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY UNIT COMPANY OF PANASONIC CORPORATION OF NORTH AMERICA Headquarters: 3 Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-5300 EASTERN ZONE: 3 Panasonic Way 4E-7, Secaucus, NJ 07094 (201) 348-7196 WESTERN ZONE: 3330 Cahuenga Blvd. West, Los Angeles, CA 90068 (323) 438-3608...
