PPPoE Mode

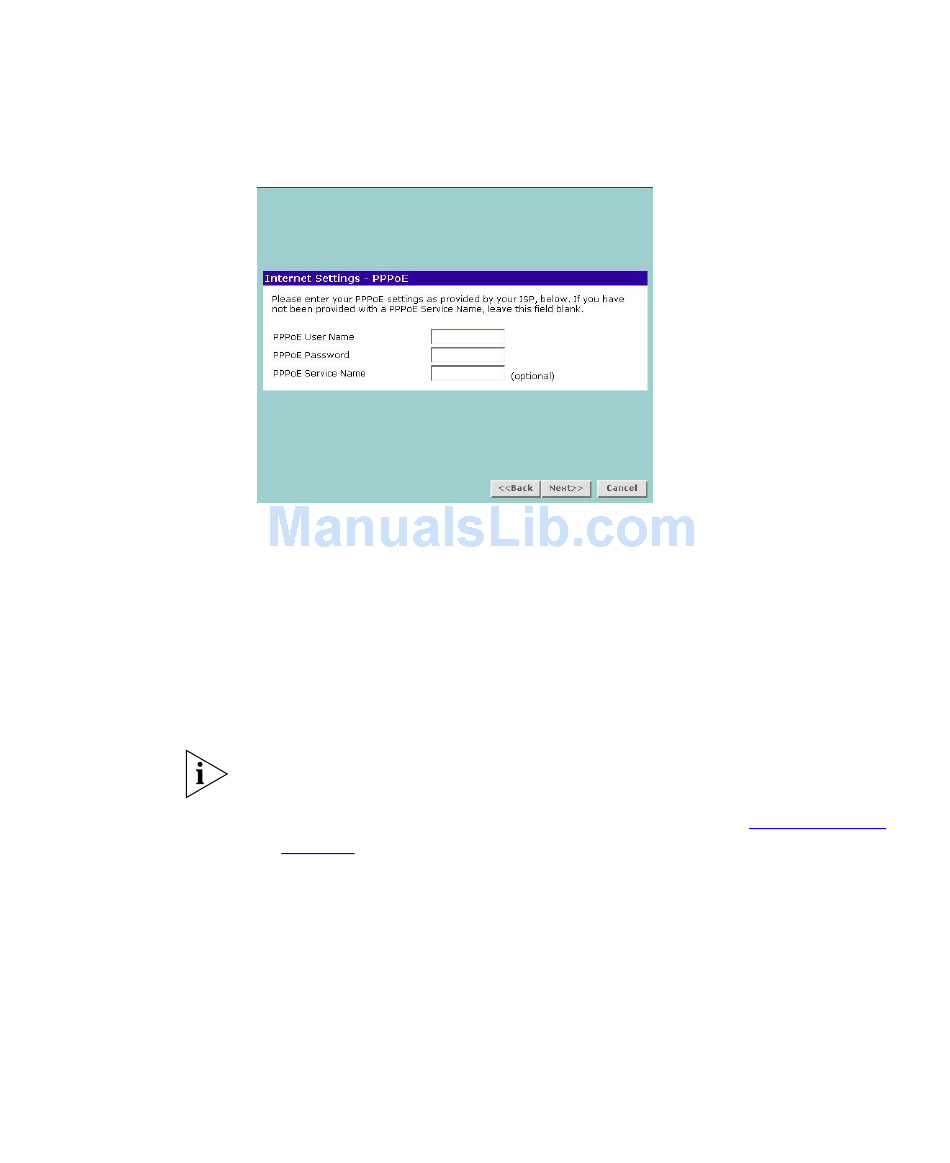

Figure 17 PPPoE Screen
To setup the gateway for use with a PPP over Ethernet (PPPoE)
connection, use the following procedure:
1 Enter your PPP over Ethernet user name in the PPPoE User Name text box.
2 Enter your PPP over Ethernet password in the PPPoE Password text box.
3 Enter your PPP over Ethernet service name in the PPPoE Service Name text
box.
This is optional. Not all ISPs require a PPPoE service name.
Do not enter anything in this box if your ISP does not require a service
name.
4 Check all of your settings, and then click Next. Refer to
on page 38 for more information.
"LAN Settings"
