KitchenAid KERS807SBL - 30 Inch Electric Range Parts Manual page 9

30" free standing electric oven self clean
Hide thumbs

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
9760774 Element, Broil
2
4449154 Screw
6 W10179152 Rack, Oven
7
9760768 Element, Bake
8
9755542 Probe, Meat
W10283311

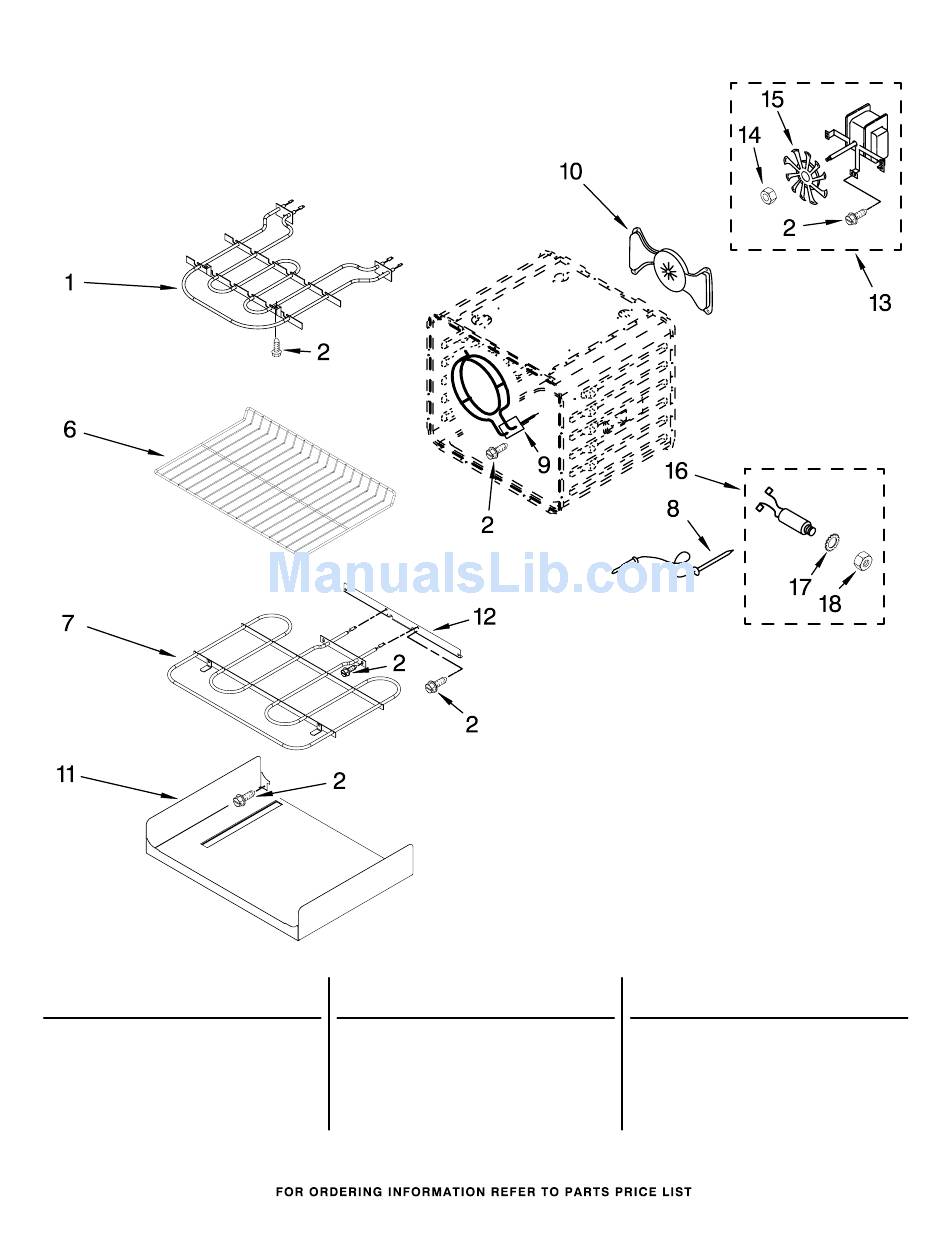

INTERNAL OVEN PARTS
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black)
Illus.
Part
No.
No.
9
9760769 Element,
10
9756690 Cover, Fan
11
4455037 Tray, Hidden Bake
12
4450039 Cover, Bake Tray
13 W10116228 Motor, Convection
(Pure White)
(Stainless)
Illus.
DESCRIPTION
No.
14 W10116349 Nut
Convection
15 W10116351 Blade, Fan
16
17
18
9
Part
No.
DESCRIPTION
9755543 Jack, Meat Probe
9755547 Lock Washer
9755546 Hex Nut
