KitchenAid KERS807SBL - 30 Inch Electric Range Parts Manual page 7

30" free standing electric oven self clean
Hide thumbs

Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
Support, Drawer
Rail
9757687 Right
9757686 Left
2
9763501BL Support, Front
& Rear
3
Brace, Drawer
4453720 Right
4453721 Left
5
Side, Base
9759953 Right
9759954 Left
W10283311

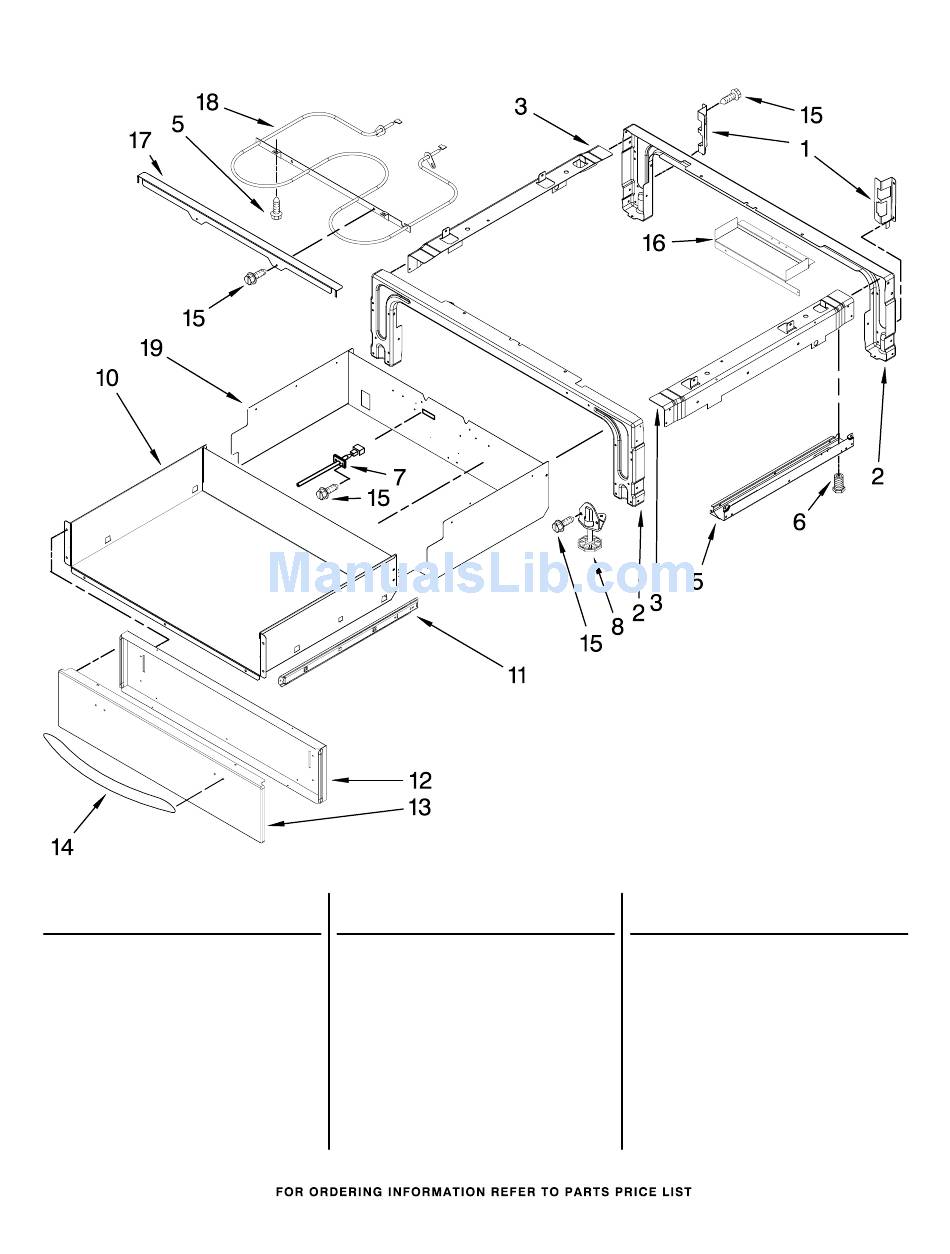

DRAWER PARTS
For Models: KERS807SBL03, KERS807SWW03, KERS807SSS03
(Black)
Illus.
Part
No.
No.
6 W10058460 Foot
7
8274149 Thermistor
8
3196037 Foot Assembly
10 W10164164 Drawer
11
W10155633 Right
W10155632 Left
12 W10144431 Panel, Drawer
13
W10203760 Black
W10203762 White
W10203763 Stainless
(Pure White)
(Stainless)
Illus.
DESCRIPTION
No.
14
Drawer Slide
15
16 W10153100 Cover, Terminal
17
18
Front, Drawer
19
7
Part
No.
DESCRIPTION
Handle, Drawer
9761573BL Black
9761573WH White
9761573SS Stainless
3196537 Screw
9758676 Support, Element
9760775 Element, Warming
Drawer
9763518 Enclosure, Warming
Drawer
