KitchenAid KEBC247VBL - 24 Inch Double Electric Wall Oven Parts Manual

24" built−in electric double oven self−clean
Hide thumbs


Advertisement

Quick Links

OVEN PARTS

24" BUILT−IN ELECTRIC
For Models: KEBC247VBL03, KEBC247VWH03
DOUBLE OVEN
SELF−CLEAN
(Black)
(White)
1−11 Litho in U.S.A. (amd) (psw)
1
Part No. W10387544 Rev. A

Advertisement

Table of Contents
loading

  Related Manuals for KitchenAid KEBC247VBL - 24 Inch Double Electric Wall Oven

  Summary of Contents for KitchenAid KEBC247VBL - 24 Inch Double Electric Wall Oven

  • Page 1: Oven Parts

    OVEN PARTS 24" BUILT−IN ELECTRIC For Models: KEBC247VBL03, KEBC247VWH03 DOUBLE OVEN SELF−CLEAN (Black) (White) 1−11 Litho in U.S.A. (amd) (psw) Part No. W10387544 Rev. A...

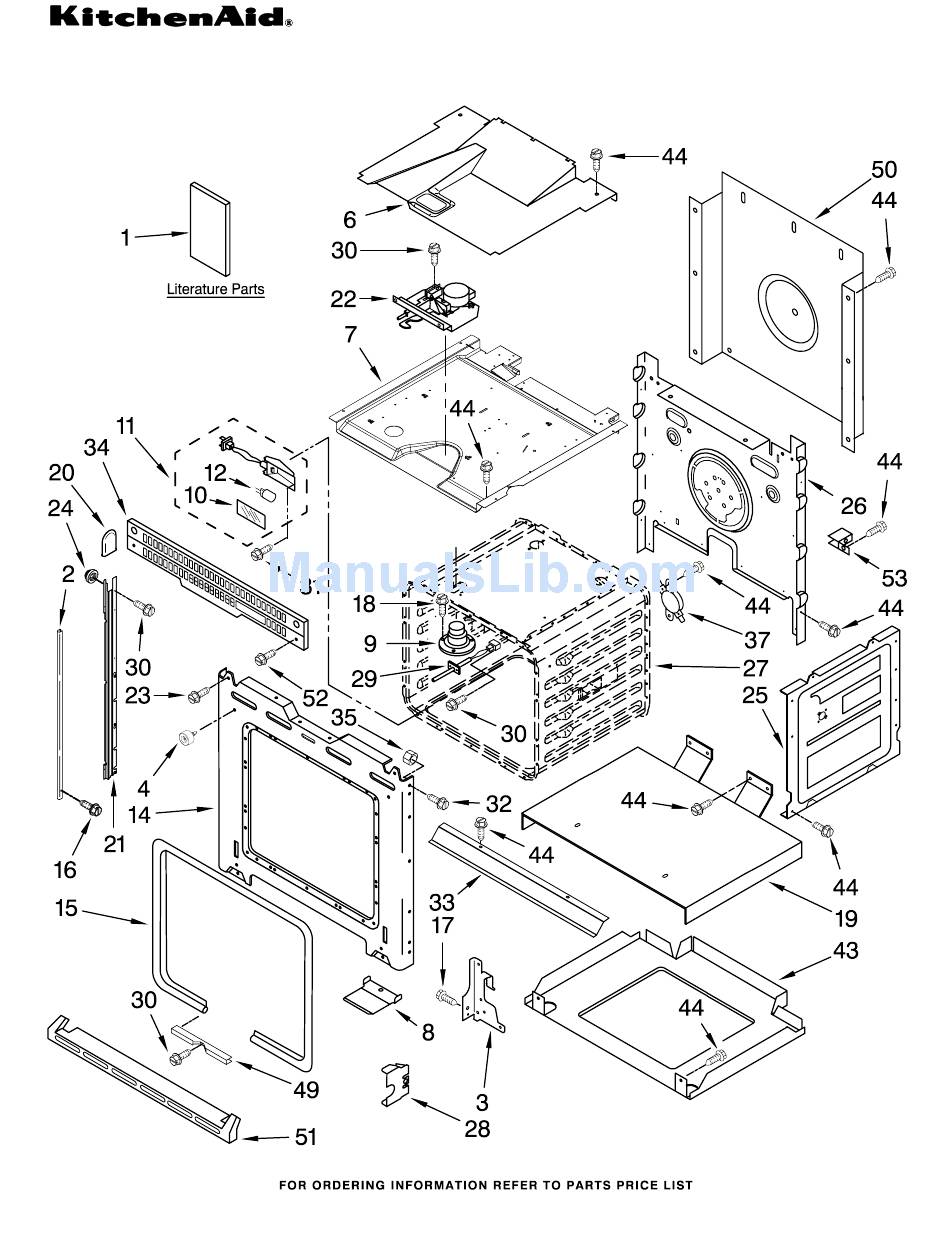

  • Page 2 OVEN PARTS For Models: KEBC247VBL03, KEBC247VWH03 (Black) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 29 W10131825 Sensor 4455863 Top Chassis Literature Parts 4449154 Screw Deflector, Vent W10045010 Installation 4449748 Screw Instructions 4450038 Screw 4455807 Black Owners Manual 9760675 Deflector, Vent W10339573 White W10203458 English...
  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Models: KEBC247VBL03, KEBC247VWH03 (Black) (White) Illus. Part DESCRIPTION Panel, Control W10358920 Black W10358940 White 4452260 Spacer, Foam 3 W10251587 Control, Electronic 4449745 Screw Assembly, Membrane 8302743 Black 8302746 White 3400832 Screw 8301848 Latch, Sister Board W10387544...
  • Page 4: Oven Door Parts

    OVEN DOOR PARTS For Models: KEBC247VBL03, KEBC247VWH03 (Black) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 8303698 Door Liner Assembly, 4457101 Shield, Heat Hinge, Door Door Glass 4457112 Shield, Heat 9760569 Right 8300836 Black (Bottom) 9760570 Left 8300837 White Retainer, Clip 4449247 Glass, Inner Door Handle...
  • Page 5 INTERNAL OVEN PARTS For Models: KEBC247VBL03, KEBC247VWH03 (Black) (White) Illus. Part DESCRIPTION 1 W10207400 Element, Broil 9755547 Lock Washers 4448716 Rack, Oven 5 W10207398 Element, Bake 4455035 Tray, Hidden Bake 4450039 Cover, Bake Tray 4449809 Screw 4449154 Screw 10 W10116228 Motor, Convection Fan 11 W10116351 Blade, Fan 12 W10116349 Nut...
  • Page 6 TOP VENTING PARTS For Models: KEBC247VBL03, KEBC247VWH03 (Black) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 4451758 Foam, Block 9760587 Transformer Side, Control Top 4451759 Vent, Exhaust 4455178 Elbow, Vent−Top 4451597 Right Blower 4455177 Elbow, Vent−Bottom 4451598 Left W10016550 Lower Oven 45MM 7401P038−60 Block, Terminal 9759135 Back, Control...
  • Page 7: Optional Parts

    OPTIONAL PARTS For Models: KEBC247VBL03, KEBC247VWH03 (Black) (White) Illus. Part DESCRIPTION OPTIONAL PARTS NOT INCLUDED PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) WIRING HARNESS PARTS...

This manual is also suitable for:

Kebc247vbl03Kebc247vwh03
