KitchenAid KESS907SBL04 Parts List

30" slide−in electric oven self clean
Hide thumbs

Advertisement

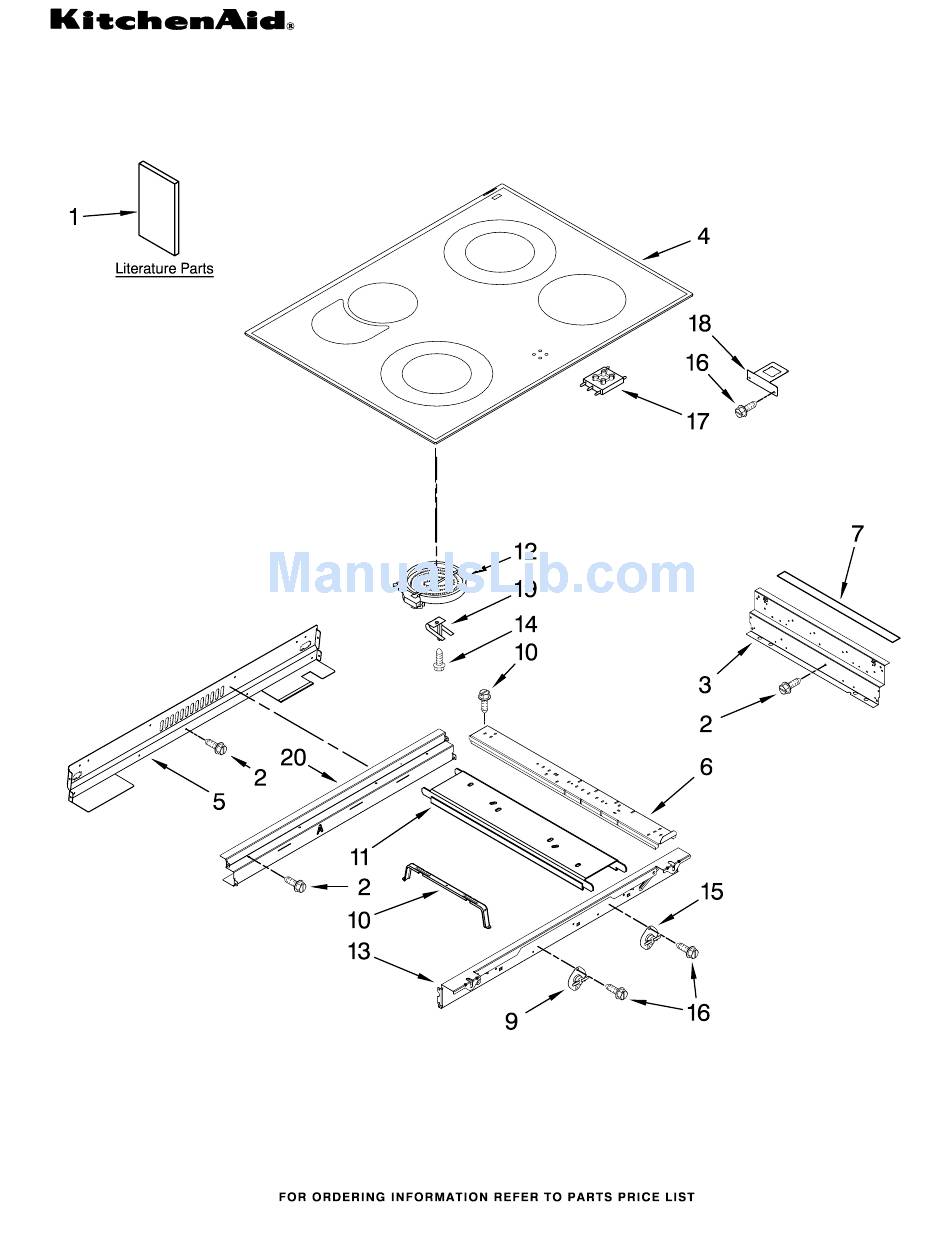

COOKTOP PARTS
30" SLIDE−IN
ELECTRIC OVEN
For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04
SELF CLEAN
(Black)
(Designer White)
(Stainless)
Part No. W10269054 Rev. A
3−09 Litho in U.S.A. (amd) (eeb)
1

Advertisement

loading

  Also See for KitchenAid KESS907SBL04

  Related Manuals for KitchenAid KESS907SBL04

  Summary of Contents for KitchenAid KESS907SBL04

  • Page 1 COOKTOP PARTS 30" SLIDE−IN ELECTRIC OVEN For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 SELF CLEAN (Black) (Designer White) (Stainless) Part No. W10269054 Rev. A 3−09 Litho in U.S.A. (amd) (eeb)
  • Page 2 COOKTOP PARTS For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 (Black) (Designer White) Illus. Part DESCRIPTION Literature Parts W10118260 Installation Instructiions W10190622 Use & Care Guide W10220962 Tech Sheet 9763467 Easy Set Guide 9757680 Anti−Tip Instructions Safe Cooking Tips 9762761 English W10065852 French...
  • Page 3: Oven Parts

    OVEN PARTS For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 (Black) (Designer White) (Stainless) W10269054...
  • Page 4 For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 Illus. Part DESCRIPTION Trim, Side Right W10109540 Black W10109570 White W10140548 Stainless Left W10109490 Black W10109520 White W10140547 Stainless 3400832 Screw Hinge Receiver 4455606 Right 4455605 Left 4 W10105790 Bumper, Door (2) 3196537 Screw 3196160 Screw...
  • Page 5: Door Parts

    DOOR PARTS For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 (Black) (Designer White) (Stainless) W10269054...
  • Page 6 DOOR PARTS For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 (Black) (Designer White) Illus. Part DESCRIPTION 9759413 Panel, Door 9757706 Glass, Inner 4451722 Insulation, Door 4457132 Retainer, Glass Hinge, Oven Door 9760579 Right 9760580 Left 9759225 Glass, Inner 4457114 Shield, Heat Bottom 9759229 Bracket, Glass...
  • Page 7 For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 Illus. Part DESCRIPTION Support, Drawer Rail 9757687 Right 9757686 Left 9763501BL Support, Front & Rear Brace, Drawer 4453720 Right 4453721 Left 4 W10162096 Screw W10269054 DRAWER PARTS (Black) (Designer White) Illus. Part DESCRIPTION Side, Base...
  • Page 8: Control Panel Parts

    For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 Illus. Part DESCRIPTION Control Panel W10190660 Black W10190661 White W10190662 Stainless 2 W10110246 Gasket, Console 3 W10181439 Control, Electric 4 W10105370 Shield, Console Vent 5 W10117524 Bracket, Console 3196160 Screw CONTROL PANEL PARTS (Black) (Designer White) Illus.
  • Page 9 For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 Illus. Part DESCRIPTION 9760774 Element, Broil 4449154 Screw 9755543 Jack, Meat Probe 9755547 Lock Washer 9755546 Hex Nut W10269054 INTERNAL OVEN PARTS (Black) (Designer White) Illus. Part DESCRIPTION 6 W10179152 Rack, Oven 9760768 Element, Bake...
  • Page 10 TOP VENTING PARTS For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 (Black) (Designer White) Illus. Part DESCRIPTION 4451759 Vent, Exhaust 4455178 Elbow, Vent Top 9759320 Blower 4451758 Block, Foam 4455177 Elbow, Vent Bottom 6 W10143041 Bracket, Terminal 4449809 Screw (2) 4449040 Screw 4455352 Bracket, Blower...
  • Page 11: Optional Parts

    For Models: KESS907SBL04, KESS907SWW04, KESS907SSS04 Illus. Part DESCRIPTION Optional Parts Not Included PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.)
