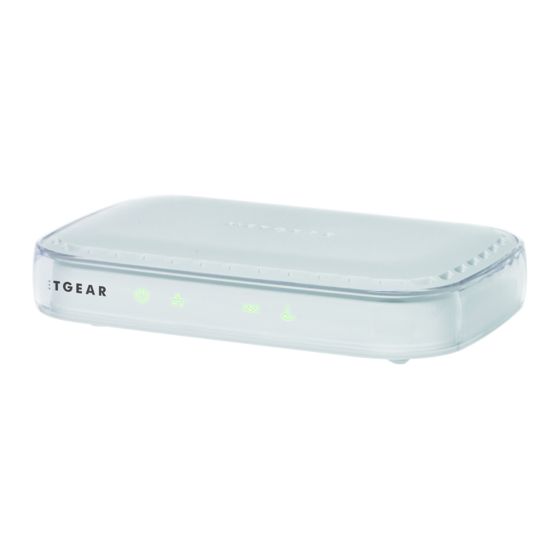

ADSL2+ Modem Router
DM111PSPv2

User Manual

NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134 USA
202-10449-01
December 2008
v1.0

Advertisement

Table of Contents
loading

Related Manuals for NETGEAR DM111PSP - ADSL2+ Ethernet Modem

Summary of Contents for NETGEAR DM111PSP - ADSL2+ Ethernet Modem

  • Page 1: User Manual

    ADSL2+ Modem Router DM111PSPv2 User Manual NETGEAR, Inc. 350 East Plumeria Drive San Jose, CA 95134 USA 202-10449-01 December 2008 v1.0...
  • Page 2 In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to make changes to the products described in this document without notice. NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit layout(s) described herein.
  • Page 3 European Union Statement of Compliance Hereby, NETGEAR, Inc. declares that this modem router is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Èesky NETGEAR, Inc. tímto prohlašuje, že tento ADSL2+ Modem Router DM111PSPv2 je ve [Czech] shodì...
  • Page 4 ADSL2+ Modem Router DM111PSPv2 [Portuguese] com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko NETGEAR, Inc. izjavlja, da je ta ADSL2+ Modem Router DM111PSPv2 v skladu z [Slovenian] bistvenimi zahtevami in ostalimi relevantnimi doloèili direktive 1999/5/ES. Slovensky NETGEAR, Inc. týmto vyhlasuje, že ADSL2+ Modem Router DM111PSPv2 spåòa [Slovak] základné...
  • Page 5 When used near a radio or TV receiver, it may become the cause of radio interference. Read instructions for correct handling. Product and Publication Details DM111PSPv2 Model Number: December 2008 Publication Date: Modem Router Product Family: ADSL2+ Modem Router DM111PSPv2 Product Name: Home Home or Business Product:...
  • Page 6 v1.0, December 2008...

  • Page 7: Table Of Contents

    Contents ADSL2+ Modem Router DM111PSPv2 User Manual About This Manual How to Use This Book ...................... xi Conventions, Formats, and Scope ...................xii How to Use This Manual ....................xiii How to Print This Manual ....................xiii Revision History .......................xiv Chapter 1 Configuring Your Internet Connection Installation Requirements ....................1-1 Using the Smart Wizard to Set Up Your Modem Router ..........1-2 Logging In to the Modem Router ..................1-2...
  • Page 8 ADSL2+ Modem Router DM111PSPv2 User Manual Diagnostic Utilities and Rebooting the Modem Router ..........2-11 Running Diagnostics Tests ..................2-11 Routing Table ......................2-12 Remote Access ......................2-13 Chapter 3 Security and Firewall Protection Firewall Settings ......................3-1 Firewall Rules (IP Filtering) ..................3-2 Port Forwarding (Inbound Rules) ................3-6 Port Triggering (Outbound Rules) ................3-8 Configuring a DMZ Host ....................3-10...
  • Page 9 ADSL2+ Modem Router DM111PSPv2 User Manual Cannot Log in to the Modem Router ................6-4 Modem Router Does Not Save Configuration Changes ..........6-6 Troubleshooting the Internet Connection ................6-6 Troubleshooting PPPoE or PPPoA Connection ............6-7 Troubleshooting Internet Browsing ................6-7 Restoring the Default Configuration and Password ............6-8 Using the Reset Button ....................6-8 Problems with Date and Time ..................6-8 Appendix A...

  • Page 10: Adsl2+ Modem Router Dm111Pspv2 User Manual

    ADSL2+ Modem Router DM111PSPv2 User Manual v1.0, December 2008...

  • Page 11: About This Manual

    About This Manual The NETGEAR ® ADSL2+ Modem Router DM111PSPv2 User Manual describes how to install, configure and troubleshoot the ADSL2+ Modem Router. The information in this manual is intended for readers with intermediate computer and Internet skills. How to Use This Book This document describes configuration menu commands for the ADSL2+ Modem Router software.

  • Page 12: Conventions, Formats, And Scope

    ADSL2+ Modem Router DM111PSPv2 User Manual Conventions, Formats, and Scope The conventions, formats, and scope of this manual are described in the following paragraphs: • Typographical Conventions. This manual uses the following typographical conventions: Emphasis, books, CDs, file and server names, extensions Italic User input, IP addresses, GUI screen text Bold...

  • Page 13: How To Use This Manual

    Double-click a link in the table of contents or index to navigate directly to where the topic is described in the manual. • button to access the full NETGEAR, Inc. online knowledge base for the product model. • Links to PDF versions of the full manual and individual chapters.

  • Page 14: Revision History

    ADSL2+ Modem Router DM111PSPv2 User Manual – Printing a PDF version of the complete manual. Use the Complete PDF Manual link at the top left corner of any page. • Click the Complete PDF Manual link at the top left corner of any page in the manual. The PDF version of the complete manual opens in a browser window.

  • Page 15: Configuring Your Internet Connection

    This chapter provides further details about these settings, as well as instructions on how to log in to the modem router for further configuration. Note: NETGEAR recommends using the Smart Wizard™ Installation Assistant on the Resource CD for initial configuration, as described in the ADSL2+ Modem Router Setup Manual.

  • Page 16: Using The Smart Wizard To Set Up Your Modem Router

    America including Earthlink, AT&T, Qwest, and Verizon. For any NETGEAR product installation support and compatibility concerns, please call NETGEAR at 1-888-NETGEAR, as ISP support for NETGEAR products may be limited. Please only call your ISP to obtain the log in user name and password.
  • Page 17 ADSL2+ Modem Router DM111PSPv2 User Manual A window similar to the following login window opens: Figure 1-1 Note: After you log in to the modem router, you will have the option of changing the modem router’s LAN IP address. If you do so, you will need to use the revised IP address to log in to the modem router in the future.

  • Page 18: Setting Up Your Modem Router Manually

    ADSL2+ Modem Router DM111PSPv2 User Manual Figure 1-2 on page 1-3 shows whether or not the modem router is connected to the Internet, and the basic Internet connection settings. Setting Up Your Modem Router Manually If you elect not to use the Smart Wizard, you can set up the modem router manually. However, you need to prepare the following before you can set up your modem: •...

  • Page 19: Using The Setup Wizard To Auto-Detect The Internet Connection

    • DNS servers are required to perform the function of translating an Internet name such as to a numeric IP address. For www.netgear.com a fixed IP address configuration, you must obtain DNS server addresses from your ISP and enter them manually here.

  • Page 20: Using Quick Setup To Configure The Modem Router

    DNS servers are required to perform the function of translating an Internet name such as to a numeric IP address. For a www.netgear.com fixed IP address configuration, you must obtain DNS server addresses from your ISP and enter them manually here.
  • Page 21 ADSL2+ Modem Router DM111PSPv2 User Manual 2. To bypass the Setup Wizard, select No, and then click Next. The Quick Setup screen displays: Figure 1-5 3. Enter the settings in each Quick Setup screen. These settings are described in Table 1-2.

  • Page 22: How The Internet Connection Works

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 1-2. Quick Setup Screen Settings (continued) Screen Name Settings Configure Internet Connection- Enter the PPP user name and password that you use to log on. These PPP User Name and Password fields are case-sensitive. Specify how the session must be established: •...

  • Page 23: Managing Your Modem Router

    Chapter 2 Managing Your Modem Router This chapter describes how to perform management tasks on your ADSL2+ Modem Router DM111PSPv2. To use the features described in this chapter, log in to the modem router as described in “Logging In to the Modem Router” on page 1-2.

  • Page 24: Backing Up, Restoring, Or Erasing Your Settings

    ADSL2+ Modem Router DM111PSPv2 User Manual 2. Optionally, enter a new user name. 3. Enter the old password. 4. Type the new password and confirm the new password. 5. Optionally, enter a new value in minutes to specify when the administrator login times out. The default is 5 minutes.

  • Page 25: Restoring The Configuration From A File

    The software of the ADSL2+ Modem Router is stored in flash memory, and can be upgraded as new software is released by NETGEAR. Upgrade files can be downloaded from the NETGEAR website. If the upgrade file is compressed (.zip file), you must first extract the binary (.bin or .img) file before uploading it to the modem router.
  • Page 26 ADSL2+ Modem Router DM111PSPv2 User Manual To upgrade the modem router firmware: Note: NETGEAR recommends that you back up your configuration before doing a firmware upgrade. After the upgrade is complete, you may need to restore your configuration settings. 1. Download and unzip the new software file from the NETGEAR website.

  • Page 27: Network Management Information

    ADSL2+ Modem Router DM111PSPv2 User Manual Network Management Information The modem router provides a variety of status and usage information which is discussed below. Viewing the Router Status To view the router status, select Router Status in the Maintenance section of the main menu. The following screen displays: Figure 2-4 Managing Your Modem Router...
  • Page 28 ADSL2+ Modem Router DM111PSPv2 User Manual The following table explains the fields on the Router Status screen. Table 2-1. Router Status Fields Field Description System Up Time The time that the modem router has been connected to the Internet in the format days:hours:minutes:seconds. Account Name The account name assigned to the modem router during setup.

  • Page 29: Viewing Attached Devices

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 2-1. Router Status Fields (continued) Field Description Router Router Status The connection status of the modem router. Downstream The speed at which the modem router is receiving data from the Connection Speed ADSL line. Upstream The speed at which the modem router is transmitting data to the Connection Speed...

  • Page 30: Viewing The Adsl Line Status

    ADSL2+ Modem Router DM111PSPv2 User Manual Viewing the ADSL Line Status In the Maintenance section of the main menu, select ADSL Line Status to display the following screen: Figure 2-6 The upper table in Figure 2-6 indicates how the modem router has detected the ADSL parameters are configured, except for the “Line Up Time”, which indicates the time elapsed since the last reset or power cycle.

  • Page 31: Setting Up The System Log

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 2-2. Statistics Fields (continued) Field Description Noise Margin This is the signal-to-noise ratio and is a measure of the quality of the signal on the line. The higher the margin, the better the quality. Line Attenuation The line attenuation will increase the further you are physically located from your ISP’s facilities.
  • Page 32 ADSL2+ Modem Router DM111PSPv2 User Manual 2. Specify the settings for the log: • Log. Enable or disable the log. • Log Level. Specify the type of information logged: – Emergency – Alert – Critical – Error – Warning – Notice –...

  • Page 33: Diagnostic Utilities And Rebooting The Modem Router

    ADSL2+ Modem Router DM111PSPv2 User Manual Diagnostic Utilities and Rebooting the Modem Router The modem router has a diagnostics feature. You can use the Diagnostics screen to perform the following functions from the modem router: • Perform a diagnostic test to check that the unit is working properly. •...

  • Page 34: Routing Table

    ADSL2+ Modem Router DM111PSPv2 User Manual Figure 2-10 Routing Table On the Diagnostics screen, click Display. The following figure shows a typical routing table. Figure 2-11 2-12 Managing Your Modem Router v1.0, December 2008...

  • Page 35: Remote Access

    ADSL2+ Modem Router DM111PSPv2 User Manual Remote Access You can set up the modem router to allow remote access. 1. In the Advanced section of the main menu, select Remote Management. The following screen displays: Figure 2-12 2. Select the Internet connection for which you want to allow remote access from the drop-down list.

  • Page 36: Figure

    ADSL2+ Modem Router DM111PSPv2 User Manual • PING. Select this check box to configure the modem router to reply to a ping command under a DOS prompt. 4. As an optional step, you can specify authorized IP addresses that can be used to access the modem router.

  • Page 37: Security And Firewall Protection

    Chapter 3 Security and Firewall Protection This chapter describes how to use the basic firewall features of the ADSL2+ Modem Router DM111PSPv2 to protect your network. This chapter includes: • “Firewall Settings” in the following section • “Configuring a DMZ Host” on page 3-10 •...

  • Page 38: Firewall Rules (Ip Filtering)

    ADSL2+ Modem Router DM111PSPv2 User Manual Before starting, you need to determine which type of protocol, service, application, or game you will provide, and the IP address of the computer that will provide the service. Be sure that the computer’s IP address never changes. Note: To assure that the same computer always has the same IP address, use the reserved IP address feature.
  • Page 39 ADSL2+ Modem Router DM111PSPv2 User Manual To set up firewall rules: 1. In the Advanced section of the main menu, select Firewall Rules to display the Firewall Rules screen: Figure 3-1 2. Enable IP filtering by selecting the Enabled radio button. 3.
  • Page 40 ADSL2+ Modem Router DM111PSPv2 User Manual Outbound Firewall Traffic Rules When the Outbound Traffic radio button is selected and you click Add in the Firewall Rules screen (see Figure 3-1 on page 3-3), the Add New Outbound IP Filtering Rule screen displays (see following page).
  • Page 41 ADSL2+ Modem Router DM111PSPv2 User Manual Table 3-1. Outbound IP Filtering Rule Settings (continued) Settings Description Source IP Address Make a selection from the drop-down list: • ALL. The rule applies to all source IP addresses. • SINGLE. Enter the source IP address in the “IP addr.” field. •...

  • Page 42: Port Forwarding (Inbound Rules)

    ADSL2+ Modem Router DM111PSPv2 User Manual Create a new inbound IP filtering rule, and then click Apply to add the rule to the inbound traffic rules table in the Firewall Rules screen (see Figure 3-1 on page 3-3). Table 3-1 describes the settings on the Add New Inbound IP Filtering Rule screen.
  • Page 43 ADSL2+ Modem Router DM111PSPv2 User Manual Note: Some residential broadband ISP accounts do not allow you to run any server processes (such as a Web or FTP server) from your location. Your ISP may periodically check for servers and may suspend your account if it discovers any active services at your location.

  • Page 44: Port Triggering (Outbound Rules)

    ADSL2+ Modem Router DM111PSPv2 User Manual Figure 3-5 – Next to From Internet Host IP Address, select ALL (the default) to allow this service to be used by everyone in your network. Otherwise, select SINGLE and enter the IP address of one computer to restrict the service to a particular computer, or SUBNET to restrict the service to a subnet.
  • Page 45 ADSL2+ Modem Router DM111PSPv2 User Manual Note: If you use applications such as multi-player gaming, peer-to-peer connections, real time communications such as instant messaging, or remote assistance (a feature in Windows XP), you should also enable UPnP (see “Enabling Universal Plug and Play (UPnP)”...

  • Page 46: Configuring A Dmz Host

    ADSL2+ Modem Router DM111PSPv2 User Manual Figure 3-7 – To specify the rules, select the Protocol from the drop-down list, and fill in the Starting Port and Ending Port fields. This information can be obtained from the game or applications manual or the product’s support website. 3.

  • Page 47: Enabling Universal Plug And Play (Upnp)

    ADSL2+ Modem Router DM111PSPv2 User Manual By default, there is no DMZ host, and the Discarded radio button is selected. To activate a DMZ host: 1. Select the Forwarded to the DMZ host radio button. 2. Enter the IP address for the DMZ host. 3.
  • Page 48 ADSL2+ Modem Router DM111PSPv2 User Manual 3-12 Security and Firewall Protection v1.0, December 2008...

  • Page 49: Advanced Configuration

    Chapter 4 Advanced Configuration This chapter describes how to perform advanced configuration for you ADSL2+ Modem Router DM111PSPv2. For Advanced firewall settings, see Chapter 3, “Security and Firewall Protection.” For advanced WAN settings, see Chapter 5, “Advanced WAN Configuration.” To use the features described in this chapter, log in to the modem router as described in “Logging In to the Modem Router”...
  • Page 50 ADSL2+ Modem Router DM111PSPv2 User Manual Figure 4-1 2. Check the LAN IP address of your router, which is usually printed on a label on the bottom or at the rear of the device. Note how the address is comprised of four numbers separated by period characters. If necessary, change the LAN IP address of the modem router so that the two left-most numbers of the address are the same as the two left-most numbers of the router’s LAN IP address, and the third number in the modem router’s address is different from the third number in the...

  • Page 51: Understanding The Lan Ip Settings

    ADSL2+ Modem Router DM111PSPv2 User Manual 3. By default, most routers (and all NETGEAR routers) include an active DHCP server. If this is the case for your router, select the Off radio button to disable the DHCP server in the modem router.

  • Page 52: Reserved Ip Addresses

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 4-1. LAN IP Settings (continued) Settings Description DHCP Server DHCP Server On The modem router is set up by default to be a DHCP server, Configuration which provides TCP/IP configuration for computers that are connected to it.

  • Page 53: Static Routes

    ADSL2+ Modem Router DM111PSPv2 User Manual 3. In the Assigned IP Address field, type the IP address to assign to the computer or server. Choose an IP address from the modem router’s LAN subnet, such as 192.168.0.2. 4. Click Apply to enter the reserved address into the table. Note: The reserved address will not be assigned until the next time the computer contacts the DHCP server.
  • Page 54 ADSL2+ Modem Router DM111PSPv2 User Manual To configure a static route: 1. In the Advanced section of the main menu, select Static Routes to display the Static Routes screen: Figure 4-2 2. Click Add to display the Add New Static Route screen. Figure 4-3 3.

  • Page 55: Igmp Proxy

    ADSL2+ Modem Router DM111PSPv2 User Manual • WAN Interface. Forward packets to a WAN interface by selecting one from the drop- down list. 6. Click Apply to save your changes and to add the static route to the routing table in the Static Routes screen.

  • Page 56: Internet Time Settings

    ADSL2+ Modem Router DM111PSPv2 User Manual Internet Time Settings To synchronize your router with other network devices, you can set its time manually or with an Internet time server. In the Advanced section of the main menu, select Internet Time. The following screen displays: Figure 4-5 The following settings are available in this screen:...

  • Page 57: Enabling Voip Connections

    ADSL2+ Modem Router DM111PSPv2 User Manual Enabling VoIP Connections You can use the NAT ALG (Network Address Translation/Application Level Gateway) settings to allow simultaneous VoIP phone calls. To specify the NAT ALG configuration: 1. In the Advanced section of the main menu, select NAT ALG to display the following screen: Figure 4-6 2.
  • Page 58 ADSL2+ Modem Router DM111PSPv2 User Manual 4-10 Advanced Configuration v1.0, December 2008...

  • Page 59: Advanced Wan Configuration

    Chapter 5 Advanced WAN Configuration This chapter describes how to perform advanced WAN configuration for your modem router. To use the features described in this chapter, log in to the modem router as described in “Logging In to the Modem Router” on page 1-2.
  • Page 60 ADSL2+ Modem Router DM111PSPv2 User Manual The following table describes the settings on the WAN Setup screen. Table 5-1. WAN Setup Field Description PVC Name Connection link name. Connect hyperlink Click the Connect hyperlink to connect to the WAN. VPI/VCI The VPI/VCI settings (see Table 5-3 on page 5-4 for an explanation of these...
  • Page 61 ADSL2+ Modem Router DM111PSPv2 User Manual To add a new WAN connection: 1. On the WAN Setup screen, click Add, and the following screen displays: Figure 5-2 2. Enter or select the ATM PVC settings that are explained in the following table. Your ISP will advise you which settings to use.
  • Page 62 ADSL2+ Modem Router DM111PSPv2 User Manual 3. Click Next to continue. The Connection Type screen displays. Figure 5-3 4. Enter or select the Internet connection type settings that are explained in the following table. Your ISP will advise you which settings to use. Table 5-3.
  • Page 63 ADSL2+ Modem Router DM111PSPv2 User Manual 5. Click Next to continue. The WAN IP Settings screen displays. Figure 5-4 6. Enter or select the WAN IP settings that are explained in the following table. Your ISP will advise you which settings to use. Table 5-4.
  • Page 64 ADSL2+ Modem Router DM111PSPv2 User Manual 7. Click Next to continue. The PPP User Name and Password screen displays. Figure 5-5 8. Enter or select the PPP user name and password settings that are explained in the following table. Your ISP will advise you which settings to use. Table 5-5.

  • Page 65: Selecting Your Domain Name Server (Dns)

    ADSL2+ Modem Router DM111PSPv2 User Manual 10. Click Apply to save your settings and add the WAN connection to the WAN connection table in the WAN Setup screen (see Figure 5-1 on page 5-1). If you first need to make changes, click Back to go to the previous screen.

  • Page 66: Static Dns

    ADSL2+ Modem Router DM111PSPv2 User Manual Static DNS You can specify DNS mapping between names and IP addresses for your local hosts. In the Advanced section of the main menu, select Static DNS. The following screen displays: Figure 5-7 To map additional local host names to IP addresses, click the More Mapping hyperlink. When you have finished specifying the static DNS configuration, click Apply so that your changes take effect.
  • Page 67 ADSL2+ Modem Router DM111PSPv2 User Manual To configure dynamic DNS: Warning: If your ISP assigns a private WAN IP address such as 192.168.x.x or 10.x.x.x, the dynamic DNS service will not work because private addresses will not be routed on the Internet. 1.

  • Page 68: Quality Of Service (Qos) Settings

    ADSL2+ Modem Router DM111PSPv2 User Manual 6. The fields that are displayed depend on the DNS service provider that you have selected. Enter the following information: • User Name or E-mail. Enter your user name or e-mail address that is associated with your dynamic DNS account.
  • Page 69 ADSL2+ Modem Router DM111PSPv2 User Manual 2. To add new IP QoS traffic rule, click Add. The following screen displays: Figure 5-10 3. Enter the settings for each field as described in Table 5-6. 4. Click Apply to save your settings and to add the traffic rule to the IP QoS table. To delete a traffic rule f rom the IP QoS table, select the check box to the right of the traffic rule, then click Delete.

  • Page 70: Tr 069 Client Configuration

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 5-6. IP QoS Traffic Rule Settings (continued) Settings Description Traffic Destination MAC Address Enter the destination MAC address and, if applicable, the MAC Conditions and MAC Mask mask address of the traffic destination. (continued) Protocol Select a protocol (TCP/UDP, TCP, UDP, ICMP) from the drop-...
  • Page 71 ADSL2+ Modem Router DM111PSPv2 User Manual To view or change the TR 069 settings: 1. In the Advanced section of the main menu, select TR 069 Client. The TR-069 Client Configuration screen displays: Figure 5-11 2. Use one of the following methods to enter the setting values for each field: •...
  • Page 72 ADSL2+ Modem Router DM111PSPv2 User Manual Table 5-7. TR 069 Client Configuration Settings Settings Description Internet Connection Select the Internet connection for which you want to configure TR 069 Client Configuration from the drop-down list. Connect to ACS Select to connect to an ACS (auto configuration server) with or without SSL (Secure Socket Layer) protocol: •...

  • Page 73: Troubleshooting

    Chapter 6 Troubleshooting This chapter provides information about troubleshooting your ADSL2+ Modem Router DM111PSPv2. After each problem description, instructions are provided to help you diagnose and solve the problem. For the common problems listed, go to the section indicated. • Is the modem router on? Go to “Basic Functioning”...

  • Page 74: Basic Functioning

    • Check that you are using the 12 V DC power adapter supplied by NETGEAR for this product. • If the error persists, you have a hardware problem and should contact technical support.

  • Page 75: Adsl Led Is Off Or Is Blinking

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 6-1. Power LED Troubleshooting (continued) Power LED Situation Action The Power LED never turns green. This indicates that the modem router’s self-test failed. • Cycle the power to see if the modem router recovers. •...

  • Page 76: Ethernet Led Or Internet Leds Not On

    ADSL2+ Modem Router DM111PSPv2 User Manual Table 6-2. ADSL LED Troubleshooting (continued) ADSL LED Situation Action The ADSL light was solid on, but is Switch off the modem router, wait 30 seconds, and then switch it back now blinking. on again to see if the modem router recovers. If the problem persists, try the following: •...
  • Page 77 ADSL2+ Modem Router DM111PSPv2 User Manual Follow the instructions in the online document that you can access from “Preparing Your Network” in Appendix B to configure your computer. Note: If your computer’s IP address is shown as 169.254.x.x: Recent versions of Windows and MacOS will generate and assign an IP address if the computer cannot reach a DHCP server.

  • Page 78: Modem Router Does Not Save Configuration Changes

    To check the WAN IP address from the browser interface: 1. Launch your browser and select an external site such as www.netgear.com. 2. Access the management interface of the modem router using your browser. For details, see “Logging In to the Modem Router” on page 1-2.

  • Page 79: Troubleshooting Pppoe Or Pppoa Connection

    ADSL2+ Modem Router DM111PSPv2 User Manual • Log in to the modem router as described in “Logging In to the Modem Router” on page 1-2, note the modem router status, run the diagnostics test as described in “Diagnostic Utilities and Rebooting the Modem Router”...

  • Page 80: Restoring The Default Configuration And Password

    ADSL2+ Modem Router DM111PSPv2 User Manual Restoring the Default Configuration and Password This section explains how to restore the factory default configuration settings, changing the modem router’s administration password to password and the IP address to 192.168.0.1. You can erase the current configuration and restore factory defaults in two ways: •...

  • Page 81: Technical Specifications

    Appendix A Technical Specifications This appendix provides technical specifications for the ADSL2+ Modem Router. Network Protocol and Standards Compatibility Data and Routing Protocols: TCP/IP (Optional) RIP-1 (Optional) RIP-2 (Optional) DHCP (Optional) PPPoE or PPPoA RFC 1483/RFC 2684 Bridged or Routed (Optional) Ethernet RFC 1577 Classical IP over ATM (Optional) Power Adapter North America:...
  • Page 82 ADSL2+ Modem Router DM111PSPv2 User Manual Interface Specifications LAN: 10BASE-T or 100BASE-Tx, RJ-45 WAN: ADSL, ADSL2+, Dual RJ-11, pins 2 and 3 T1.413, G.DMT, G.Lite ITU Annex A or B (Annex B unit is DM111PB) Technical Specifications v1.0, December 2008...

  • Page 83: Appendix B Related Documents

    Appendix B Related Documents This appendix provides links to reference documents you can use to gain a more complete understanding of the technologies used in your NETGEAR product. Document Link TCP/IP Networking Basics http://documentation.netgear.com/reference/enu/tcpip/index.htm Preparing Your Network http://documentation.netgear.com/reference/enu/wsdhcp/index.htm Virtual Private Networking Basics http://documentation.netgear.com/reference/enu/vpn/index.htm...
  • Page 84 ADSL2+ Modem Router DM111PSPv2 User Manual Related Documents v1.0, December 2008...

  • Page 85: Index

    Index modem router settings port forwarding access port triggering remote 2-13 static routes viewing logs 2-10 connection account name 1-6, 2-6, 4-3 session establishment ActiveX always on connecting manually always-on connection dial-on-demand Asymmetric Digital Subscriber Line (ADSL) speed driver version types customer support line status information...
  • Page 86 ADSL2+ Modem Router DM111PSPv2 User Manual configuring 1-2, 1-8 session establishment electromagnetic emissions troubleshooting environmental specifications types erasing the configuration Internet games, port triggering for Ethernet LED, troubleshooting Internet Group Management Protocol (IGMP) Internet LED, troubleshooting Internet Service Provider (ISP) configuration automatic detection by the Setup Wizard factory default required information for manual setup...
  • Page 87 2-14 NAT (Net Address Translation) using HTTP 2-13 using Telnet 2-13 NAT/Application Level Gateway (NAT ALG) using TFTP 2-13 NETGEAR product support using TR 060 5-12 Network Time Protocol (NTP) Remote call procedure (RPC) 5-13 remote management 5-12 requirements, installation...
  • Page 88 ADSL2+ Modem Router DM111PSPv2 User Manual traffic rules adding for IP QoS 5-11 Secure Socket Layer (SSL) 5-14 inbound IP filtering Session Initiation Protocol (SIP)/Application Level outbound IP filtering Gateway (SIP ALG) port forwarding (inbound rules) port triggering (outbound rules) setting time Trivial File Transfer Protocol (TFTP), using for remote settings, default.
