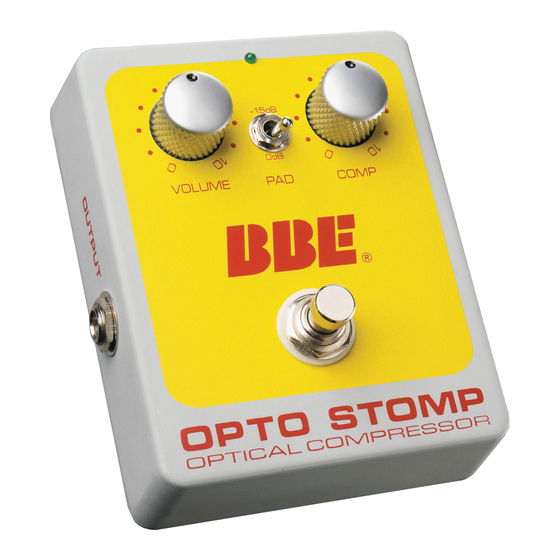

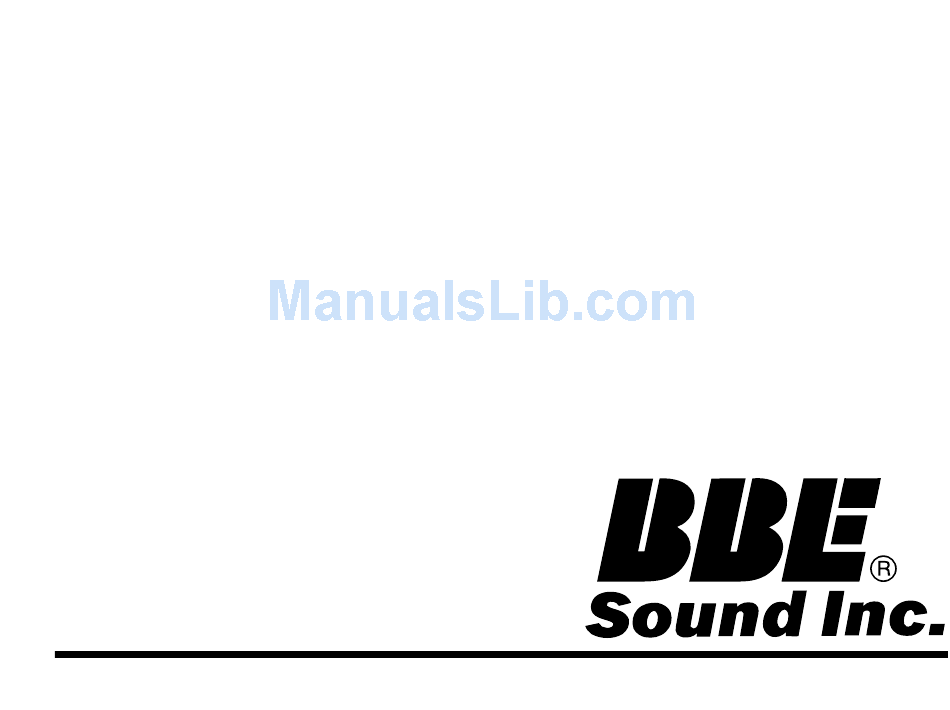

- Page 1 OPTO STOMP Users Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS For your protection, please read these safety instructions com- pletely before operating the appli- ance, and keep this manual for future reference. Carefully observe all warnings, pre- cautions and instructions on the appliance and described in the operating instructions supplied with the appliance. -
Page 3: Important
1. Opto Stomp. common questions that our 2. Opto Stomp User’s Manual. service department receives. If 3. 9VDC External Power you still have questions, please Supply. feel free to call 800-233-8346. - Page 4 Thank you and congratulations on your purchase of the BBE Opto Stomp! With the introduction of the Opto Stomp, we are now able to offer a state-of-the-art optical compressor in an extremely high quality and ruggedly built guitar pedal. Features: •...
-
Page 5: Table Of Contents
CONTENTS Important Safeguards ……………………………………………………i Important …………………………………………………………………ii Product Features …………………………………………………………iii Contents …………………………………………………………………1 Controls and Connections ………………………………………………2 Battery Replacement ……………………………………………………3 Applications………………………………………………………………4 Service ……………………………………………………………………5 Maintenance………………………………………………………………5 Warranty …………………………………………………………………6 Specifications ……………………………………………………………7... -
Page 6: Controls And Connections
CONTROLS AND CONNECTORS DC POWER INLET Indicates Opto Accepts any standard Stomp is engaged. 9VDC power supply. VOLUME CONTROL COMP CONTROL Adjusts the output level. Increases the amount of compression. PAD SWITCH Attenuates Input to accommodate active or INPUT passive instruments. Plug in your guitar, We recommend -15dB bass or the previous... -
Page 7: Battery Replacement
Carefully unplug battery without straining cables. Replace with fresh bat- tery in reverse order. Use a standard 9Volt battery. Battery life is about 300 hours. Unplugging the input to the Opto Stomp will turn the unit off and conserve battery life. -
Page 8: Applications
APPLICATIONS We recommend placing the Opto Stomp before your amplifier or any overdrive/dis- tortion pedal for the most desirable effect, but please feel free to experiment Please Note: When using a BBE Sonic Stomp we recommend placing it last in the... -
Page 9: Service
8346 extension 116 for a “Return Authorization” and include a copy of the original sales receipt. MAINTENANCE Maintenance of the BBE Opto Stomp is parts are replaced or if a performance limited to proper cleaning of the unit check-out indicates a problem with cali- with mild household cleaner such as bration. -
Page 10: Warranty
WARRANTY Warranty registration of the unit to BBE Sound, Inc. This warranty will be consider null and void by BBE is not necessary. It is strongly recommended that you Sound, Inc. if any of the following is found: retain a copy of the bill of sale for future reference. -
Page 11: Specifications
SPECIFICATIONS Frequency Response: …………………………20Hz ~ 20kHz (+/- 1dB) Signal to Noise Ratio: …………………………101dB THD: ……………………………………0.01% @ 1kHz Noise: ……………………………………-94dBu Input Impedance: Instrument …………………………1 MEG Ohm Output Impedance: Instrument …………………………1 kOhms * 0dBu = 0.775Vrms Power Requirements: Battery: ……………………………9VDC Battery Life: ………………………50 hours Dimensions: ………………………….. - Page 12 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 4,482,866 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev.2 4/06...
