Summary of Contents for BBE OPTO STOMP

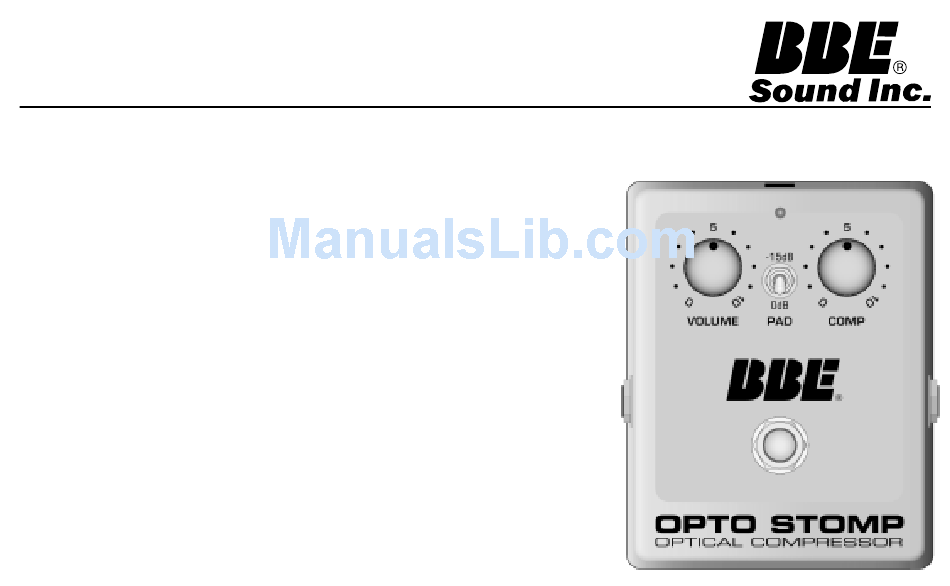

- Page 1 OPTO STOMP User Manual...
- Page 2 IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before oper- ating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance and described in the operating instructions supplied with the appliance. INSTALLATION Any mounting of the product should follow the manufacturer’s holds the power cord plug firmly and securely.
-
Page 3: Table Of Contents
IMPORTANT Stomp Guitar Pedal! Before you begin, please check the contents within this With the introduction of the Opto Stomp, we are now box to insure that included are: able to offer a state-of-the-art optical compressor in 1. The BBE Opto Stomp Guitar Pedal. -
Page 4: Controls And Connections
1/4” OUTPUT your signal chain. The 1/4” output is designed for running instrument IN/OUT cables directly into the next FOOTSWITCH instrument level input of Engages the Opto Stomp. your signal chain. -
Page 5: Battery Replacement
BATTERY REPLACEMENT BATTERY COMPARTMENT Pull the latch to the left with thumbnail to release the hinged battery compartment cover. Carefully unplug battery without straining cables. Replace with fresh battery in reverse order. Use a standard 9Volt battery. Battery life is about 50 hours. Unplugging the input to the Opto Stomp will turn the unit off and conserve battery life. -
Page 6: Service
As the repair turnaround time is minimal, we request that which requires service be sent to our facility in Huntington the unit be sent to BBE Sound, Inc. We also need to add Beach, California. We request that a “RETURN AUTHO- reliability data to our files so that future revision may be RIZATION”... -
Page 7: Warranty
WARRANTY Warranty registration of the unit to BBE Sound, Inc. is not This warranty will be consider null and void by BBE Sound, necessary. It is strongly recommended that you retain a Inc. if any of the following is found: copy of the bill of sale for future reference. -
Page 8: Specifications
SPECIFICATIONS Frequency Response: ……………………………………………………20Hz ~ 20kHz (+/- 1dB) Signal to Noise Ratio: …………………………………………………101dB THD: ……………………………………………………………………0.01% @ 1kHz Noise: ……………………………………………………………………-94dBu Input Impedance: Instrument ……………………………………………………1 MEG Ohm Output Impedance: Instrument ……………………………………………………1 kOhms * 0dBu = 0.775Vrms Power Requirements: Battery: …………………………………………………………9VDC Battery Life: ……………………………………………………50 hours Dimensions: ………………….. - Page 9 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 4,482,866 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev. 1 1/05...
