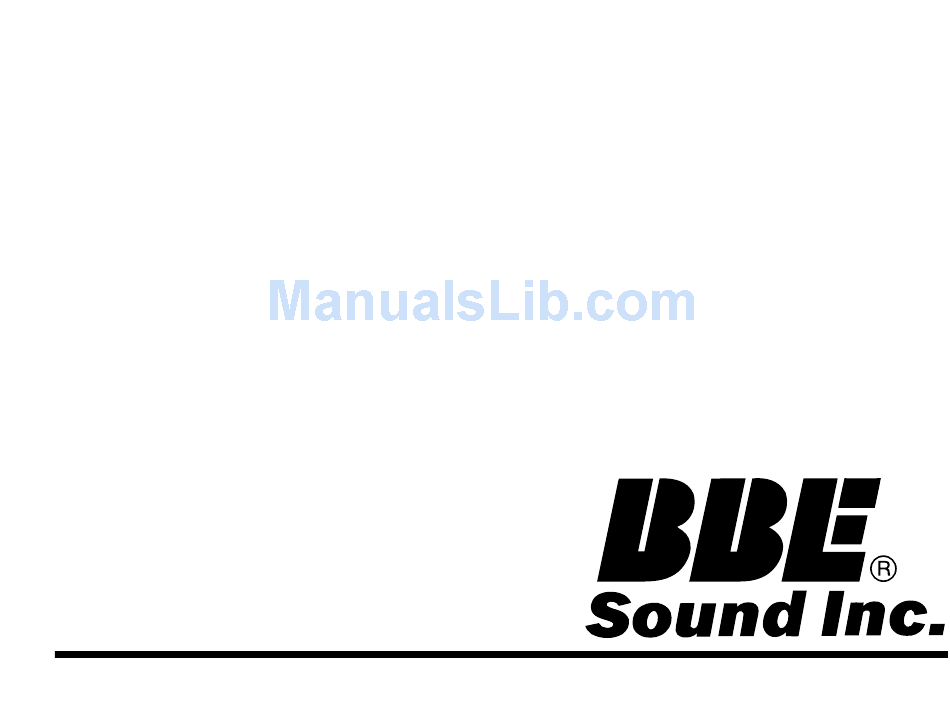

- Page 1 FREE FUZZ Users Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS For your protection, please read these safety instructions com- pletely before operating the appli- ance, and keep this manual for future reference. Carefully observe all warnings, pre- cautions and instructions on the appliance and described in the operating instructions supplied with the appliance. -
Page 3: Important
IMPORTANT Before you begin, please dealer from whom the unit was check the contents of this box purchased. to insure that the following This manual will help you to items are included: effectively utilize the BBE • The BBE Free Fuzz Free Fuzz. - Page 4 Thank you and congratulations on your purchase of the BBE Free Fuzz! The Free Fuzz is a reminiscent to the Fuzz pedals of the 70’s giving the player a dynamic range of fuzz effects so creamy with enough sustain to make any- one remember the days of the Lava Lamps and Bell- Bottom Jeans.
-
Page 5: Table Of Contents
CONTENTS Important Safeguards ……………………………………………………i Important …………………………………………………………………ii Product Features …………………………………………………………iii Controls and Connections ………………………………………………1 Battery Replacement ……………………………………………………2 Applications………………………………………………………………3 Service ……………………………………………………………………4 Maintenance………………………………………………………………4 Warranty …………………………………………………………………5 Specifications ……………………………………………………………6... -
Page 6: Controls And Connections
CONTROLS AND CONNECTORS DC POWER INLET Accepts any standard Indicates Free 9VDC power supply. Fuzz is engaged. TREBLE CONTROL VOLUME Regulates the amount of CONTROL treble frequencies. Regulates the amount of output. INPUT Plug in your guitar, bass or the previous instrument level output OUTPUT of your signal chain. -
Page 7: Battery Replacement
BATTERY REPLACEMENT BATTERY POWER SUPPLY COMPARTMENT CONNECTOR Pull the latch to the left Connect the 9VDC with thumbnail to power supply here. release the hinged bat- tery compartment cover. Carefully unplug battery without straining cables. Replace with fresh bat- tery in reverse order. Use a standard 9Volt battery. -
Page 8: Applications
APPLICATIONS We recommend placing the Free Fuzz before your amplifier or after any over- drive/distortion pedal for the most desirable effect, but please feel free to experiment Please Note: When using a BBE Sonic Stomp we recommend placing it last in the signal chain. -
Page 9: Service
SERVICE Should the Free Fuzz ever require serv- If this product was purchased outside of ice we recommend that it be sent to our the United States, please contact your facility in California. Please contact our local distributor. Service Department at 800-233-8346 extension “Return Authorization”... -
Page 10: Warranty
WARRANTY Warranty registration of the unit to BBE Sound, Inc. This warranty will be consider null and void by BBE is not necessary. It is strongly recommended that you Sound, Inc. if any of the following is found: retain a copy of the bill of sale for future reference. -
Page 11: Specifications
SPECIFICATIONS Input Impedance: …………………approx. 1MEG Ohms Output Impedance: ………………1K Ohm Hardwire Bypass……………………Yes Power Requirements: DC inlet:…………………+9VDC min. 200ma Battery Life: ……………600 hours Dimensions: ………………………3.7"(W) x 4.7"(D) x 1.8"(H) Shipping Weight: …………………3.3 lbs. Note: Due to continuing product improvement, specifications and design are sub- ject to change without notice. - Page 12 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 4,482,866 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev.1 12/05...
