- Page 1 SONIC STOMP Users Manual...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS For your protection, please read these safety instructions com- pletely before operating the appli- ance, and keep this manual for future reference. Carefully observe all warnings, pre- cautions and instructions on the appliance and described in the operating instructions supplied with the appliance. -
Page 3: Important
BBE are included: dealer from whom the unit was purchased. 1. The BBE Sonic Stomp Guitar Pedal with built-in This manual will help you to Sonic Maximizer™. effectively utilize the BBE Sonic Stomp Guitar Pedal. - Page 4 Sonic Stomp Guitar Pedal featuring the renowned Sonic Maximizer Processor! With the introduction of the Sonic Stomp, we are now able to offer our latest generation of the renowned Sonic Maximizer technology in an extremely high quality and ruggedly built guitar pedal.
-
Page 5: Table Of Contents
CONTENTS Important Safeguards ……………………………………………………i Important …………………………………………………………………ii Product Features …………………………………………………………iii Contents …………………………………………………………………1 BBE Process ……………………………………………………………2-3 Controls and Connections ………………………………………………4 Battery Replacement ……………………………………………………5 Applications ……………………………………………………………6-7 Service ……………………………………………………………………8 Maintenance………………………………………………………………8 Warranty …………………………………………………………………9 Specifications……………………………………………………………10... -
Page 6: Bbe Process
THE BBE PROCESS Loudspeakers have difficulty work- nizable characteristics of a live per- ing with the electronic signals sup- formance are intimately tied into plied by an amplifier. These complex time and amplitude rela- difficulties cause such major phase tionships between the fundamental and amplitude distortion that the and harmonic components of a sound reproduced by speaker differs... - Page 7 42 patents have been awarded by the for example, an oboe and a clarinet. U.S. Patent Office. BBE Sound, Inc. conducted exten- sive studies of numerous speaker systems over a ten year period. With this knowledge, it became possible...
-
Page 8: Controls And Connections

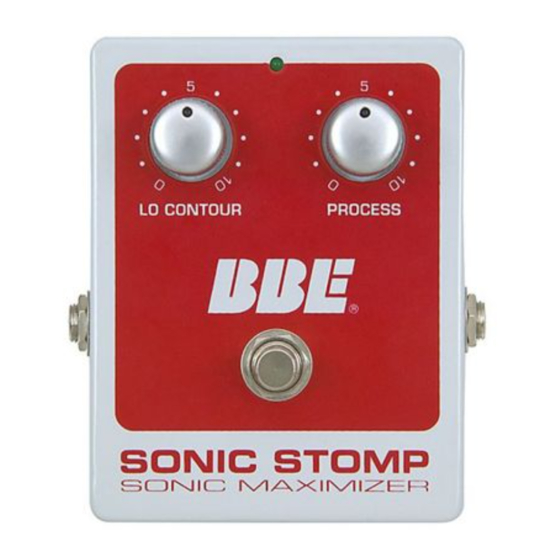

CONTROLS AND CONNECTORS DC POWER INLET Indicates Sonic Accepts any standard Stomp is engaged. 9VDC power supply. PROCESS CONTROL Regulates the amount of LOW CONTOUR phase correction. CONTROL Regulates the amount INPUT of phase corrected Plug in your guitar, bass frequencies. bass or the previous instrument level output of your signal chain. -
Page 9: Battery Replacement
Carefully unplug battery without straining cables. Replace with fresh bat- tery in reverse order. Use a standard 9Volt battery. Battery life is about 300 hours. Unplugging the input to the Sonic Stomp will turn the unit off and conserve battery life. -
Page 10: Applications
APPLICATIONS The BBE Sonic Maximizer Process is most effective when it is inserted in the signal chain immediately in front of the amplifier input. The Sonic Stomp should always be the last pedal in the chain. - Page 11 APPLICATIONS The BBE Sonic Stomp can be inserted into an amplifiers effects loop circuit. EFFECTS LOOP...
-
Page 12: Service
SERVICE Should the Sonic Stomp ever require If this product was purchased outside of service we recommend that it be sent to the United States, please contact your our facility in California. Please contact local distributor. our Service Department at 800-233- 8346 extension 116 for a “Return... -
Page 13: Warranty
WARRANTY Warranty registration of the unit to BBE Sound, Inc. of the original 5 Year factory warranty. is not necessary. It is strongly recommended that This warranty will be consider null and void by BBE you retain a copy of the bill of sale for future refer- Sound, Inc. -
Page 14: Specifications
SPECIFICATIONS Frequency Response: ……………………………………………Program Dependent BBE: Lo Contour ………………………………………+12dB @ 50Hz Process ……………………………………………+12dB @ 10kHz Signal to Noise Ratio: BBE on Max ………………………………………94dB BBE on Min ………………………………………104dB THD: ……………………………………………………0.02% at 1kHz Noise: BBE on Max ………………………………………-87dBu BBE on Min ………………………………………-97dBu Max Signal Level ………………………………………………+7dBu Input Impedance: ………………………………………………1MEG Ohms Output Impedance:………………………………………………1K Ohm... - Page 15 5381 Production Drive Huntington Beach, CA 92649 714-897-6766 • FAX 714-896-0736 www.bbesound.com covered by U.S. Patent 4,482,866 and other U.S. and foreign patents pending. BBE is the registered trademark of BBE Sound, Inc. rev.3U 4/07...
