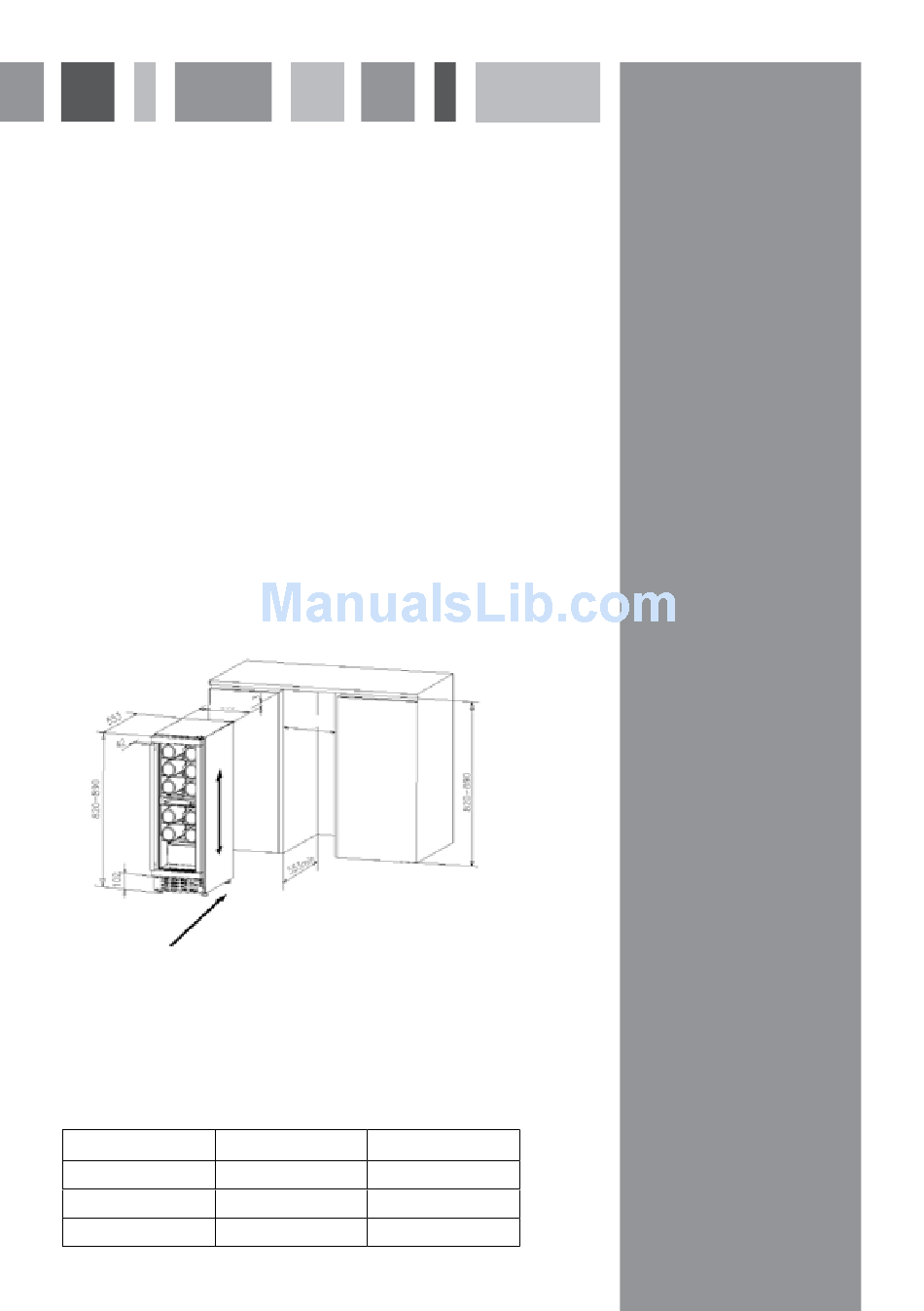

Installing the wine cooler

This appliance is intended to be installed in a space between two units.
The minimum space required is:
FWC150 – 150 mm wide x 550 mm deep x 820 mm high
FWC300 – 300 mm wide x 550 mm deep x 820 mm high
FWC600 – 600 mm wide x 550 mm deep x 820 mm high
Please note: When the product is installed, there should be a small ventilation gap between the top of the
unit and the underside of the worktop (6 mm or ¼")
These products should not be installed:
1. In direct sunlight
2. Adjacent to a heat source (oven or radiator)
3. Below a hob unit
4. Where a continuous plinth is to be used, it may be necessary cut a section out so that the ventilation slots at the front of
the appliance are not obstructed in any way.
IMPORTANT: Failure to follow the instructions regarding installation and ventilation may invalidate the
warranty supplied with your appliance.
X
To install the handle
IMPORTANT: Do not overtighten the screws, and do not use power tools to install the handle.
1. Carefully remove the door seal approximately 10 cm down from the top of the wine cooler door.
2. Insert the screw from the inside of the door frame and screw it in to the handle.
3. Replace the door seal.
Repeat steps 1 to 3 approximately 10 cm up from the bottom of the door for the lower handle fixing
X
FWC150 150
FWC300 295
FWC600 595
Y
Y
>150
300
600
