- Page 1 FWC153, FWC304, FWC604 & FWC624 Wine Coolers Installation, use and maintenance www.cda.eu...
- Page 2 Important The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that The CDA Group reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
- Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number...
-
Page 4: Before First Use
Before first use You must allow the appliance to settle for at least twenty four hours prior to switching the power on. It is recommended that you remove all internal and external packaging and clean the interior of the appliance prior to first use. We recommend that you use a solution of bicarbonate of soda and warm water and then thoroughly dry the interior. - Page 5 • Only store wine in sealed containers. • Do not overload the cabinet. • Only open the door when necessary. • Do not cover the shelves with aluminium foil or anything else that will prevent air from circulating around the cabinet. •...
-
Page 6: Use And Controls
FWC153 Key: 1 – Power button 2 – Light button 3 – "+" button 4 – "-" button fig. 1 FWC304 Key: 1 – Power button 2 – Light button 3 – "+" button 4 – "-" button fig. 2 To switch the power on/off •... - Page 7 Celsius to Fahrenheit, press and hold the light button for five seconds. • To view the set temperature, touch the "+" or "-" button at any time and the set temperature will flash in the LED display for five seconds. •...

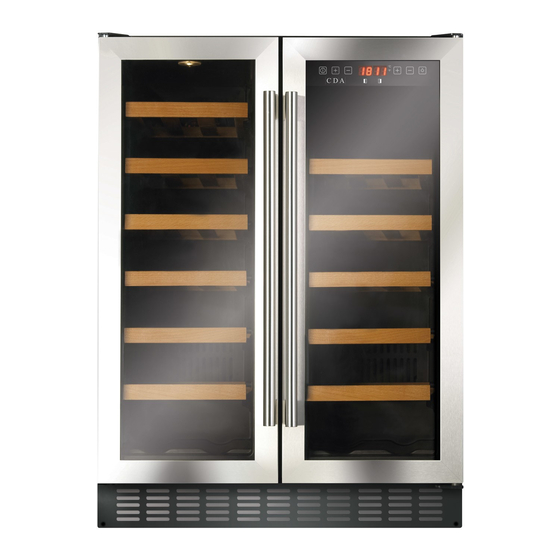

- Page 8 Use and controls FWC604 & FWC624 Key: 1 – Power button 2 – Left/Upper zone "+" button 3 – Left/Upper zone "-" button 4 – Right/Lower zone "+" button 5 – Right/Lower zone "-" button fig. 3 6 – Light button To switch the power on/off •...
- Page 9 Optimal temperature selection Whilst wine is best stored at temperatures between 13°C and 15˚C, your wine can also be stored at drinking temperature, for red wine this is between 15°C and 17˚C, and for white wine between 12°C and 13˚C. To use the internal light •...
- Page 10 Temperature display The temperature display will show the current internal temperature. The display flashes: • When a different temperature is being set • If the internal temperature is +/- 5˚ away from the set temperature. This serves as a warning to prevent damage to the contents of the appliance should the temperature be too high.
- Page 11 Sabbath mode Sabbath mode is available for the observance of certain religious holidays. This will switch off the displays, interior light and audible alarms. The cooling process will continue. To switch the Sabbath mode on, touch and hold the power and light keys simultaneously for five seconds.
-
Page 12: Care And Cleaning
Fig. 5 Removing the shelves (Applicable to FWC304, FWC604 and FWC624) • To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 5). - Page 13 off before reconnecting the power. • Once cleaning is complete, reconnect the mains electrical supply. • If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation.
-
Page 14: Troubleshooting
Troubleshooting If you have any problems with your appliance, you should check the troubleshooting guide prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working, check • There is power to the appliance •... - Page 15 If the door has been removed, it may not have been correctly refitted. • The door seal is dirty. • The shelves are not positioned correctly. The display shows “E1” or “E2” • The temperature sensor has failed. Please contact CDA Customer Care.
-
Page 16: Installing The Wine Cooler
The minimum space required is: FWC153 – 150mm W x 555mm D x 825mm H FWC304 – 300mm W x 580mm D x 825mm H FWC604 – 600mm W x 580mm D x 825mm H FWC624 – 600mm W x 580mm D x 825mm H... - Page 17 This appliance is designed to fit under worktops between 820 – 890mm in height, using the adjustable plinth plate to ensure that the feet are concealed from view. IMPORTANT: Failure to follow the instructions regarding installation and ventilation may invalidate the warranty supplied with your appliance.
-
Page 18: Reversing The Door
Reversing the Door You will need the help of another person, during this process, to lean the wine cooler back and support it. 1. Remove the rear ventilation trim (3) by removing screws (1) from both sides and sliding the trim out fig. - Page 19 4. Gently lower the door away from the top hinge and place on a padded surface to avoid the risk of damage as shown in fig. 9. fig. 11 5. Remove the upper hinge (9) as shown in fig. 11. 6.
-
Page 20: Adjusting The Plinth
Adjusting the plinth The pre-fitted plinth for this appliance comes with an adjustable lower section that is initially seated behind the upper section. The process for adjusting the plinth trim is simple and is achieved by following the image and steps below. fig. -
Page 21: Electrical Information
Electrical Information Warning! This appliance must be earthed. Green and yellow to Earth Brown to Live 13 Amp fuse Cord clamp Blue to Neutral fig. 13 The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. - Page 22 How to connect an alternative plug If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to avoid possible shock hazard. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used.
- Page 23 16 [lowest temperature] °C and 38 [highest temperature] °C Airborne Acoustic dB(A) Noise Emissions Installation Type Built-under E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
- Page 24 For more information please contact: The Sales Department on 01949 862 010 or email sales@cda.eu Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY 01949 862 012 F: 01949 862 003 E: customer.care@cda.eu www.cda.eu...
