Installing the wine cooler

This appliance is intended to be installed in a space between two
units.
The minimum space required is:
FWC153 – 150mm W x 555mm D x 825mm H
FWC304 – 300mm W x 580mm D x 825mm H
FWC604 – 600mm W x 580mm D x 825mm H
FWC624 – 600mm W x 580mm D x 825mm H
Please note: When the product is installed, there should be a small
ventilation gap between the top of the unit and the underside of the
worktop (6 mm or ¼")
These products should not be installed:
1. In direct sunlight.
2. Adjacent to a heat source (oven or radiator).
3. Below a hob unit.

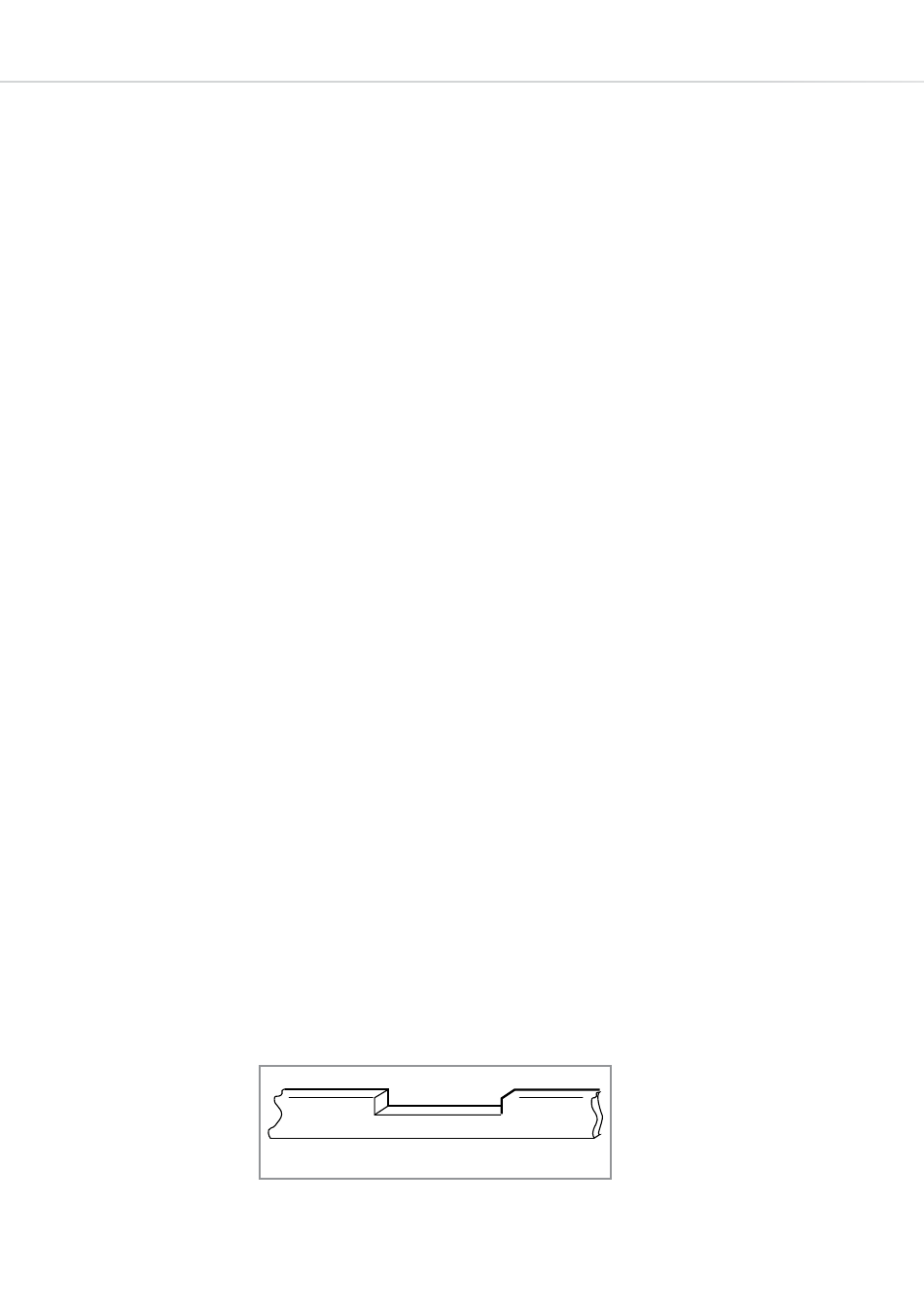

Where a continuous plinth is to be used, it is necessary to
cut a section out so that the ventilation slots at the front of the
appliance are not obstructed in any way as per figure 6.
fig. 6
