CDA FWC152 Installation, Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. CDA Manuals
  4. Kitchen Appliances
  5. FWC152
  6. Installation, use and maintenance manual

CDA FWC152 Installation, Use And Maintenance Manual

Integrated wine coolers
Hide thumbs Also See for FWC152:

Advertisement

Table of Contents

FWC152, FWC303,
FWC603 &
FWC623 Integrated
Wine Coolers
Installation, Use and Maintenance
Customer Care Department • The
Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu
www.cda.eu
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FWC152 and is the answer not in the manual?

Questions and answers

Related Manuals for CDA FWC152

Summary of Contents for CDA FWC152

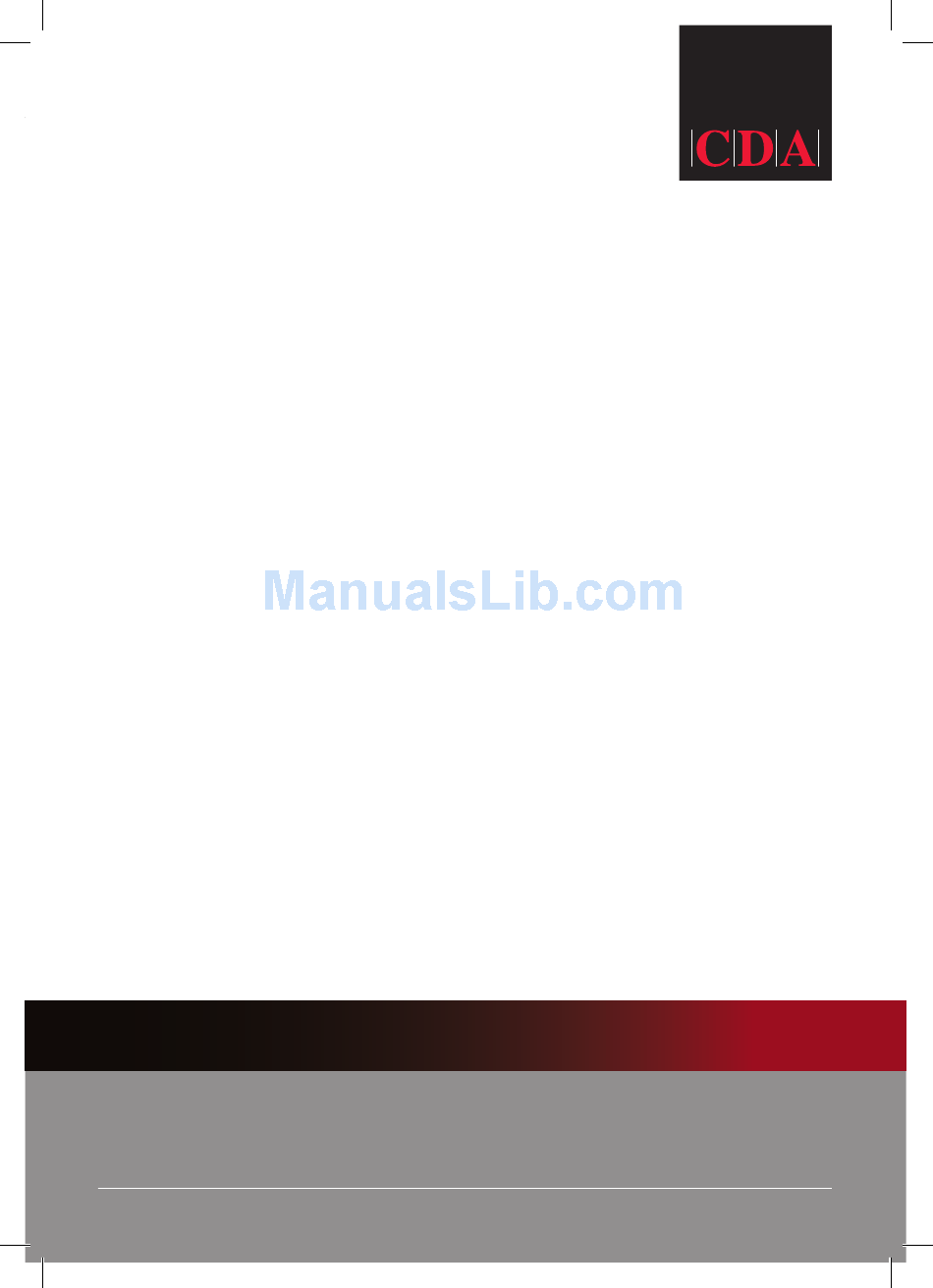

  • Page 1 Wine Coolers Installation, Use and Maintenance Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu...
  • Page 2 Important The CDA Group Ltd cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that The CDA Group reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance or use in a commercial environment.
  • Page 3 Appliance information: Please enter the details on the appliance rating plate below for reference, to assist CDA Customer Care in the event of a fault with your appliance and to register your appliance for guarantee purposes. Appliance Model Serial Number...

  • Page 4: Before First Use

    Before First Use You must allow the appliance to settle for at least twenty four hours prior to switching the power on. It is recommended that you remove all internal and external packaging and clean the interior of the appliance prior to first use. We recommend that you use a solution of bicarbonate of soda and warm water and then thoroughly dry the interior.
  • Page 5 • Only store wine in sealed containers. • Do not overload the cabinet. • Only open the door when necessary. • Do not cover the shelves with aluminium foil or anything else that will prevent air from circulating around the cabinet. •...

  • Page 6: Use And Controls

    Use and Controls FWC152 Key: 1 – Power button 2 – Light button 3 – "+" button 4 – "-" button fig. 1 FWC303 Key: 1 – Power button 2 – Light button 3 – "+" button 4 – "-" button fig.
  • Page 7 • The display shows the current internal temperature when the wine cooler is on. Optimal temperature selection Whilst wine is best stored at temperatures between 13 and 15˚ C, your wine can also be stored at drinking temperature. For red wine this is between 15 and 17˚C, and for white wine between 12 and 13˚C.
  • Page 8 Use and Controls FWC603 & FWC623 Key: 1 – Power button 2 – Left/Upper zone "+" button 3 – Left/Upper zone "-" button 4 – Right/Lower zone "+" button 5 – Right/Lower zone "-" button fig. 3 6 – Light button To switch the power on/off Press and hold the power button for five seconds.
  • Page 9 Optimal temperature selection Whilst wine is best stored at temperatures between 13°C and 15˚C, your wine can also be stored at drinking temperature, for red wine this is between 15°C and 17˚C, and for white wine between 12°C and 13˚C. To use the internal light •...
  • Page 10 Internal Humidity The wine coolers (except for the FWC152) are equipped with a humidity system to maintain optimal humidity within the wine Fig. 3 cooler. Fill the humidity reservoir approximately 3/4 full with water. Place the reservoir on the runners on the top shelf as shown in fig. 3.
  • Page 11 To change to dynamic cooling mode, touch and hold the "-" button for approximately five seconds (left hand "-" button on fwc603 & fwc623). The wine cooler will beep five times to confirm dynamic cooling is on. Dynamic cooling mode The fan cycles on and off to circulate the air even after the required temperature is reached.

  • Page 12: Care And Cleaning

    Care and Cleaning IMPORTANT: Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance. Fig. 4 Removing the shelves (Applicable to FWC303, FWC603 and FWC623) • To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 4).
  • Page 13 • Once cleaning is complete, reconnect the mains electrical supply. • If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation. Temperature alarm If the temperature rises or falls outside the set temperature range, an alarm will sound and the display will flash.

  • Page 14: Troubleshooting

    Troubleshooting If you have any problems with your appliance, you should check the troubleshooting guide prior to calling CDA Customer Care to prevent unnecessary service calls and potential cost. If the appliance is not working, check • There is power to the appliance •...
  • Page 15 If the door has been removed, it may not have been correctly refitted. • The door seal is dirty. • The shelves are not positioned correctly. The display shows “E1” or “E2” • The temperature sensor has failed. Please contact CDA Customer Care.

  • Page 16: Installing The Wine Cooler

    This appliance is intended to be installed in a space between two units. The minimum space required is: FWC152 – 150mm W x 555mm D x 825mm H FWC303 – 300mm W x 580mm D x 825mm H FWC603 – 600mm W x 580mm D x 825mm H FWC623 –...
  • Page 17 This appliance is designed to fit under worktops between 820 – 890mm in height, using the adjustable plinth plate to ensure that the feet are concealed from view. Loosen but do not remove the rear ventilation trim screws. Slide the rear plinth to the required height.

  • Page 18: Reversing The Door

    Reversing the Door It is possible to reverse the door on this appliance, if required. To do so, follow the steps below: 1. Remove the rear ventilation trim fig. 7 (2) by removing screws (1) and then remove the front ventilation trim (4) by removing screws (3) as shown in figure 7.
  • Page 19 Pop out the cover caps on the opposite side and use them to cover the screw holes on the original side. Fit the alternative upper hinge on the opposite side. Rotate the door 180º and relocate it on the top hinge. Refit the modified lower hinge into the door and secure it to the appliance body using the screws removed in step 1.

  • Page 20: Electrical Information

    Electrical Information Warning! This appliance must be earthed. Green and yellow to Earth Brown to Live 13 Amp fuse Cord clamp Blue to Neutral The mains lead of this appliance has been fitted with a BS 1363A 13 amp fused plug. To change a fuse in this type of plug, follow the steps below: 1.
  • Page 21 How to connect an alternative plug If the fitted plug is not suitable for your socket outlet, then it should be cut off and disposed of safely to avoid possible shock hazard. A suitable alternative plug of at least 13 Amp rating to BS 1363 should be used.
  • Page 23 16 [lowest temperature] °C and 32 [highest temperature] °C Airborne Accoustic dB(A) Noise Emissions Installation Type Built-under E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the right to change specifications without prior notice.
  • Page 24 T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu Copyright © CDA 2016...
