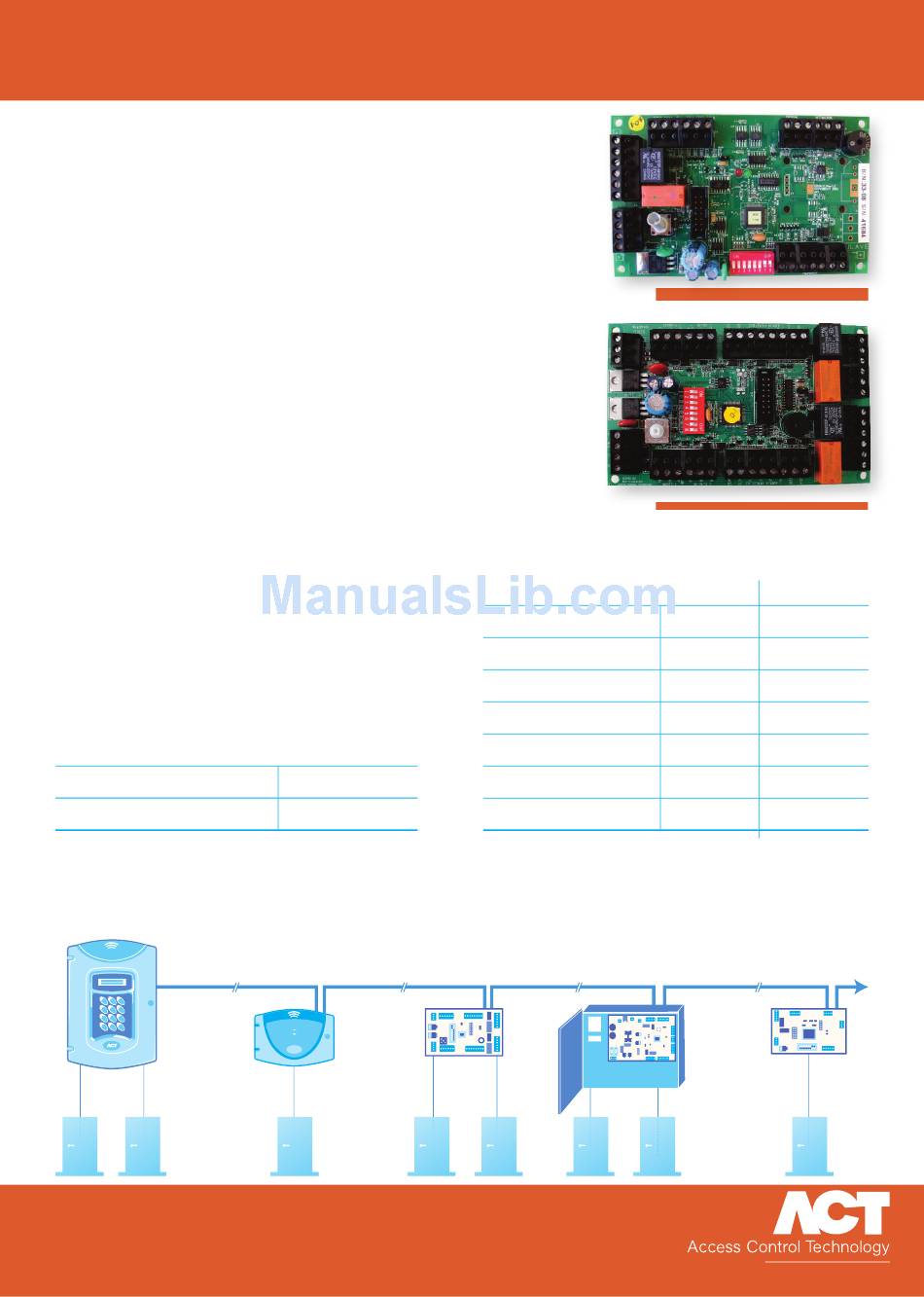

ACT ACTPRO 101 Datasheet

ACTpro 101 & 102 PCB format Door Stations
ACTpro 101 & 102 Description
ACT have launched two PCB format door stations for one
and two doors. The ACTpro 101 (one door) and ACTpro
102 (two door) fit neatly into the ACTpro 200 metal casing
or other suitable PSU's.
Designed with the installer in mind the ACTpro 101 and
102 door stations make installation a quicker and easier
process. They are an ideal option when the available
space is limited.
ACTpro 101 & 102 Features
• PCB format door station for one (ACTpro 101) or two
(ACTpro 102) doors
• facilitates the expansion of thes ACTpro 2000 / 3000
from two to a maximum of sixteen doors
• up to 14 door stations to each ACTpro 2000 or
ACTpro 3000
• programmable inputs and outputs per door
• auxiliary relay output per door
• requires 12 Volt DC supply
Ordering Codes
PCB format, single door station
PCB format, two door station
Product Schematic (
ACTpro 3000
2 Door Controller
Access Control Technology, Unit C1, South City Business Park, Tallaght, Dublin 24, Ireland
t: 353 (0)1 466 2570. e: sales@accesscontrol.ie. w: www.accesscontrol.ie
ACTpro 101
ACTpro 102
ACTpro 3000 two door controller with ACTpro Door Stations)
ACTpro 100
1 Door Station
Product Specification
Operating Voltage
Consumption
Weight
Operating Temperature
Dimensions
(H x W x D, mm)
Mounting
Installation
ACTpro 102 ACTpro 200
2 Door Station 2 Door Station
ACTpro 101 Door Station (one door) ACTpro 101 Door Station (one door)
ACTpro 102 Door Station (two door) ACTpro 102 Door Station (two door)
ACTpro 101 ACTpro 102
12 V DC 12 V DC
40 / 120 mA 40 / 120 mA
80 grams 124 grams
-10 to +50C -10 to +50C
80x130x25 80x130x25
Inside PSU Inside PSU
Indoor Indoor
ACTpro 101
1 Door Station
