ACT 2000
NETWORK
Total Length max 1.4km
A
A
B
B
0V
Shield
Network cable is single
shielded twisted pair,
DTR
Belden 9501 or similar
Dipswitch set for
Doors 3 and 4
Power
Supply Unit
Note:
If the Mains Present or Door
Contact inputs are not used,
they should be linked to 0V
4
5
6
7
8
Door
Address
03 OFF OFF OFF ON
ON
04 OFF OFF ON
OFF OFF
05 OFF OFF ON
OFF ON
FACTORY DEFAULT
06 OFF OFF ON
ON
OFF
This unit should be reset to its
07 OFF OFF ON
ON
ON
factory default condition before
08 OFF ON
OFF OFF OFF
installation. To do this, power
09 OFF ON
OFF OFF ON
the unit up with ALL switches in
10 OFF ON
OFF ON
OFF
the OFF position. The two LED's
11 OFF ON
OFF ON
ON
will illuminate for about 2 sec.
12 OFF ON
ON
OFF OFF
The correct switch settings may
13 OFF ON
ON
OFF ON
then be set.
14 OFF ON
ON
ON
OFF
15 OFF ON
ON
ON
ON
16 ON
OFF OFF OFF OFF
Example:
When the dipswitch is set to 3, Door 1 is set to Address 3 and Door 2 is set to Address 4.
When the dipswitch is set to 4, Door 1 is set to Address 4 and Door 2 is set to Address 5.

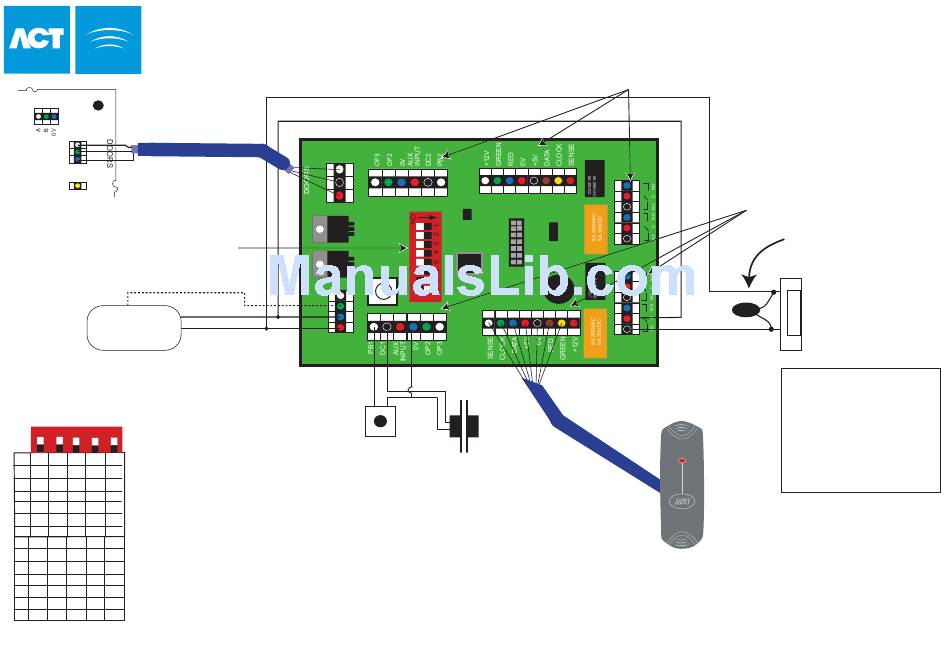

ACTpro102 Door Station Installation
A
B
0V
TAMPER
MAINS
+12V
PRESENT
12V / +
0V / -
0V
Door
Release
Button
2 Door Controller
DOOR 2 Connections
Door
Contact
Cable: 8 Core Screened
Belden 9504 or equiv.
Maximum length of
30m at 5V.
Maximum length of
100m at 12V
www.accesscontrol.ie
This illustration shows wiring
for a normally energised
lock. If a normally de-energised
lock is required, use the
N/O relay contacts.
DOOR 1 Connections
Important !
Always Place Varistor
Across Lock Terminals
Entry/Exit Reader
White
SENSE
Green
CLOCK / DATA 1
Blue
DATA / DATA 0
Red
+5V or +12V
Black
0V
Brown
RED
Yellow
GREEN
Orange
(Buzzer Ctrl)
EXIT READERS
For Clock and Data Readers
wire exit reader in parallel, but
leave it's SENSE line unconnected.
For Wiegand Readers, wire the
DATA 0 of the exit reader to SENSE
on the ACTpro102.
18-00059
