D. CONTROL LOCATION

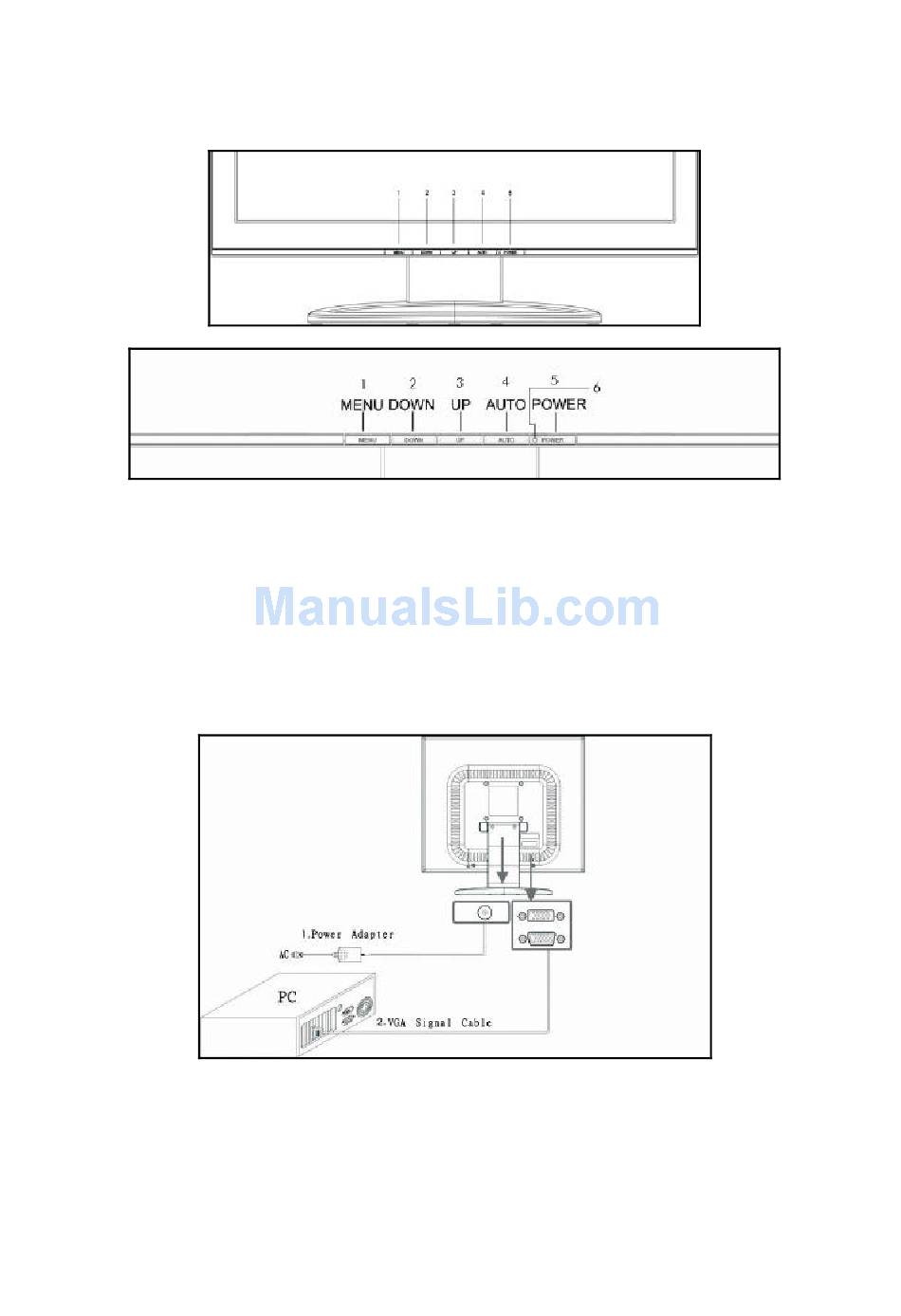

Font control panel
1. Menu button (MENU)
2. Select button (DOWN)
3. Select button (UP)
The rear panel of the monitor includes 3 plug-in connectors. They are as follows:
1. One DC IN connector
2. Two VGA Signal (DVI / D-sub) IN connectors

Rear panel

4. Auto button (AUTO)
5. Power button (POWER)
6. Power Indicator
