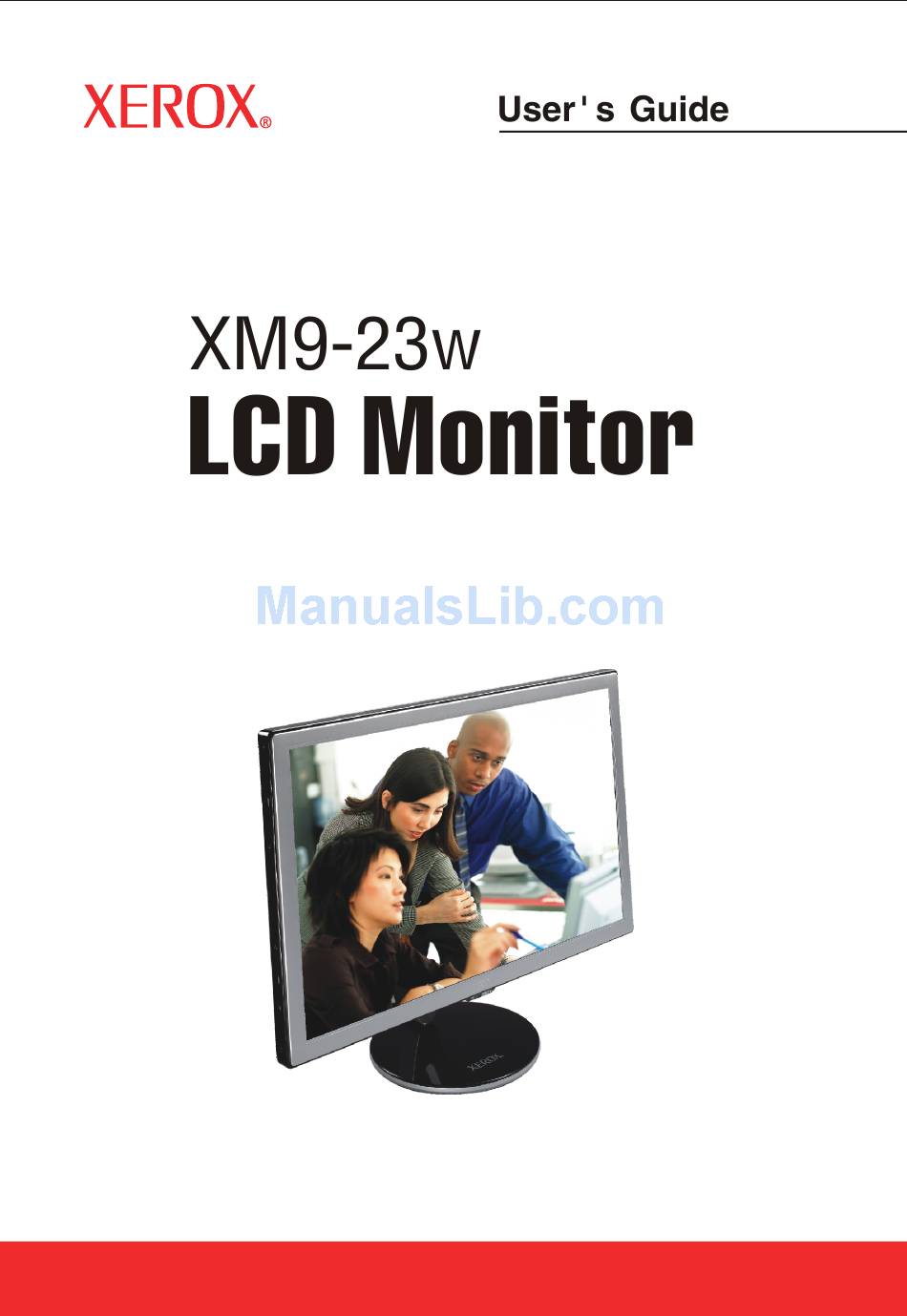

Xerox XM9-23w User Manual

Proview user's guide lcd monitor xm9-23w
Hide thumbs

Advertisement

Quick Links

Advertisement

Table of Contents
loading

  Related Manuals for Xerox XM9-23w

  Summary of Contents for Xerox XM9-23w

  • Page 2 ©2005 by Xerox Corporation. All rights reserved. Copyright protection claimed includes all forms and matters of copyrightable material and information now allowed by statutory judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as icons, screen displays, looks, etc.
  • Page 3: Table Of Contents

    TCO’03 ...3 CE Marking Declaration Of Conformity ...5 Federal Communications Commission (FCC) Statement ...6 Important Safety Instructions ...7 1 Introduction Features ...10 Package Contents ... 11 Front View and Controls ...12 2 Installation Connecting Your LCD Monitor to a Computer ...14 Method 1: Analog (D-SUB) Connection ...14 Method 2: Digital (DVI) Connection ...16 Using Your LCD Monitor ...18...
  • Page 4: Tco'03

    Some of the features of the TCO’03 Display requirements: Ergonomics • Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy •...
  • Page 5 EUROPE When disposing of Proview products in Europe, please contact one of the following three locations to make arrangements for recycling. Proview International (UK) Limited 30 The Avenue, Watford, Hertfordshire WD17 4AE United Kingdom Timothy Lo Tel: +44 1923-248-111 Fax: +44 1923-248-222 Email: tim.lo@proview.co.uk...
  • Page 6: Ce Marking Declaration Of Conformity

    FCC/CE CE Marking Declaration Of Conformity This LCD monitor complies with the requirements of the EC Directive 89/336/EEC “EMC Directive” and 73/23/EEC “Low Voltage Directive” as amended by Directive 93/68/EEC. The electro-magnetic susceptibility has been chosen at a level that gives correct operation in residential areas, business and light industrial premises and small-scale enterprises, inside as well as outside of the buildings.
  • Page 7: Federal Communications Commission (Fcc) Statement

    Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits of a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 8: Important Safety Instructions

    Important Safety Instructions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. Warnings •...
  • Page 9 • Do not touch the power cord and antenna cable during lightning. • Remove the plug from the wall outlet if the equipment will not be used for a long period of time. • Do not place, use or handle this equipment near water. •...
  • Page 10 • If any of the following conditions occur, unplug the power cord from the outlet and request service from qualified personnel. a. The power cord or plug is damaged. b. Liquid is spilled into the product . c. An object falls onto or into the product. d.
  • Page 11: Introduction

    Xtouch buttons on-screen menu for easy image adjustments. • Digital DVI Input Digital Video Input (DVI) provides precise digital image display, and the XM9-23w series the flexibility to accept both Xtouch buttons digital or analog signals. Xtouch buttons xTraLive...
  • Page 12: Package Contents

    D-SUB Cable Audio Cable (Driver/User Guide) DVI Cable * Power cord specification : H05 VV-F 3G 0.75mm Optional Parts Optional parts as below are available for the XM9-23w series. Right/Left VESA Mount Detachable Speakers (two size types are included) CAUTION: Be sure to save original box and all packing material for future transport of monitor.
  • Page 13: Front View And Controls

    Front View and Controls Press the the main unit. Press the main unit to display on-screen menu. POWER button, located on the bottom side of MENU button, located on the bottom side of the Xerox© LCD Monitor User’s Manual...
  • Page 14 ◄► In OSD mode, press the ◄► buttons to change the value of the selected item. Adjusts the volume up and down. ▲▼ In OSD mode, press the ▲▼ buttons to move the selection highlight to the next menu item. The LED light indicates when the LCD monitor is activated (blue light indicates power on and amber flash indicates power saving).
  • Page 15: Installation

    2 Installation Refer to the owner’s manual of the computer for connections. In the process of connecting external equipment, do not connect any AC power cords to wall outlets until all other connections are completed. Connecting Your LCD Monitor to a Computer Method 1: Analog (D-SUB) Connection Turn off the computer and unplug the power cable.
  • Page 16 If you would like to listen to PC audio with a headphone, connect the audio out port to the headphone. Connect the DC plug of the AC-DC adapter to the DC 24V port at the rear of the monitor. Connect the power cord to the AC-DC adapter and wall outlet.
  • Page 17: Method 2: Digital (Dvi) Connection

    Method 2: Digital (DVI) Connection Turn off the computer and unplug the power cable. Connect the signal cable (DVI-D) to the DVI port on the back of the computer. Connect the audio cable to the line-in port on the back of the computer.
  • Page 18 Xerox© LCD Monitor User’s Manual Connect to power source Connect to the DVI port Connect to the Line-in port Connect to the Headphone Installation...
  • Page 19: Using Your Lcd Monitor

    Installation Using Your LCD Monitor In order to ensure a healthy and relaxed body position when using the monitor at visual display workstations, you are able to adjust the monitor’s angle of the stand. The angle of the LCD monitor may be adjusted approximately 35 degrees.
  • Page 20: Installing The Speaker(Optional) To Your Lcd Monitor

    Installing the Speaker(optional) to Your LCD Monitor Install Follow the instructions below to install the optional speakers. Attach the speaker onto both sides of the LCD monitor as shown. Hold the optional speaker and place it on the two hooks and speaker plug on the unit as shown.
  • Page 21 Once the hooks are matched with the LCD monitor unit, pull the speaker down to complete the attachment. Remove Push the speaker unplug button of the speaker in the direction of the arrows and pull away from the LCD monitor unit. Speaker unplug button Xerox©...
  • Page 22: Installing The Wall Mount (Optional) To Your Lcd Monitor

    Installing the Wall Mount (optional) to Your LCD Monitor If you with to lock the LCD monitor on a wall, carefully follow the instructions below. Remove the screws on the back of the stand. Use the screws to fix the VESA mount (two type:75x75mm, 100x100m) on the rear of the display monitor.
  • Page 23: Osd Menu

    3 OSD MENU Using the OSD Menu To create the best picture, your XM9-23w series has been preset at the factory with the Preset Mode Timing shown on page 29. The OSD (On Screen Display) Menu allows the user to adjust various settings and options by following the steps below.
  • Page 24 Press the ▲ or ▼ button to select the desired adjustment item. ▲▼: MOVE Press the ◄ or ► button to change the value of the selected item. Select the Repeat steps 1 through 5 to make further adjustments. All changes are stored immediately.
  • Page 25: The Osd Options

    The OSD Options The main menu includes the following options: PICTURE SETUP Adjusts picture settings such as brightness, contrast. SOUND SETUP Allows selection of the sound options and effects. OSD TIME Adjusts settings for miscellaneous features: OSD timeout, languages, transparency of OSD background, display, and reset.
  • Page 26: The Picture Setup Menu

    The PICTURE SETUP Menu The PICTURE SETUP Menu provides access to the following menus: ▲▼: MOVE The PICTURE SETUP menu includes the following options: CONTRAST Controls the difference between the brightest and darkest regions of the picture. BRIGHTNESS Controls the overall brightness. H.
  • Page 27 COLOR TEMP Allows selection of the general color tint: NATURAL, WARM, COOL, or USER. AUTO ADJUST Automatically adjust the display settings to optimize COLOR TENP MAIN MENU COLOR ◄ USER - R USER - G USER - B ▲▼: MOVE ◄►: SELECT MENU : EXIT NATURAL...
  • Page 28: The Sound Setup Menu

    The SOUND SETUP Menu The SOUND SETUP Menu provides access to the following menus: ▲▼: MOVE The SOUND SETUP menu includes the following options: BASS Controls the relative intensity of lower-pitched sounds. TREBLE Controls the relative intensity of higher-pitched sounds. BALANCE Adjusts the relative volume of the speakers in a multiple- speaker system.
  • Page 29: The Osd Setup Menu

    The OSD SETUP Menu The OSD TIME Menu provides access to the following menus: The OSD TIME menu includes the following options: LANGUAGES Allows selection of the languages used on all the on-screen menus. OSD TIMEOUT Allows selection of the display time of the on-screen menu. TRANSPARENCY Controls the translucence of the on-screen menu’s background.
  • Page 30: Technical Information

    4 Technical Information Preset Mode Timing Chart The screen image has been optimized during manufacture for the display modes listed below. Video signal: (IBM PC/AT) Dot X Line 640 x 350 720 x 400 640 x 480 800 x 600 1024 x 768 1280 x 1024 1600 x 1200...
  • Page 31: Dvi Connector Pin Assignment

    DVI Connector PIN Assignment DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 shield DDC Clock DDC Data Analog Vertical Sync TMDS Data 1- TMDS Data 1+ TMDS Data 1/3 shield +5V Power DESCRIPTION Hot Plug Detect TMDS Data 0- TMDS Data 0+ TMDS Data 0/5 shield Clock shield...
  • Page 32: D-Sub Connector Pin Assignment

    D-SUB Connector PIN Assignment Xerox© LCD Monitor User’s Manual Technical Information DESCRIPTION Green Blue Ground Self Test Red Ground Green Ground Blue Ground 5 VDC Ground Ground SDA (FOR DDC) H. Sync V. Sync SCL (FOR DDC)
  • Page 33: Plug And Play

    Plug and Play This monitor conforms to the VESA DDC (Display Data Channel) standard, which means that when it is used with a DDC compatible video card, the monitor is easier to set up. With VESA DDC 1/2B, when the monitor is turned on, it will automatically notify a windows 9X/2000/XP host computer of its scanning frequencies, capabilities and characteristics.
  • Page 34: Troubleshooting

    Troubleshooting Before consulting service personnel, check the following chart for a possible cause and solution to the trouble you are experiencing. Monitor will not turn on No picture • Make sure the power cord is plugged in. • Check the signal cable connecting the LCD monitor •...
  • Page 35: Specifications

    Panel Size 23” WIDE TFT LCD Brightness Contrast Ratio 800:1 Dot Pitch 0.258mm x 0.258mm 1920x1200 Optional DVI-D x1/ D-SUBx1/ AUDIO IN x2/AUIDO OUT x1 AC100-240V, 50-60Hz 542x438.8x210 mm V type Xerox© LCD Monitor User’s Manual XM9-23w...
  • Page 36: Authorized Service Center

    Hours: 8AM ~ 6PM - Central Time EUROPE AUTHORIZED SERVICE CENTER CONTACTS: XOAL BVBA RAKETSRAAT 100 B-1130 BRUSSEL BELGIUM E-EMAIL: rma@proview-repair.com http://www.proview-repair.com Hotline: 00800 00 88 77 66 Fax: +32-2-725-2513 Hours: 10AM ~ 12PM and 2PM ~ 5PM Monday through Friday...
