Rear Panel Components

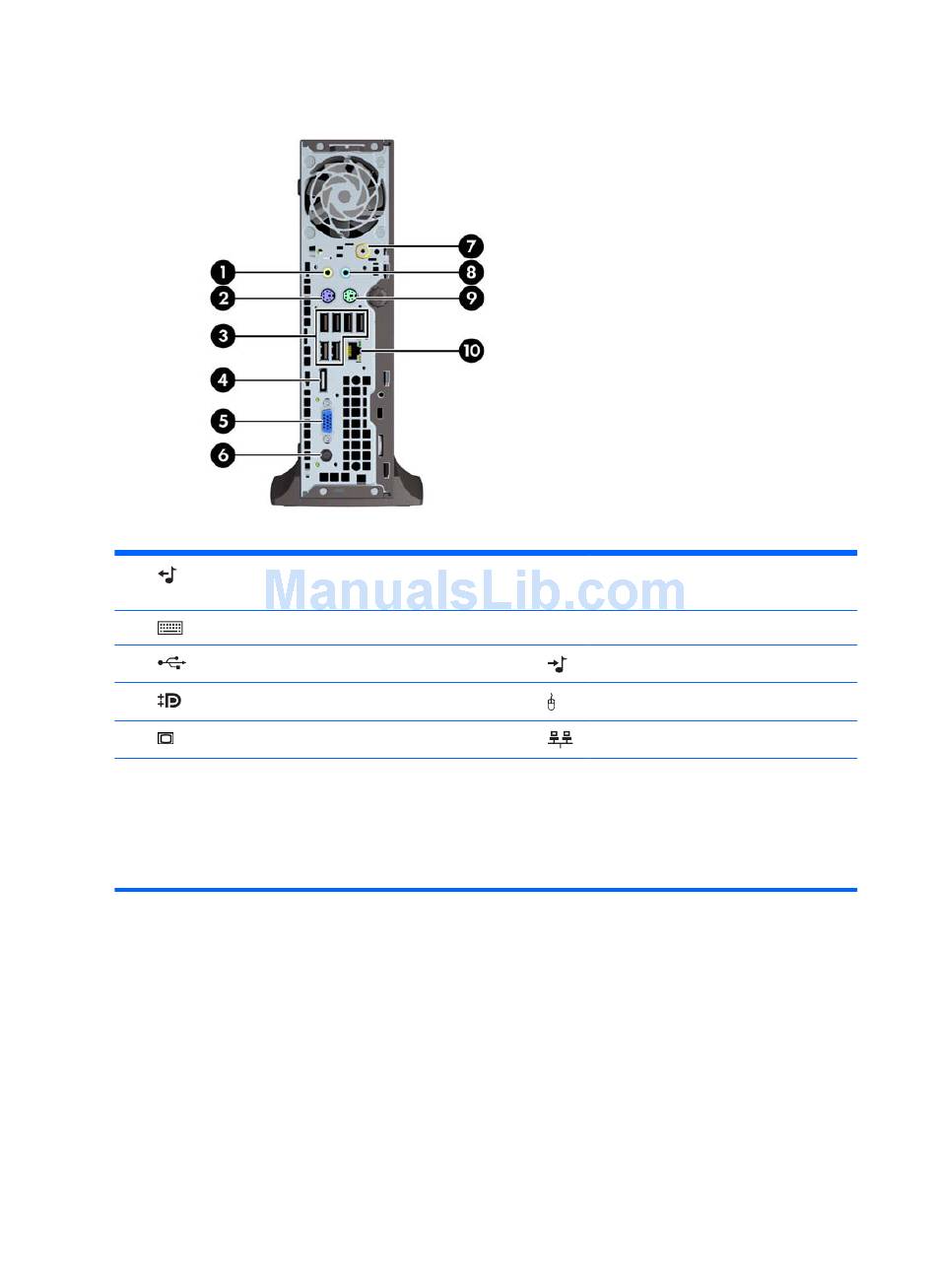

Figure 1-3
Table 1-2 Rear Panel Components
1 Line-Out Connector for powered audio devices
(green)
2 PS/2 Keyboard Connector (purple)
3 Universal Serial Bus (USB) ports
4 DisplayPort Monitor Connector
5 VGA Monitor Connector
NOTE:
On some models the optional TV tuner is replaced by an optional wireless antenna. On other models, there
are no optional components in this location.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-clicking
the Realtek HD Audio Manager icon in the Windows taskbar.
Rear Panel Components
6 Power Cord Connector
7 TV Tuner (optional)
8 Line-In Audio Connector (blue)
9 PS/2 Mouse Connector (green)
10 RJ-45 Network Connector
